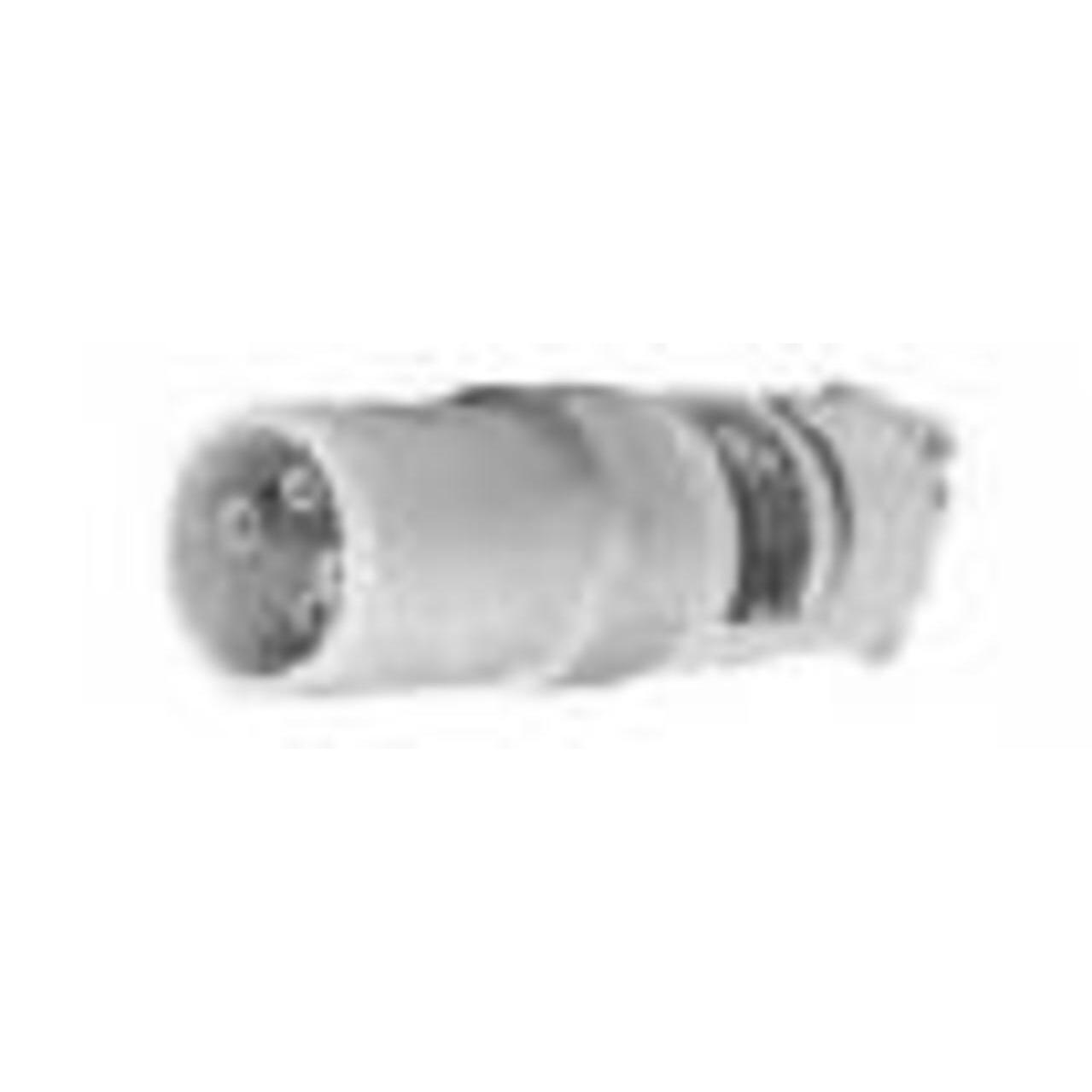

CPH6034BC - Appleton - 60A 125/250V 4-Pole 3-Wire Pin & Sleeve Plug
The 60 A version of the CPH plug, built for the same 3‑phase, 4‑wire configurations but capable of handling higher current loads. It shares the copper-free aluminum housing, rugged ratings, pressure wire terminals, and Slide‑Lok® safety features of the 30 A model. It meets similar NEMA and UL certifications, making it ideal for heavy-duty industrial use (source inferred from series consistency).
GENERAL SPECIFICATIONS
-
- Hazardous Area Classification
- 30 and 60 Amp CES: Class I, Division 1 and 2, Groups C, D; 30 Amp CESD: Class I, Division 1 and 2, Groups C, D; 60 Amp CESD: Class I, Division 1 and 2, Group D
- Amperage
- 30 or 60
- Voltage
- 125-250 Vac or 480 Vac
- Number of Poles
- 3 or 4
- Number of Wires
- 2 or 3
- Horsepower Ratings
- 1-1/2, 3 or 5
- Plug Cable Diameter
- 30 Amp: 0.500 to 1.125#8221;, 60 Amp: 0.500 to 1.375#8221;
- Mounting Box Entries
- Dead-End
- Materials and Finishes
- Receptacles, covers and caps are copperfree (4/10 of 1% max.) aluminum with ceramic burnished. Mounting box is malleable iron with triple-coat (1) zinc electroplate, (2) chromate and (3) epoxy powder coat finish. Insulating blocks are fiber glass reinfor
