Description

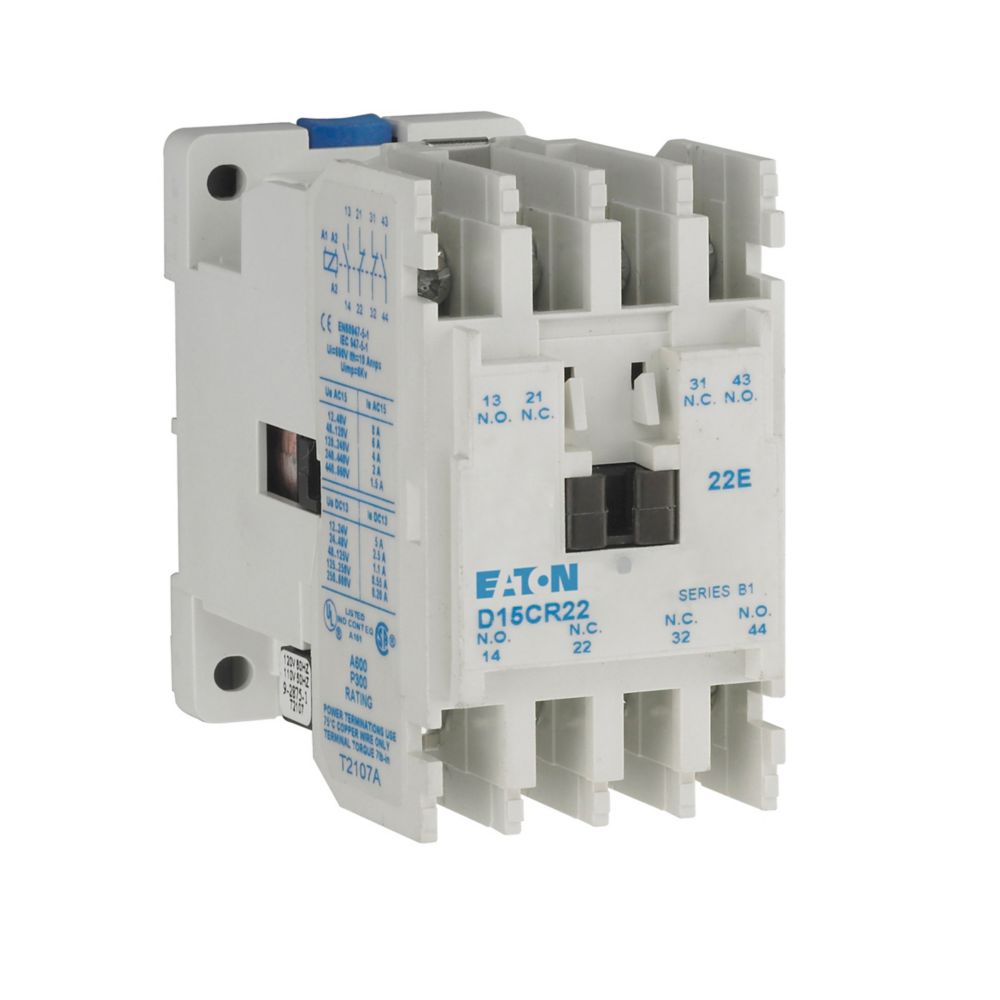

D15CR22AB - Eaton Cutler Hammer - 60A 110/120V Nema Machine Tool Relay
Eaton NEMA machine tool relay, D15 Series, Freedom, 600V Multi-pole Relay, Four-pole, 110/120V coil voltage, 50/60 Hz, 2NO-2NC contact configuration, 60A make, 6.0A break contact rating, 10A rated operational current.
GENERAL SPECIFICATIONS
| Product Name |
Eaton NEMA machine tool relay
|
| Catalog Number |
D15CR22AB
|
| UPC |
782113807157
|
| Product Length/Depth |
3.79999995 in
|
| Product Height |
2.59999991 in
|
| Product Width |
4 in
|
| Product Weight |
0.94999999 lb
|
| Certifications |
UL Listed
CSA Certified |
| Product Type |
Machine tool relay
|
PRODUCT SPECIFICATIONS
| Type |
Freedom 600V multi-pole
|
| Frequency rating |
50-60 Hz
|
| Number of poles |
Four-pole
|
| Coil voltage |
110/120 V
|
| Contact configuration |
2 NO-2 NC
|
| Contact rating |
60 A make, 6 A break
|
| Series |
D15
|
PRODUCT DATASHEET
