Description

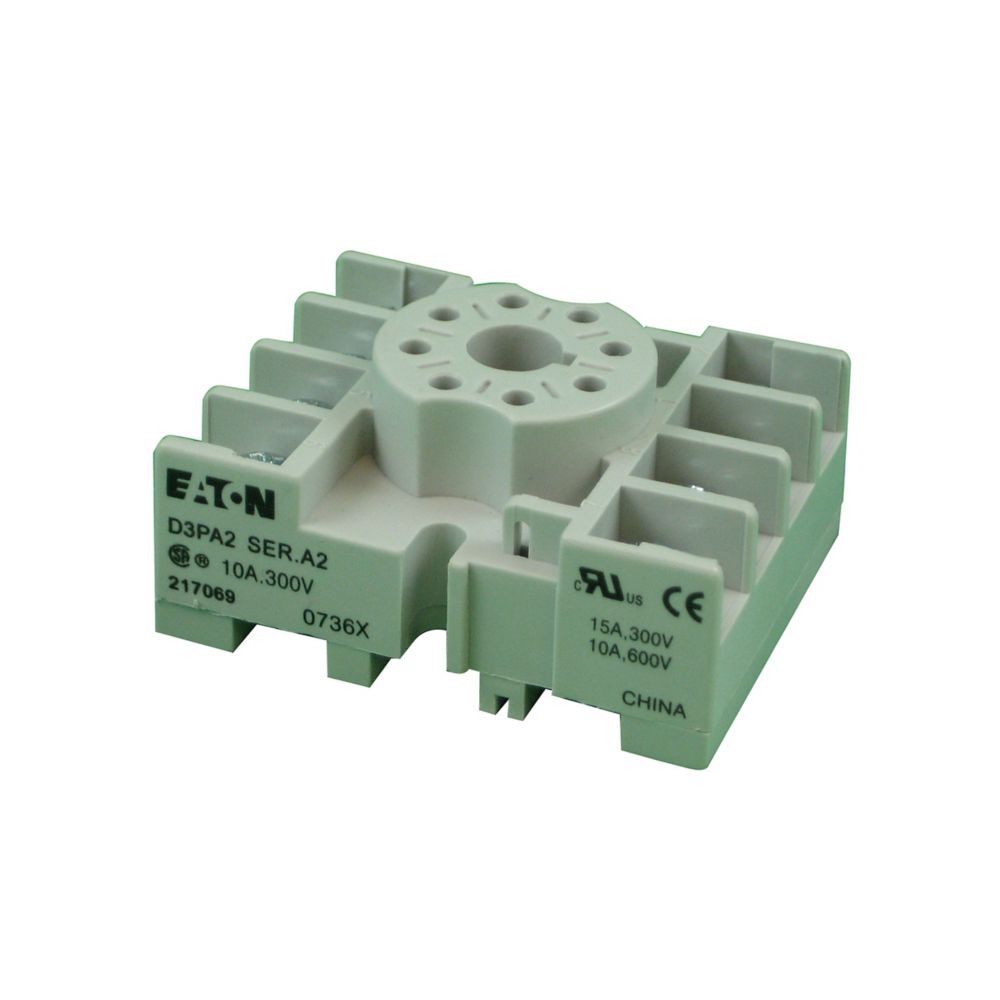

D3PA2 - Eaton Cutler Hammer - General-Purpose Relay
D3 Series Socket, Used with D3PR2 and D3PF2 Relays, TRNP Timing Relays, TMR5 and TRM6 Time Delay Relays, DIN rail/panel mount, Screw clamping wire connection, QTY: 10, 8 pins.
GENERAL SPECIFICATIONS
| Product Name |
Eaton General-purpose relay
|
| Catalog Number |
D3PA2
|
| UPC |
782114159767
|
| Product Length/Depth |
2 in
|
| Product Height |
0.8 in
|
| Product Width |
1.6 in
|
| Product Weight |
0.07 lb
|
| Compliances |
RoHS Compliant
CE Marked |
| Certifications |
CSA Certified
UL Listed cRUus |
| Product Type |
General-purpose relay
|
PRODUCT SPECIFICATIONS
| Type |
D3 Series Socket
|
| Mounting |
DIN rail, screw
|
| Rated operational current |
10/15A nominal
|
| Used with |
D3PR2 and D3PF2 relays, TMR5 and TRM6 time delay relays, and TRNP timing relays
|
| Nominal voltage |
300/600 V
|
| Quantity |
10
|
| Series |
D3
|
| Wiring connection |
Screw clamping
|
