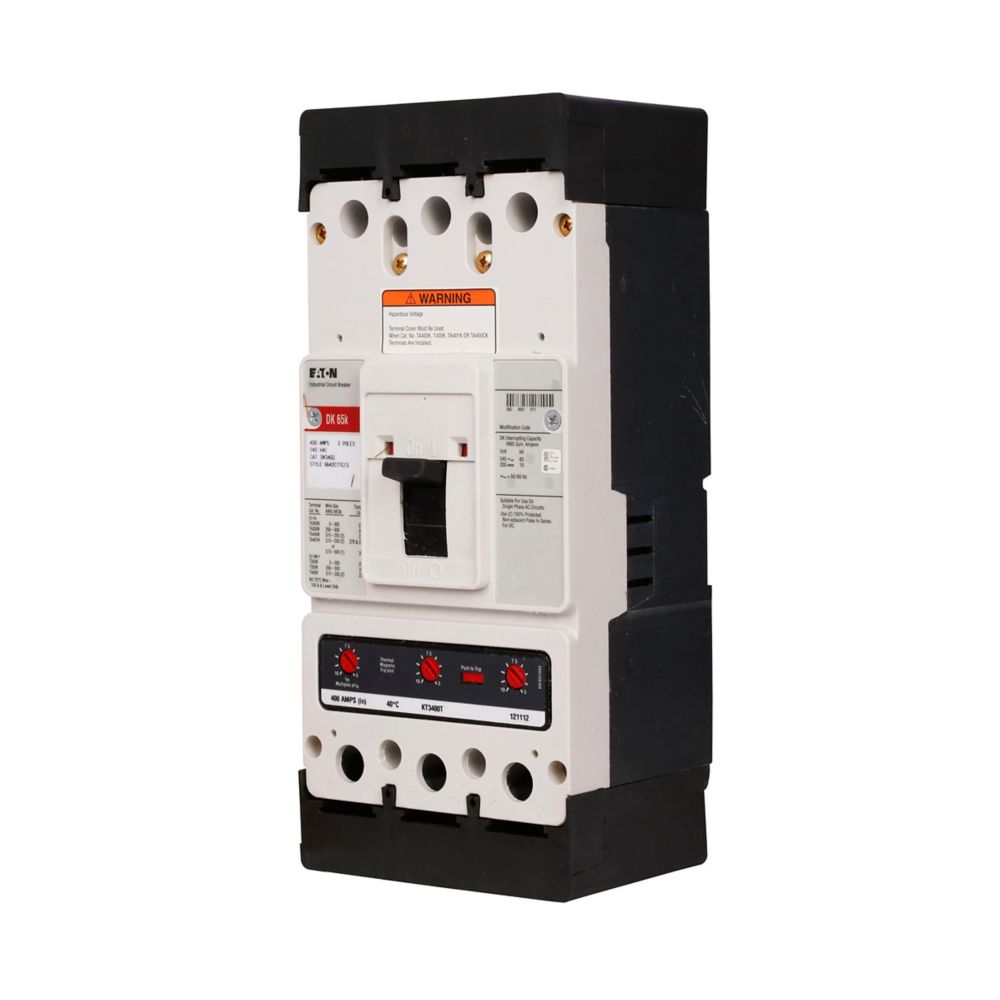

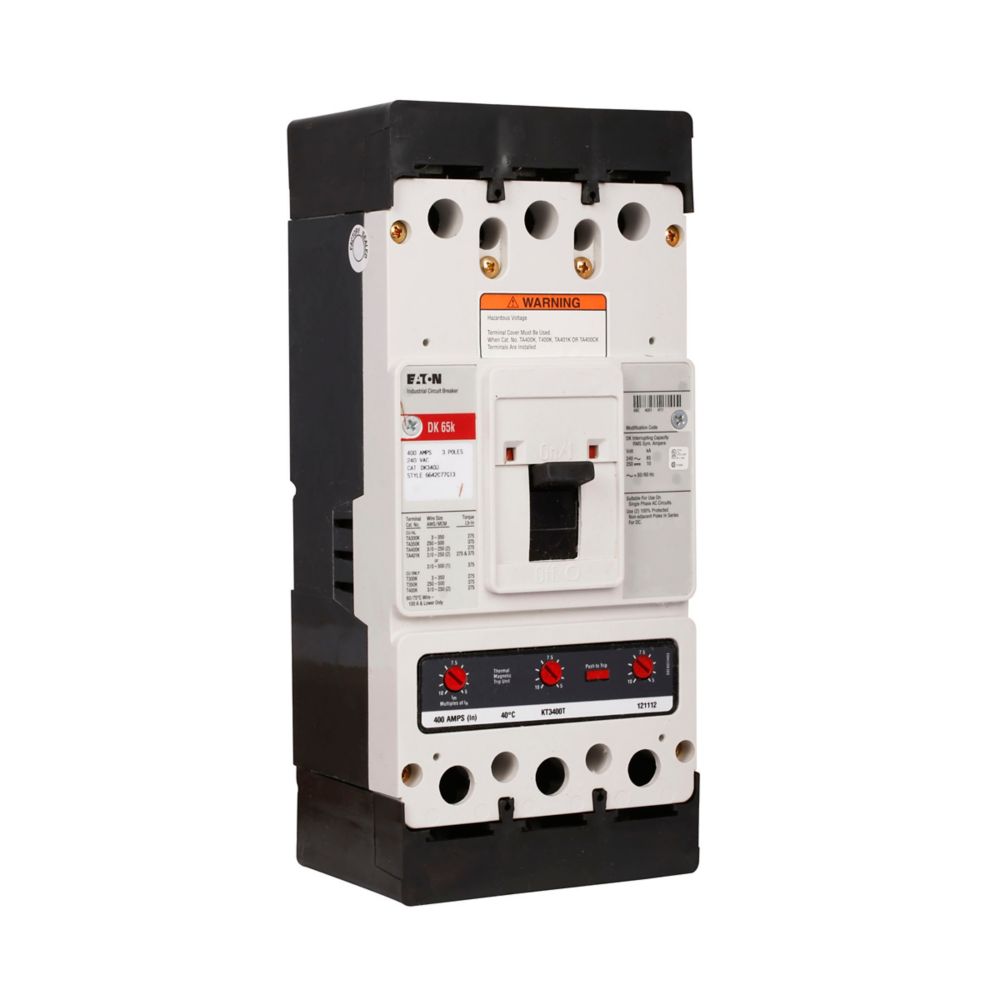

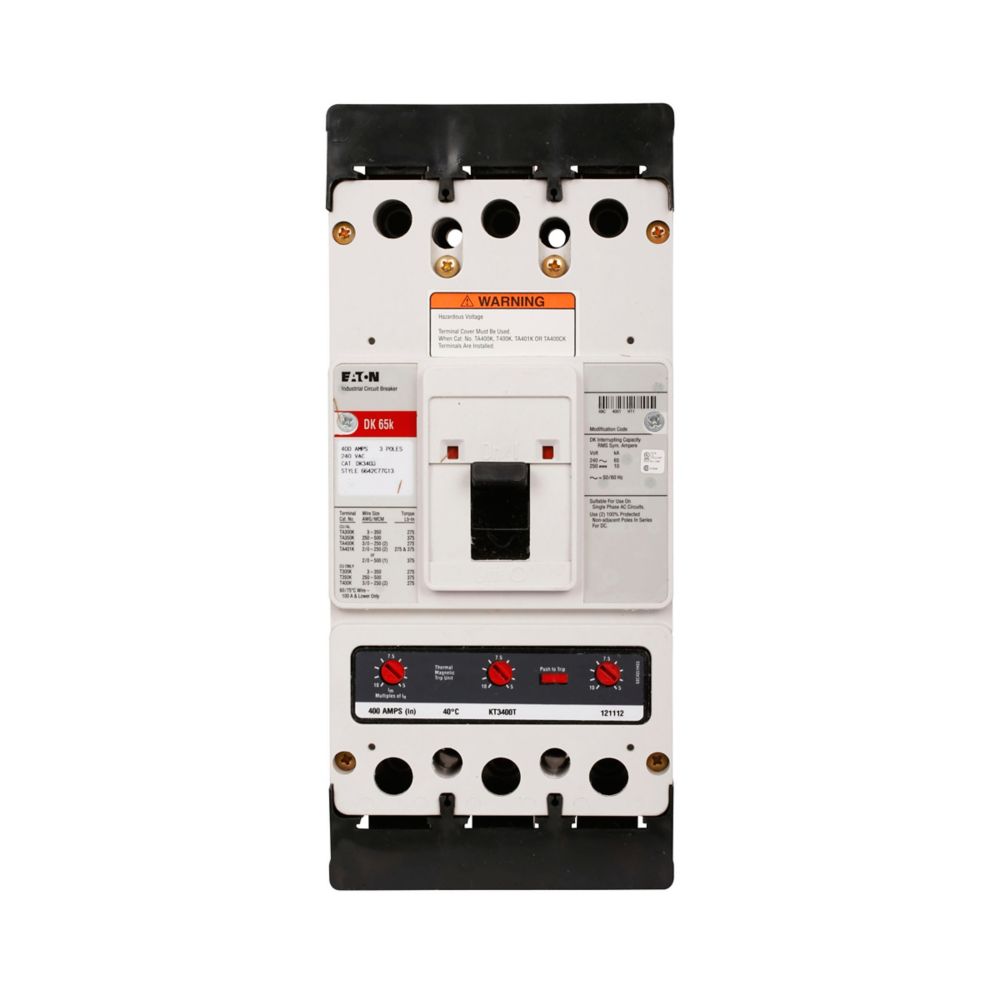

DK3400 - Eaton Cutler-Hammer 400 Amp 3 Pole 240 Volt Molded Case Circuit Breakers
Eaton Series C complete molded case circuit breaker, K-frame, DK, Complete breaker, Fixed thermal, Fixed magnetic trip, Three-pole, 400 A, 240 Vac, 250 Vdc, 65 kAIC at 240 Vac, 10 kAIC at 250 Vdc, Aluminum, Line and load, 50/60 Hz.
GENERAL SPECIFICATIONS
| PRODUCT NAME | Eaton Series C complete molded Case circuit breaker |
| CATALOG NUMBER | DK3400 |
| UPC | 786679044155 |
| PRODUCT LENGTH/DEPTH | 14 in |
| PRODUCT HEIGHT | 6.5 in |
| PRODUCT WIDTH | 7 in |
| PRODUCT WEIGHT | 12.6 lb |
| CERTIFICATIONS | UL Listed |
| Product Type |
Molded case circuit breaker
|
Product specifications
| Amperage Rating |
400 A
|
| Voltage rating |
240 Vac, 250 Vdc
|
| Trip Type |
T186
|
| Circuit breaker type |
DK
|
| Circuit breaker frame type |
Complete breaker
|
| Series |
Series C
|
| Terminals |
Line and load
|
| Frame |
K
|
| Frequency rating |
50 to 60 Hz
|
| Terminal material |
Aluminum
|
| Interrupt rating |
10 kAIC at 250 Vdc
65 kAIC at 240 Vac |
| Number of poles |
Three-pole
|
