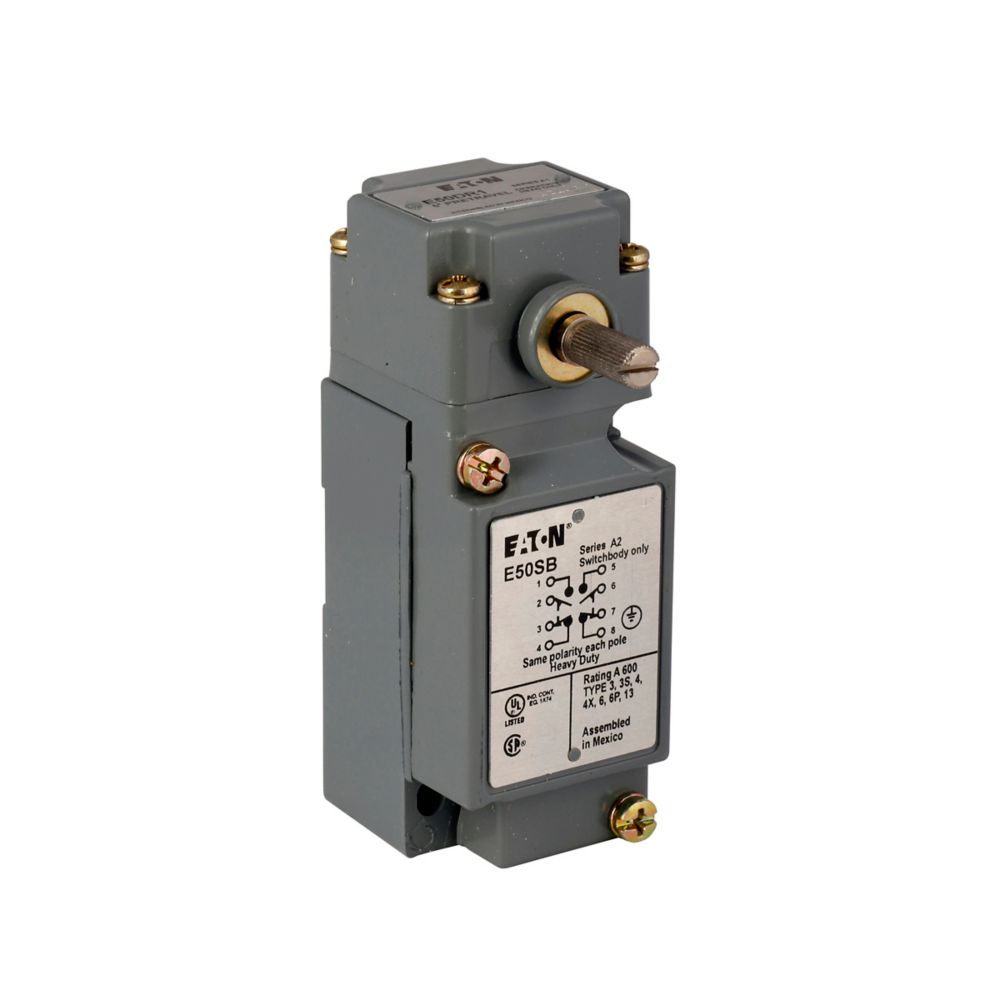

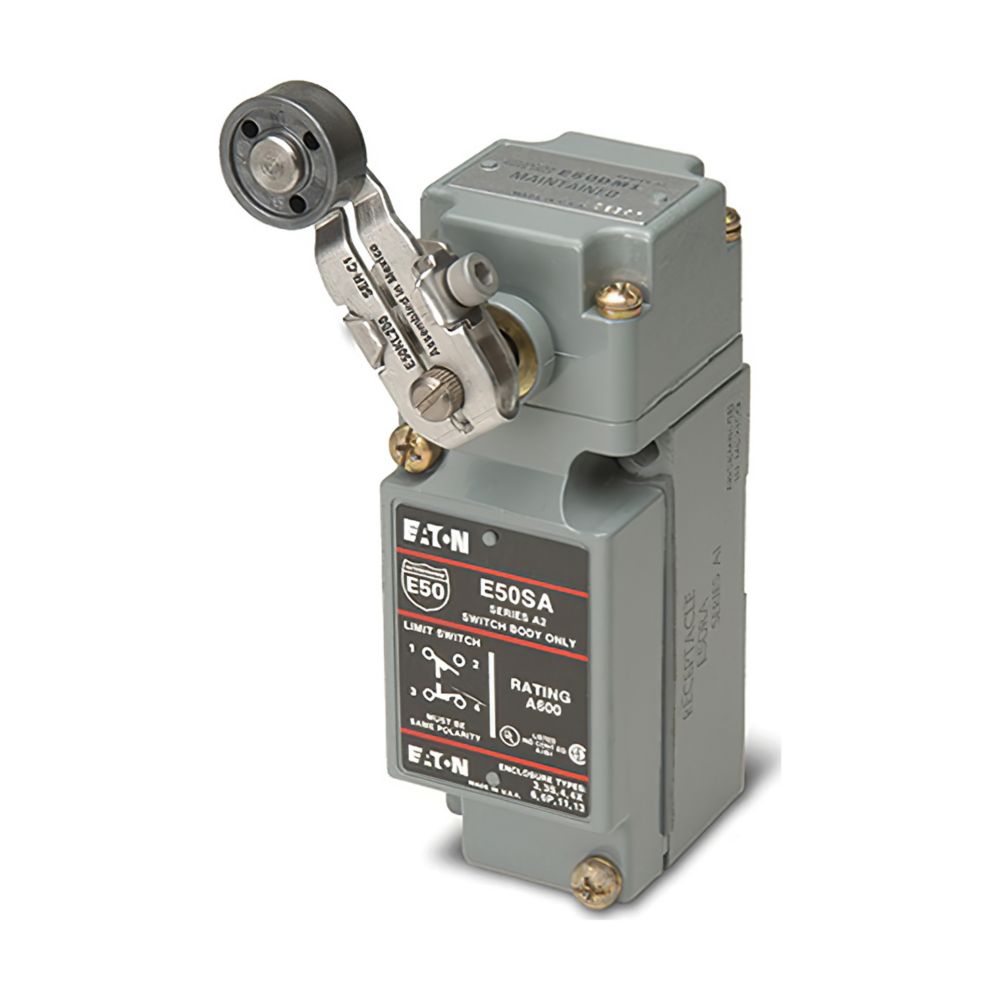

E50BR1 - Eaton Cutler Hammer - E50 Nema Heavy Duty Plug-In Limit Switch
The Eaton E50BR1 is a fully assembled heavy-duty plug-in limit switch featuring a side rotary, momentary spring-return actuator paired with a 2 NO / 2 NC contact block. It’s housed in a die-cast zinc body with screw terminals, and rated for 10 A at 240 VAC or 1 A at 250 VDC, built to withstand harsh environments (NEMA 1/3/3S/4/4X/6/6P/13, IP67).
GENERAL SPECIFICATIONS
| Product Name |
Eaton E50 NEMA heavy duty plug-in limit switch
|
| Catalog Number |
E50BR1
|
| UPC |
782113290553
|
| Product Length/Depth |
4.22 in
|
| Product Height |
2.25 in
|
| Product Width |
1.54 in
|
| Product Weight |
1.1 lb
|
| Compliances |
RoHS Compliant
CE Marked |
| Certifications |
CSA Certified
UL Listed |
PRODUCT SPECIFICATIONS
| Type |
Assembly
|
| Contact Rating |
10A at 240 Vac, 1A at 250 Vdc
|
| Enclosure material |
Die cast zinc
|
| Actuator |
Side rotary, momentary spring return
|
| Connection |
Screw terminal
|
| Contact configuration |
2 NO-2 NC
|
| Series |
E50
|
| Operating temperature - max |
200 °F
|
| Operating temperature - min |
10 °F
|
| Environmental rating |
NEMA 1, NEMA 3, NEMA 3S, NEMA 4, NEMA 4X, NEMA 6, NEMA 6P, NEMA 13, IP67
|
| Maximum AC current |
10 A continuous
|
| Maximum DC current |
1 A
|
