Description

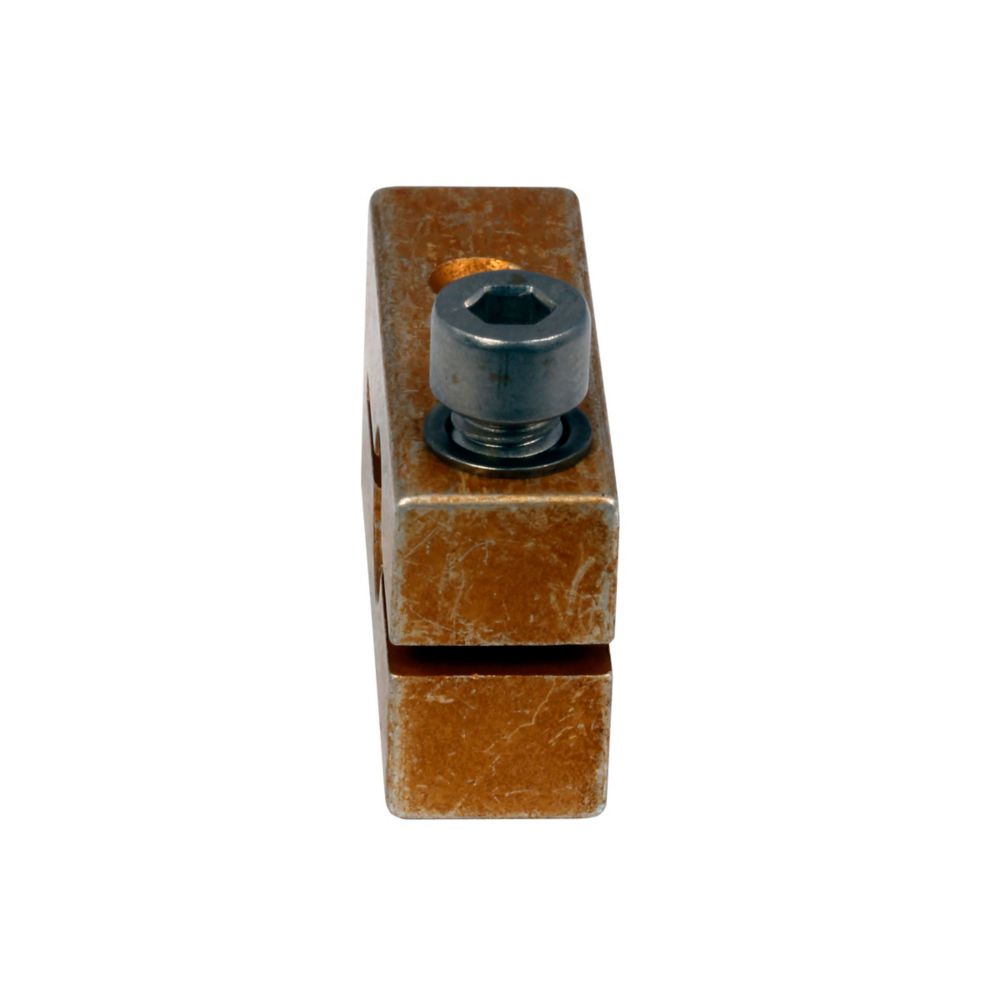

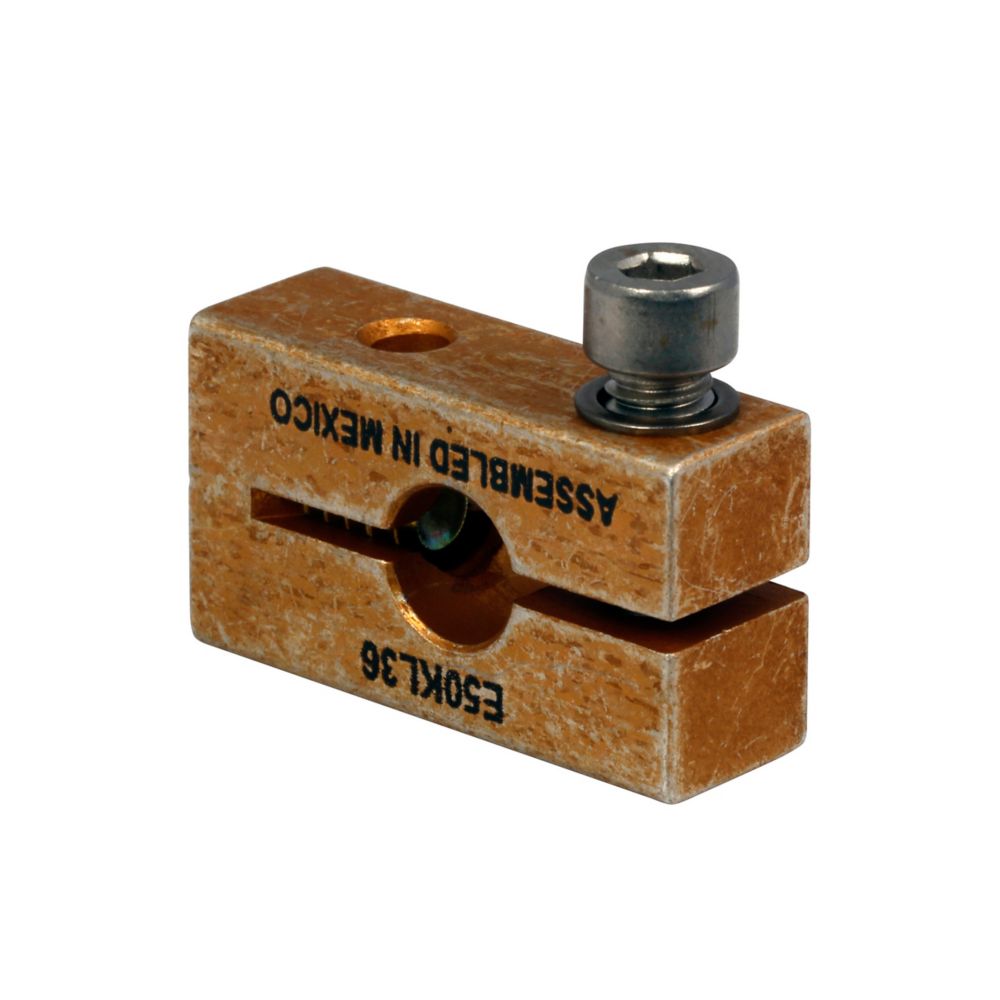

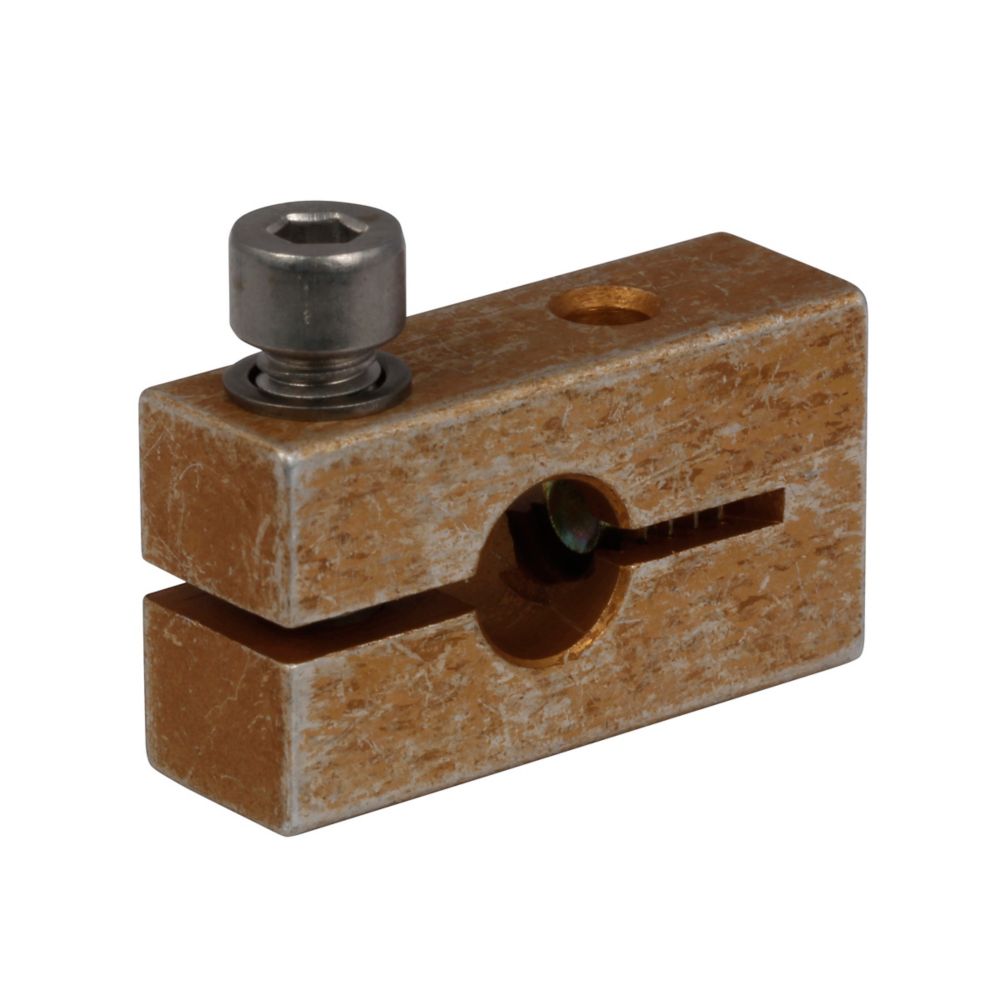

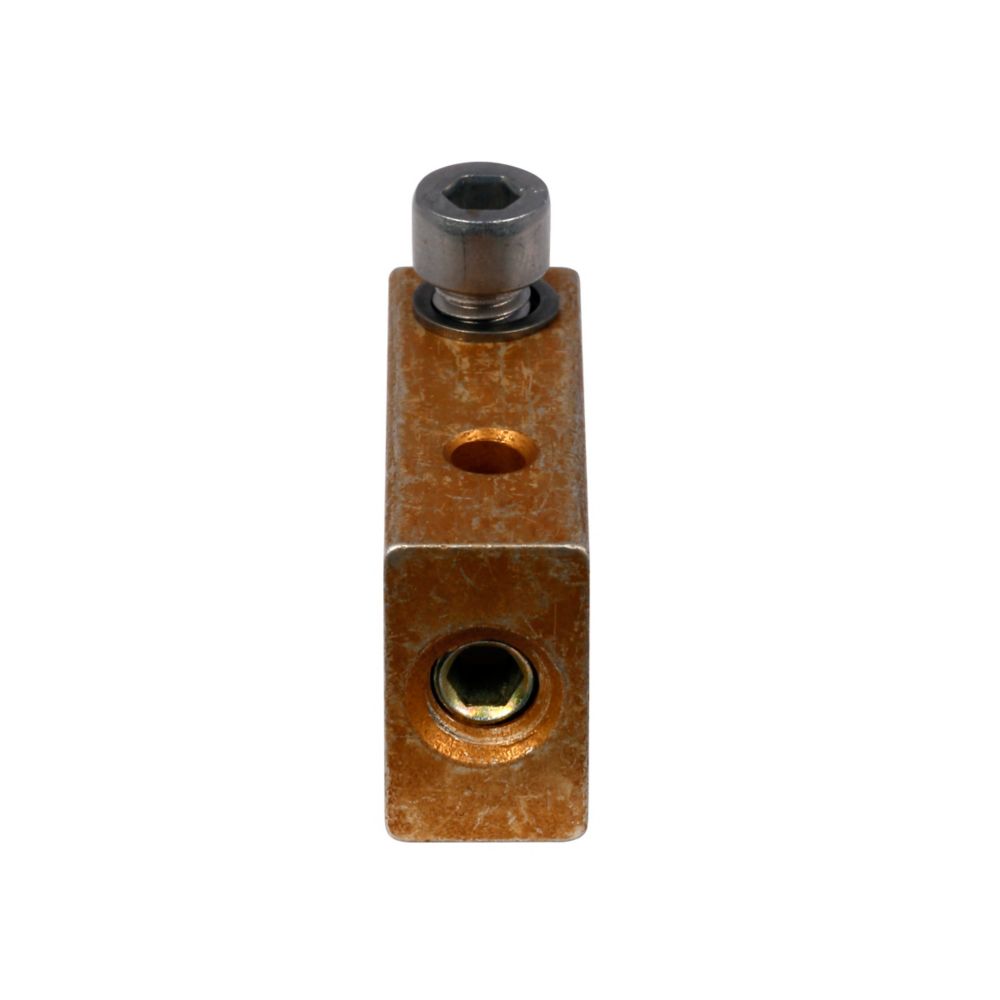

E50KL36 - Eaton Cutler Hammer - E50 Nema Heavy Duty Plug-In Limit Switch Operator
The E50KL36 is a compact rotary lever accessory with a rod clamp, designed for 0.12-inch diameter rods and constructed from stainless steel. It delivers durable performance in temperatures spanning –10 °F to 200 °F and carries environmental ratings up to NEMA 6P and IP67, including UL, CSA, and CE certifications.
GENERAL SPECIFICATIONS
| Product Name |
Eaton E50 NEMA heavy duty plug-in limit switch operator
|
| Catalog Number |
E50KL36
|
| UPC |
782113138282
|
| Product Length/Depth |
0.64 in
|
| Product Height |
0.38 in
|
| Product Width |
1.12 in
|
| Product Weight |
0.15 lb
|
| Compliances |
RoHS Compliant
CE Marked |
| Certifications |
UL Listed
CSA Certified CE |
| Product Type |
Heavy-duty plug-in limit switch accessory
|
PRODUCT SPECIFICATIONS
| Used with |
Used with 0.12 (3.2) diameter rods
|
| Type |
Operating Lever
|
| Cable type |
SOOW-A
|
| Actuator |
Clamp only
|
| Series |
E50
|
| Switch type |
Clamp for side rotary rod levers
|
| Operating temperature - max |
200 °F
|
| Operating temperature - min |
10 °F
|
| Environmental rating |
NEMA 1, NEMA 3, NEMA 3S, NEMA 4, NEMA 4X, NEMA 6, NEMA 6P, NEMA 13, IP67
|
| Material |
Stainless steel
Clamp: Aluminum |
