Description

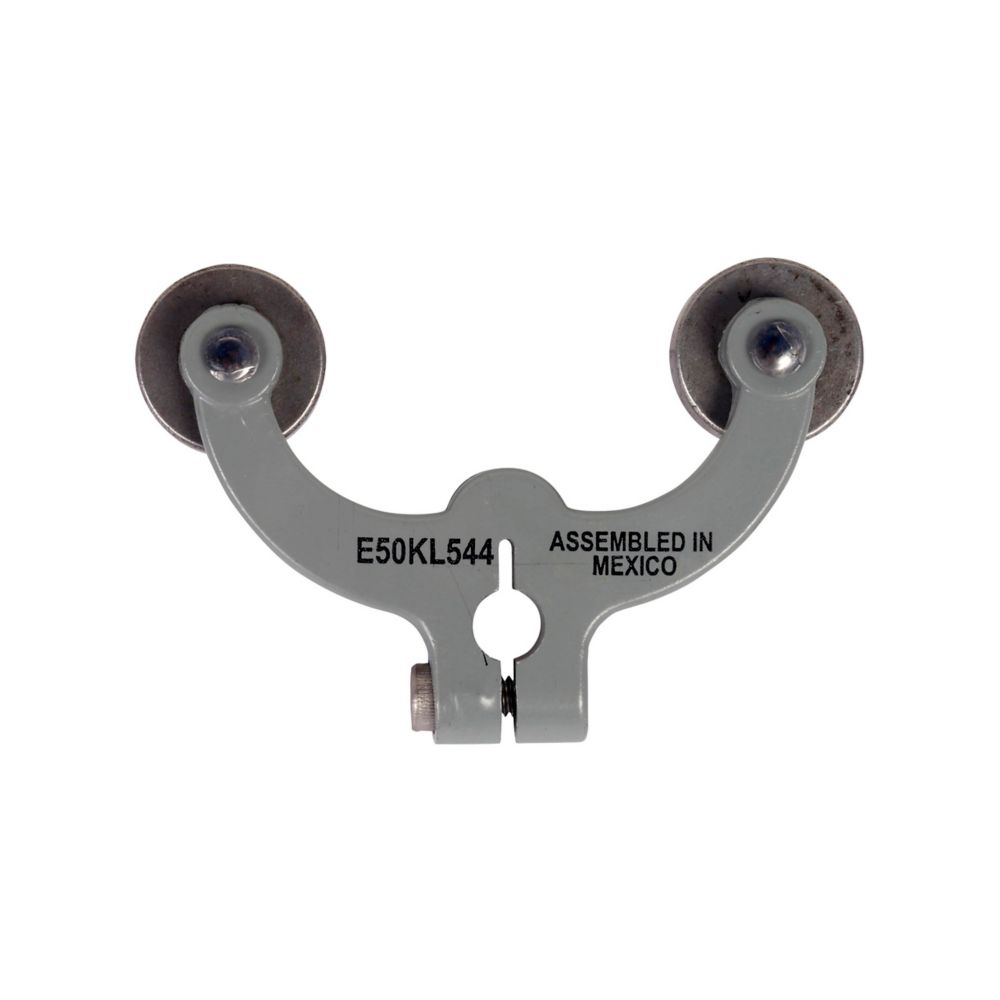

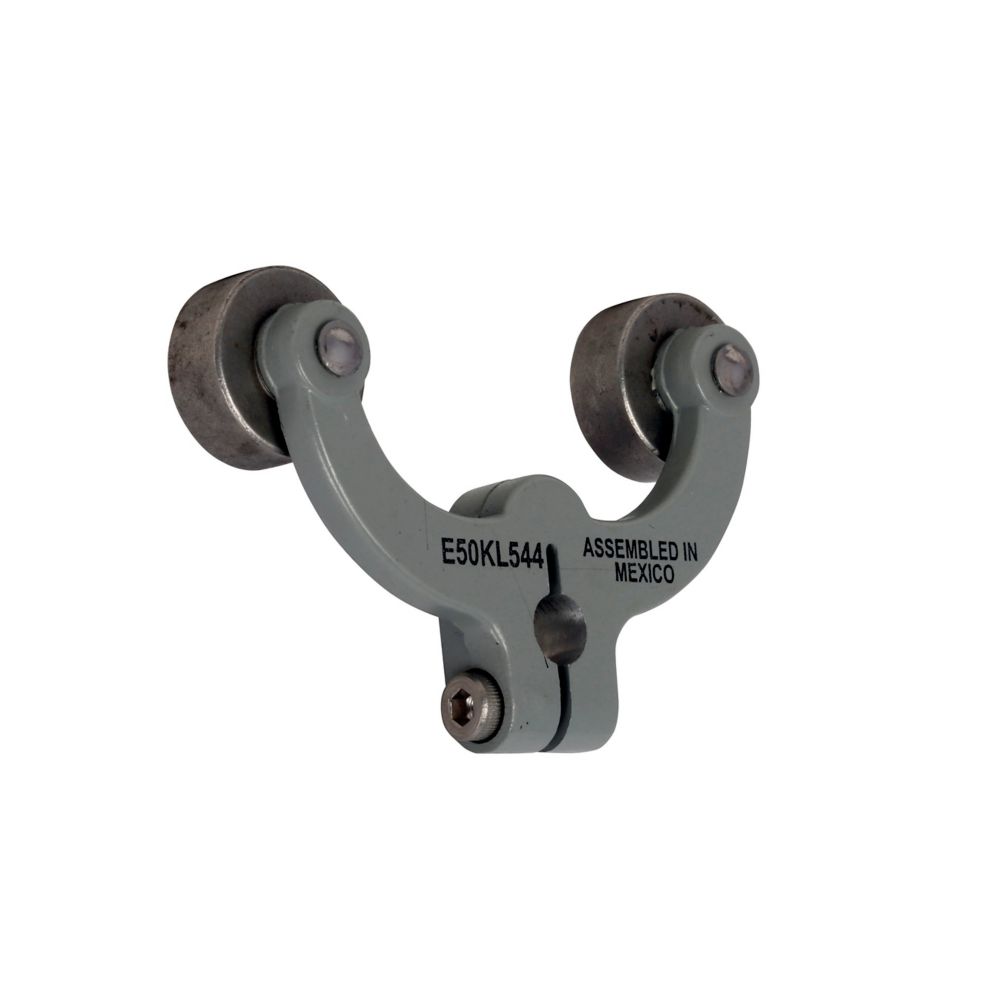

E50KL544 - Eaton Cutler Hammer - E50 Nema Heavy Duty Plug-In Limit Switch Operator
E50 NEMA Limit Switch,Lever,Rotary lever,fork,1.1 inch length Die cast Zinc lever,Metal rollers 0.75 inch diameter 0.32 inch width,both rollers same side of fork, 14-250F(-10-121C),UL,CSA,CE.
GENERAL SPECIFICATIONS
| Product Name |
Eaton E50 NEMA heavy duty plug-in limit switch operator
|
| Catalog Number |
E50KL544
|
| UPC |
782113308708
|
| Product Length/Depth |
2.87 in
|
| Product Height |
0.62 in
|
| Product Width |
1.92 in
|
| Product Weight |
0.15 lb
|
| Compliances |
RoHS Compliant
CE Marked |
| Certifications |
UL Listed
CSA Certified CE |
| Product Type |
Heavy-duty plug-in limit switch accessory
|
PRODUCT SPECIFICATIONS
| Used with |
Used with side rotary
|
| Special features |
Fork lever
|
| Type |
Operating Lever
|
| Cable type |
SOOW-A
|
| Actuator |
Roller lever
|
| Series |
E50
|
| Switch type |
Lever for side rotary switches
|
| Operating temperature - max |
200 °F
|
| Operating temperature - min |
10 °F
|
| Environmental rating |
NEMA 1, NEMA 3, NEMA 3S, NEMA 4, NEMA 4X, NEMA 6, NEMA 6P, NEMA 13, IP67
|
| Material |
Metal
Roller: Metal Lever: Die cast Zinc |
