E50KL556 - Eaton Cutler Hammer - E50 Nema Heavy Duty Plug-In Limit Switch Operator

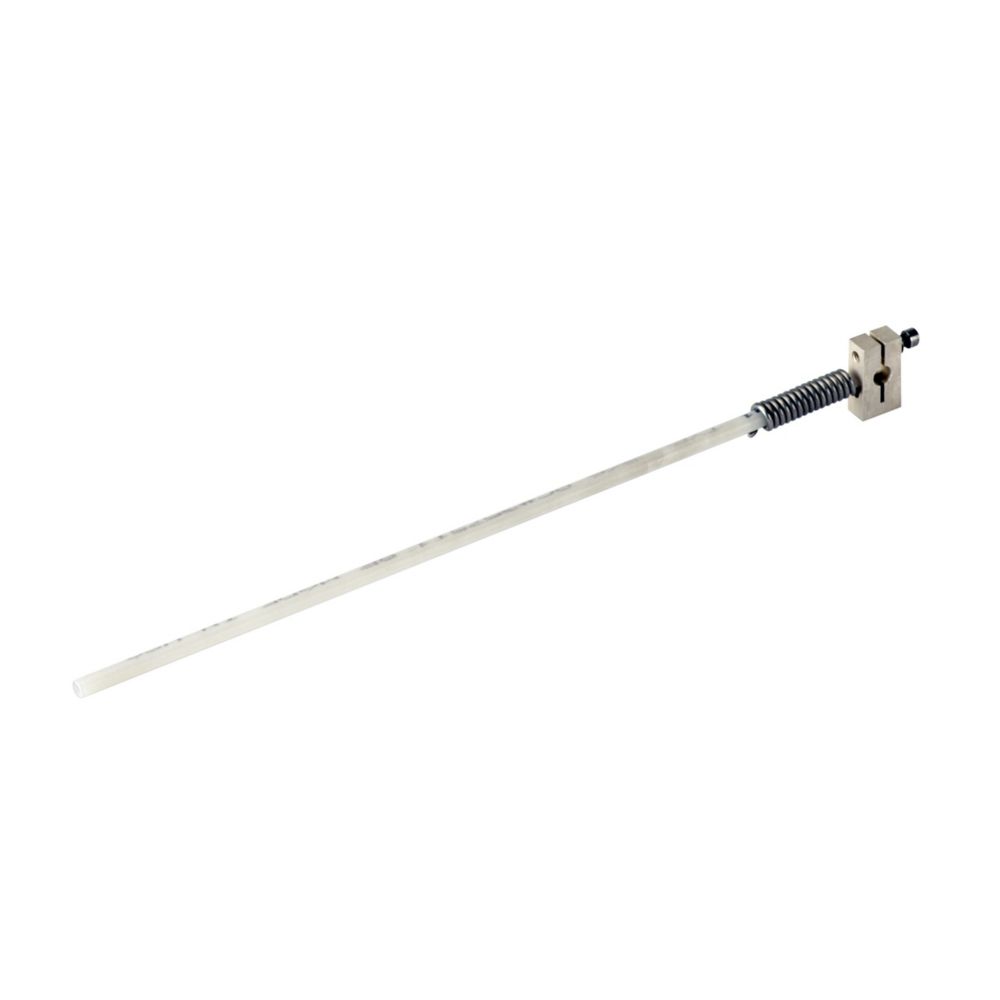

The E50KL556 is a long spring rod lever accessory (12.44″ length, 0.38″ height, 1.12″ width) with a nylon spring-rod design. Designed for temperature extremes from 10–200 °F and rated to NEMA 1, 3, 3S, 4X, 6P, 13, and IP67 standards, it offers precision actuation for E50 side-rotary switches. Lightweight at 0.3 lb and backed by UL, CSA, and CE certifications, it’s built for demanding industrial installations.
GENERAL SPECIFICATIONS
| Product Name |
Eaton E50 NEMA heavy-duty plug-in limit switch operator
|
| Catalog Number |
E50KL556
|
| UPC |
782113306070
|
| Product Length/Depth |
12.44 in
|
| Product Height |
0.38 in
|
| Product Width |
1.12 in
|
| Product Weight |
0.3 lb
|
| Compliances |
RoHS Compliant
CE Marked |
| Certifications |
UL Listed
CSA Certified CE |
| Product Type |
Heavy-duty plug-in limit switch accessory
|
PRODUCT SPECIFICATIONS
| Used with |
Used with side rotary
|
| Type |
Operating Lever
|
| Cable type |
SOOW-A
|
| Actuator |
Rod
|
| Series |
E50
|
| Switch type |
Lever for side rotary switches
|
| Operating temperature - max |
200 °F
|
| Operating temperature - min |
10 °F
|
| Environmental rating |
NEMA 1, NEMA 3, NEMA 3S, NEMA 4, NEMA 4X, NEMA 6, NEMA 6P, NEMA 13, IP67
|
| Material |
Nylon
Rod: nylon Clamp: Aluminum |
