Description

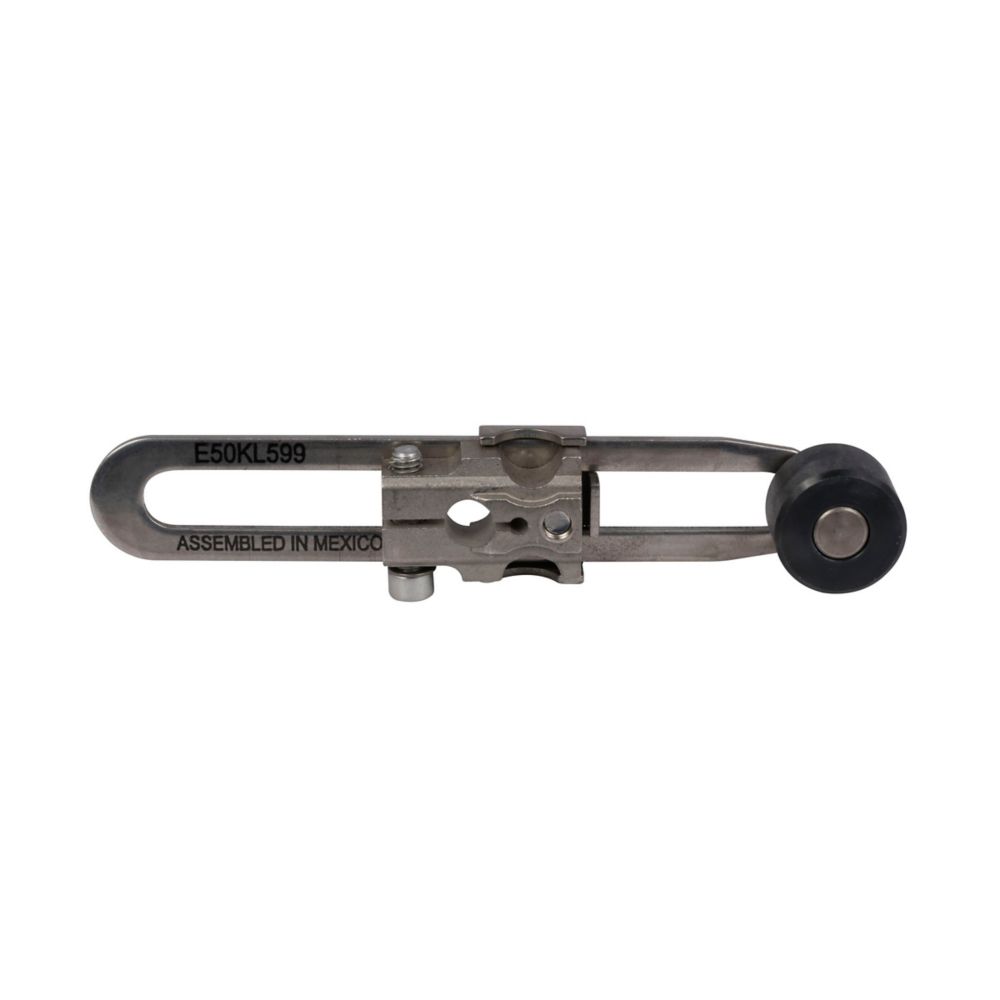

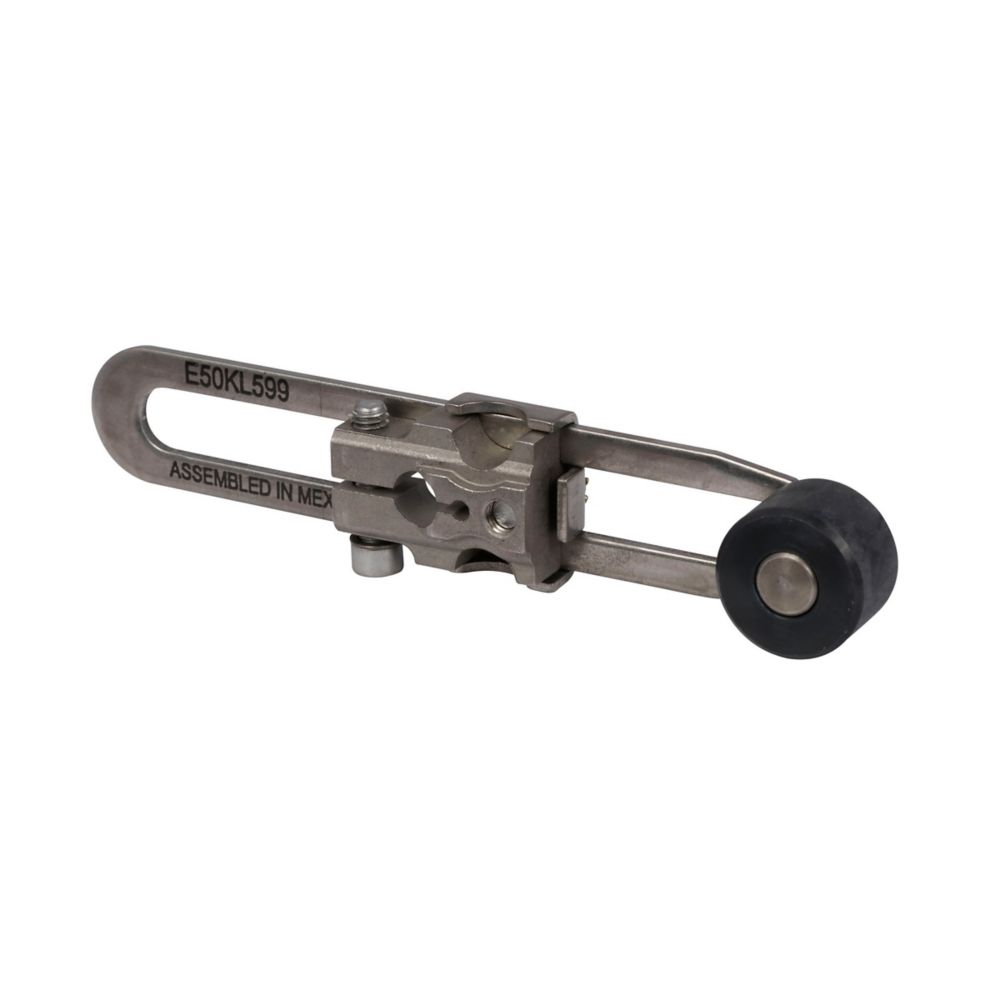

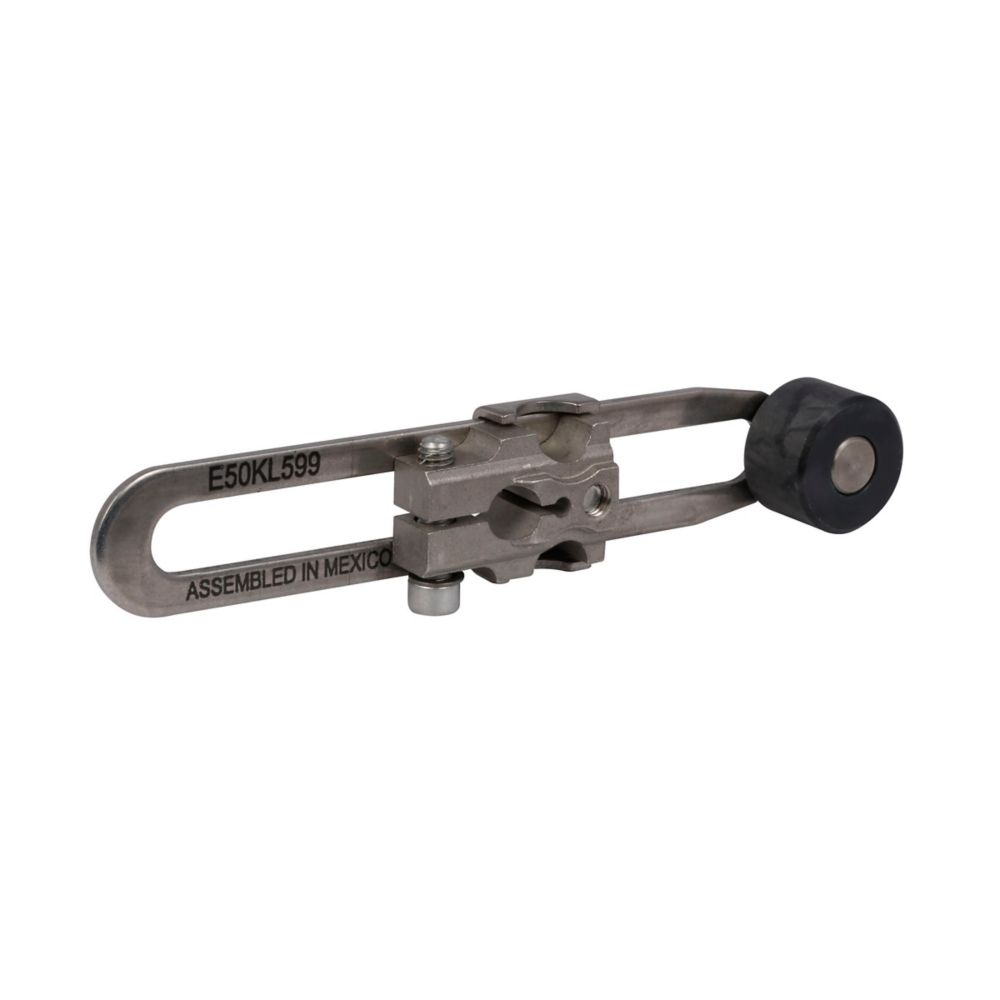

E50KL599 - Eaton Cutler Hammer - E50 Nema Heavy Duty Plug-In Limit Switch Operator
E50 NEMA Limit Switch,Lever,Rotary lever,adjustable,1.0 to 3.75 inch length Type 303 Stainless steel lever,Nylatron roller 0.75 inch diameter 0.5 inch width,14-250F(-10-121C),UL,CSA,CE.
GENERAL SPECIFICATIONS
| Product Name |
Eaton E50 NEMA heavy-duty plug-in limit switch operator
|
| Catalog Number |
E50KL599
|
| UPC |
782113302195
|
| Product Length/Depth |
4.6 in
|
| Product Height |
1.02 in
|
| Product Width |
0.75 in
|
| Product Weight |
0.15 lb
|
| Compliances |
RoHS Compliant
CE Marked |
| Certifications |
UL Listed
CSA Certified CE |
| Product Type |
Heavy duty plug-in limit switch accessory
|
PRODUCT SPECIFICATIONS
| Used with |
Used with side rotary
|
| Special features |
Adjustable length
|
| Type |
Operating Lever
|
| Cable type |
SOOW-A
|
| Actuator |
Roller lever
|
| Torque rating |
1.90 in-oz min return
|
| Series |
E50
|
| Switch type |
Lever for side rotary switches
|
| Operating temperature - max |
200 °F
|
| Operating temperature - min |
10 °F
|
| Environmental rating |
NEMA 1, NEMA 3, NEMA 3S, NEMA 4, NEMA 4X, NEMA 6, NEMA 6P, NEMA 13, IP67
|
| Material |
Nylatron
Roller: Nylatron Lever: Stainless steel |
| Size |
0.5 x 0.48 in
|
