Description

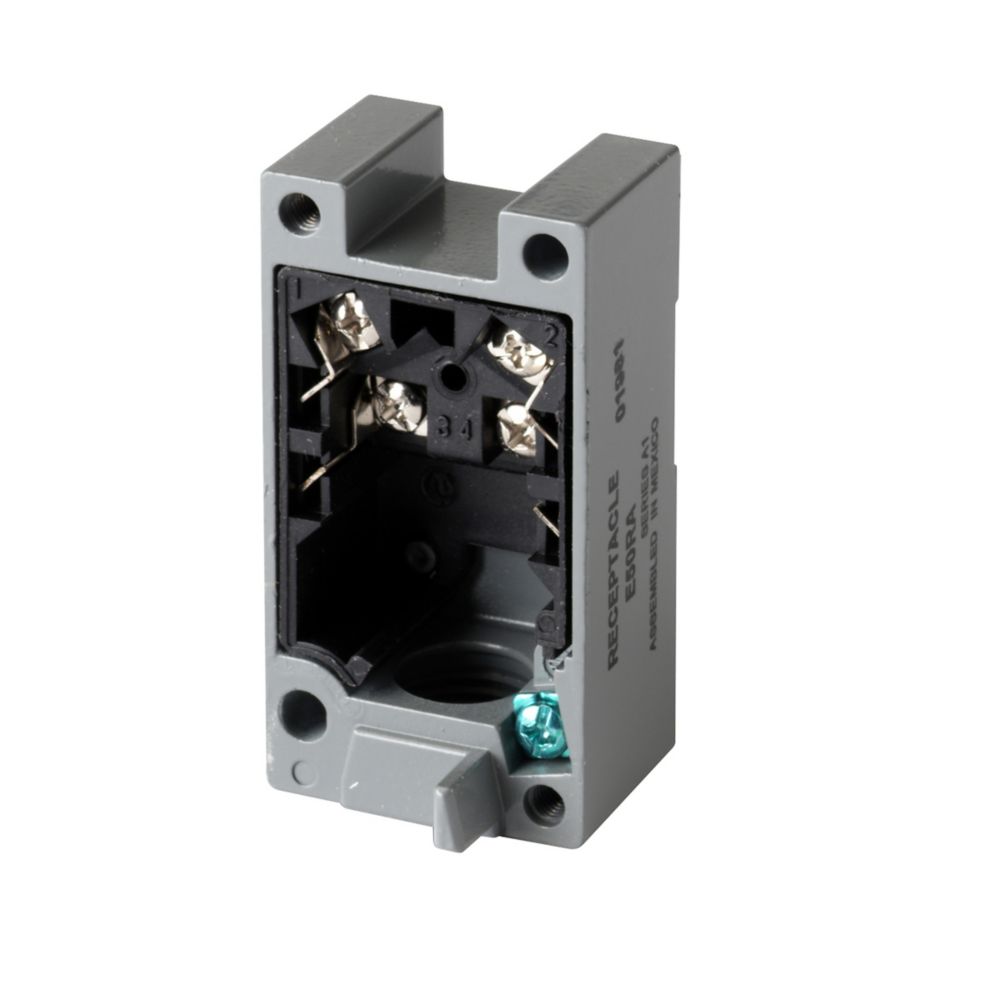

E50RA - Eaton Cutler Hammer - E50 Nema Heavy Duty Plug-In Limit Switch Receptable
The E50RA is a single-pole receptacle component of the E50 modular limit switch system, offering gravity-return functionality and both front and rear mounting options. Made of die-cast zinc and equipped with screw terminals, it operates within –40 °F to 250 °F and maintains NEMA 1/3/3S/4/4X/6/6P/13 plus IP67 ratings.
GENERAL SPECIFICATIONS
| Product Name |
Eaton E50 NEMA heavy duty plug-in limit switch receptable
|
| Catalog Number |
E50RA
|
| UPC |
782113290720
|
| Product Length/Depth |
2.92 in
|
| Product Height |
1.06 in
|
| Product Width |
1.54 in
|
| Product Weight |
0.11 lb
|
| Compliances |
CE Marked
|
| Certifications |
UL Recognized
CSA Certified UL Listed |
PRODUCT SPECIFICATIONS
| Number of poles |
Single-pole
|
| Enclosure material |
Die cast zinc
|
| Connection |
Screw terminal
|
| Operating temperature - max |
250 °F
|
| Operating temperature - min |
-40 °F
|
| Series |
E50 heavy duty plug in
|
| Switch type |
Gravity return
|
| Environmental rating |
NEMA 1, NEMA 3, NEMA 3S, NEMA 4, NEMA 4X, NEMA 6, NEMA 6P, NEMA 13, IP67
|
| Mounting method |
Front
Rear |
