Description
E50RB - Eaton Cutler Hammer - E50 Nema Heavy Duty Plug-In Limit Switch

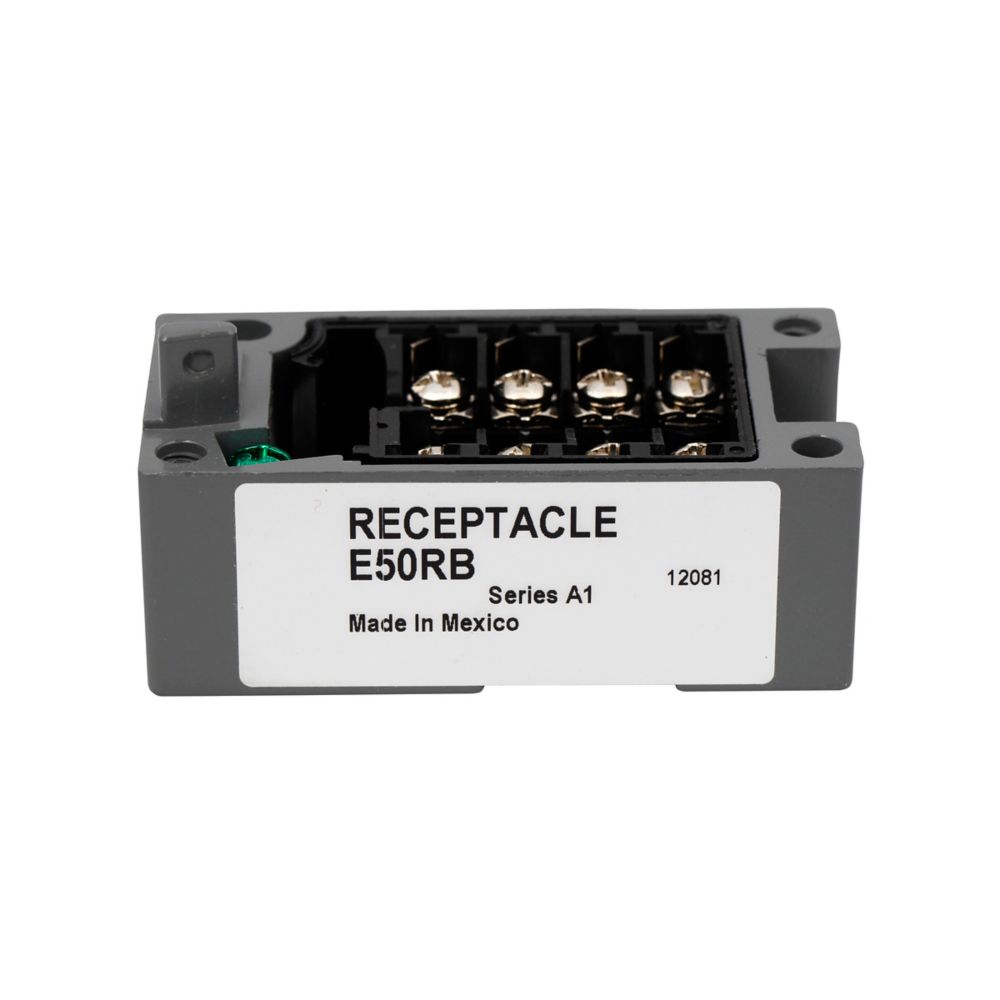

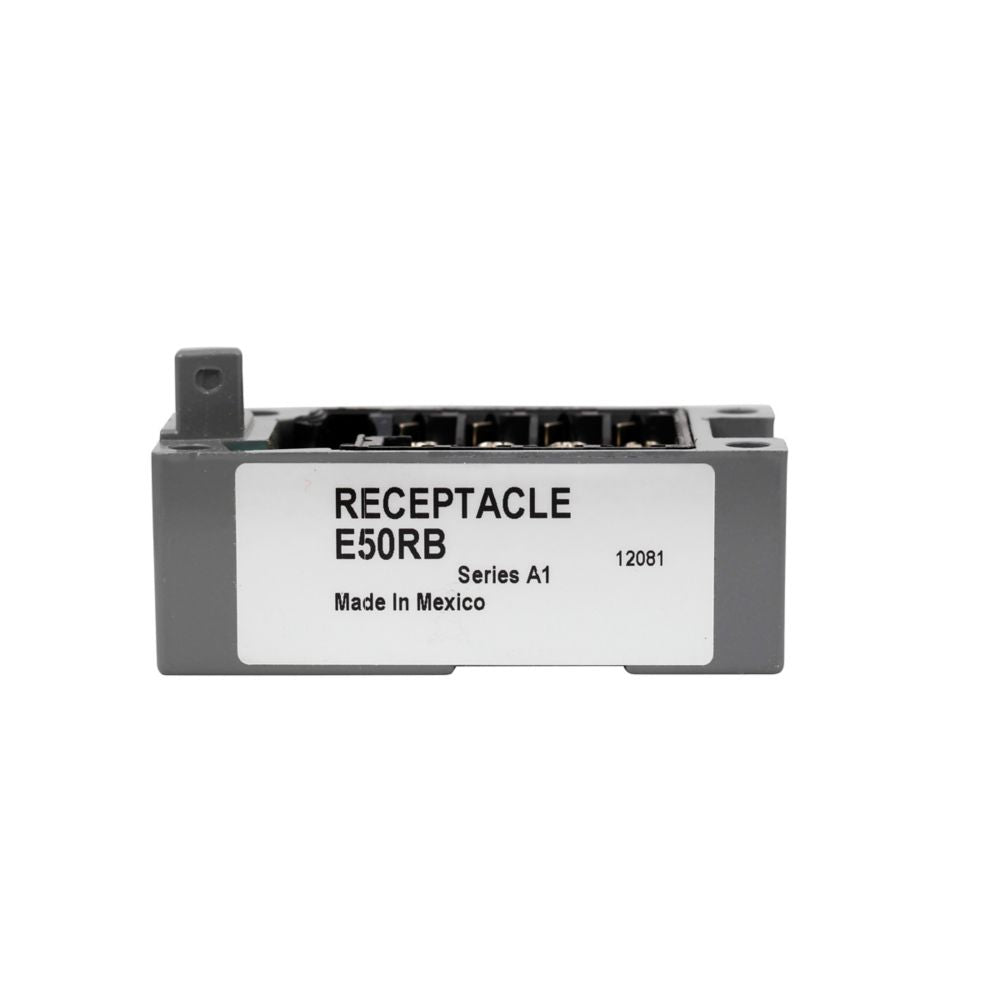

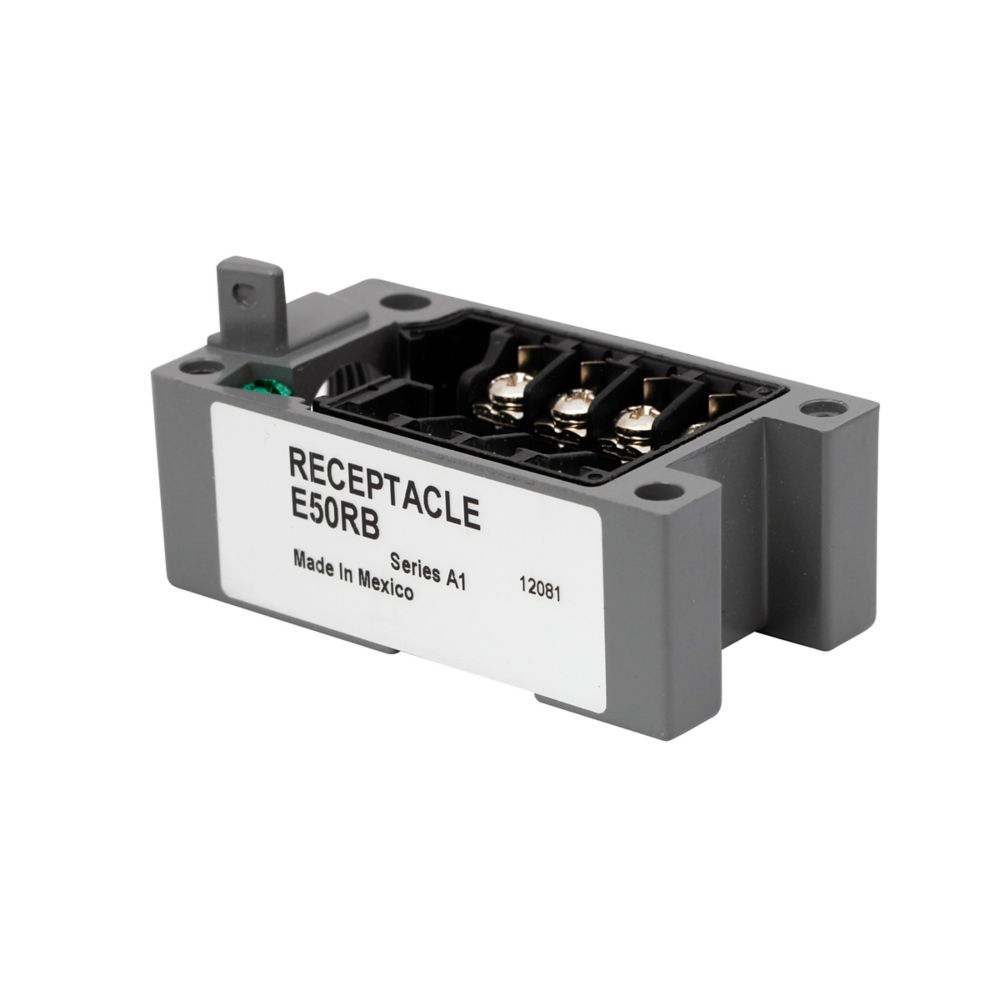

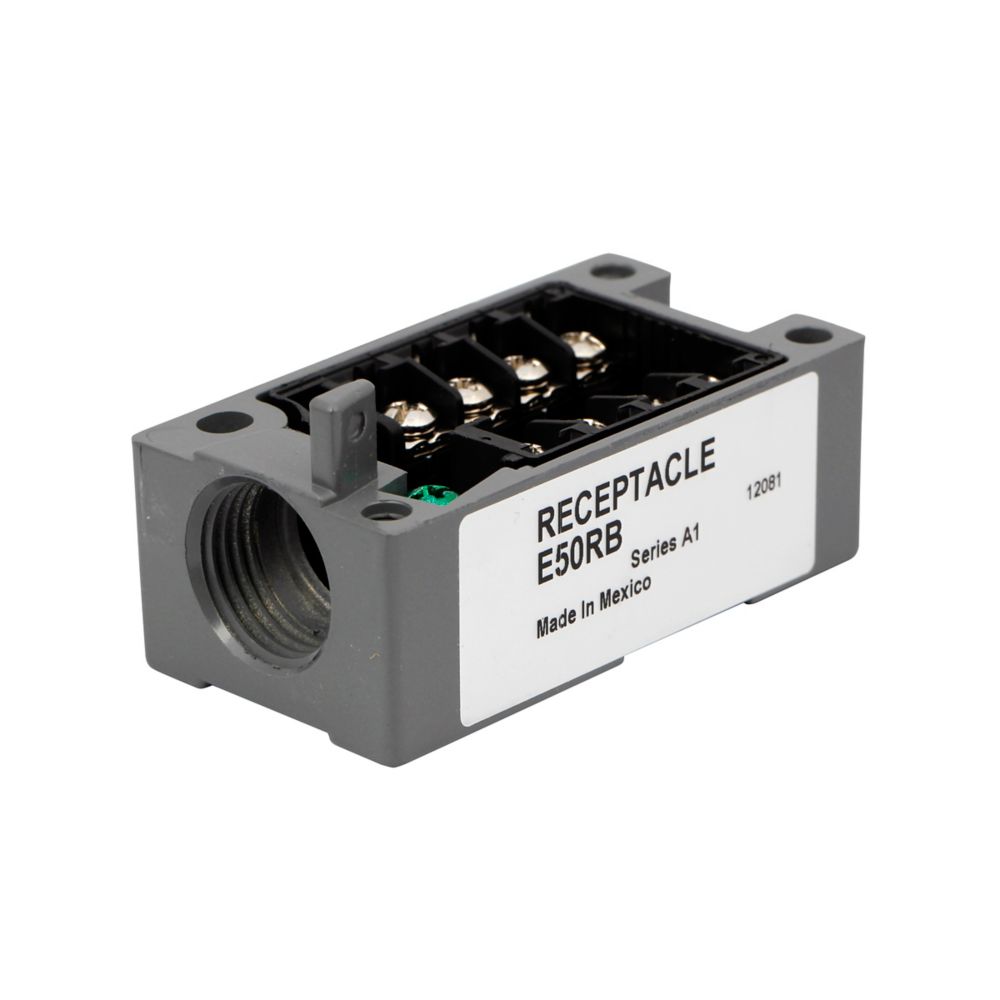

The E50RB is the two-pole (double-pole, 9-term) receptacle for E50 heavy-duty plug-in switches, crafted in die-cast zinc and utilizing screw terminals and a ½″ NPT conduit entrance. It shares the broad temperature and environmental ruggedness of its sibling components, including full NEMA and IP67 ratings.
GENERAL SPECIFICATIONS
| Product Name |
Eaton E50 NEMA heavy duty plug-in limit switch
|
| Catalog Number |
E50RB
|
| UPC |
782113290737
|
| Product Length/Depth |
2.92 in
|
| Product Height |
1.06 in
|
| Product Width |
1.54 in
|
| Product Weight |
0.11 lb
|
| Compliances |
RoHS Compliant
CE Marked |
| Certifications |
UL Recognized
CSA Certified UL Listed |
PRODUCT SPECIFICATIONS
| Enclosure material |
Die cast zinc
|
| Connection |
Screw terminal
|
| Series |
E50 heavy duty plug in
|
| Switch type |
Neutral position 5 ° travel
|
| Operating temperature - max |
250 °F
|
| Operating temperature - min |
-40 °F
|
| Environmental rating |
NEMA 1, NEMA 3, NEMA 3S, NEMA 4, NEMA 4X, NEMA 6, NEMA 6P, NEMA 13, IP67
|
| Mounting method |
Surface
|
