Description

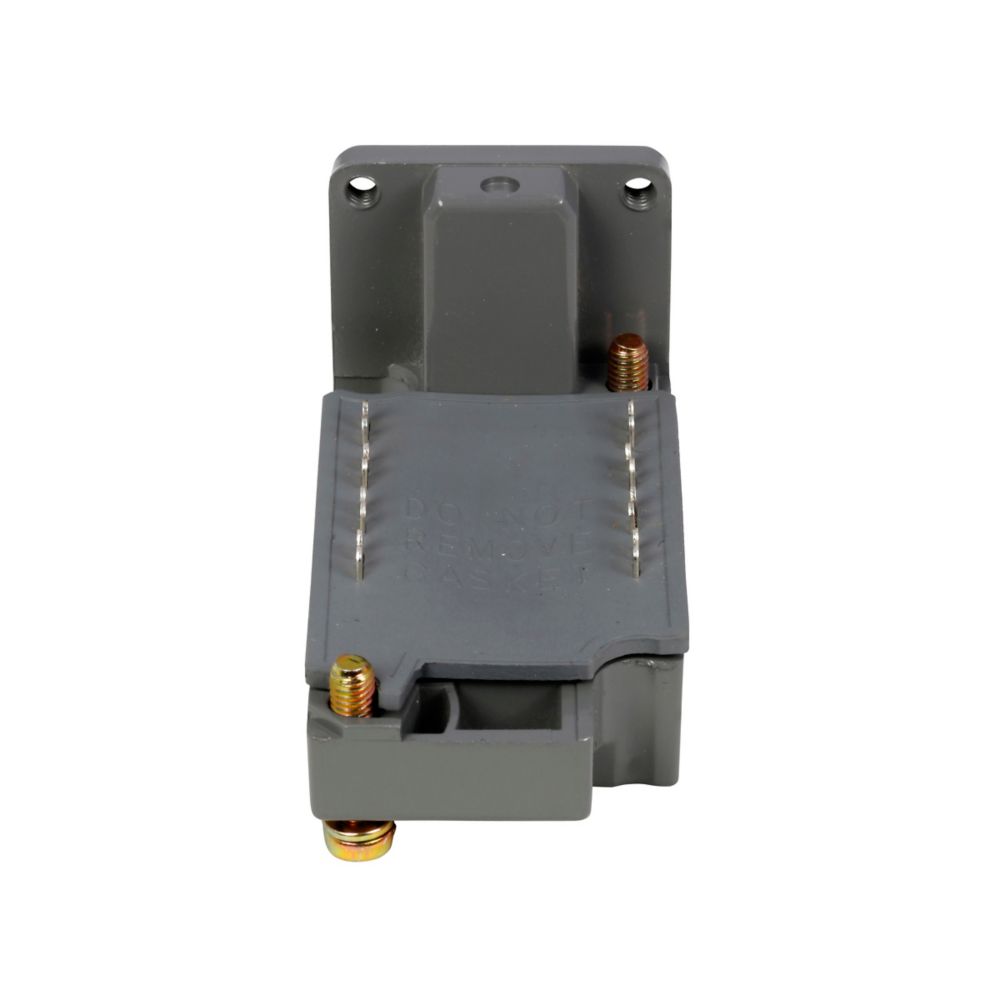

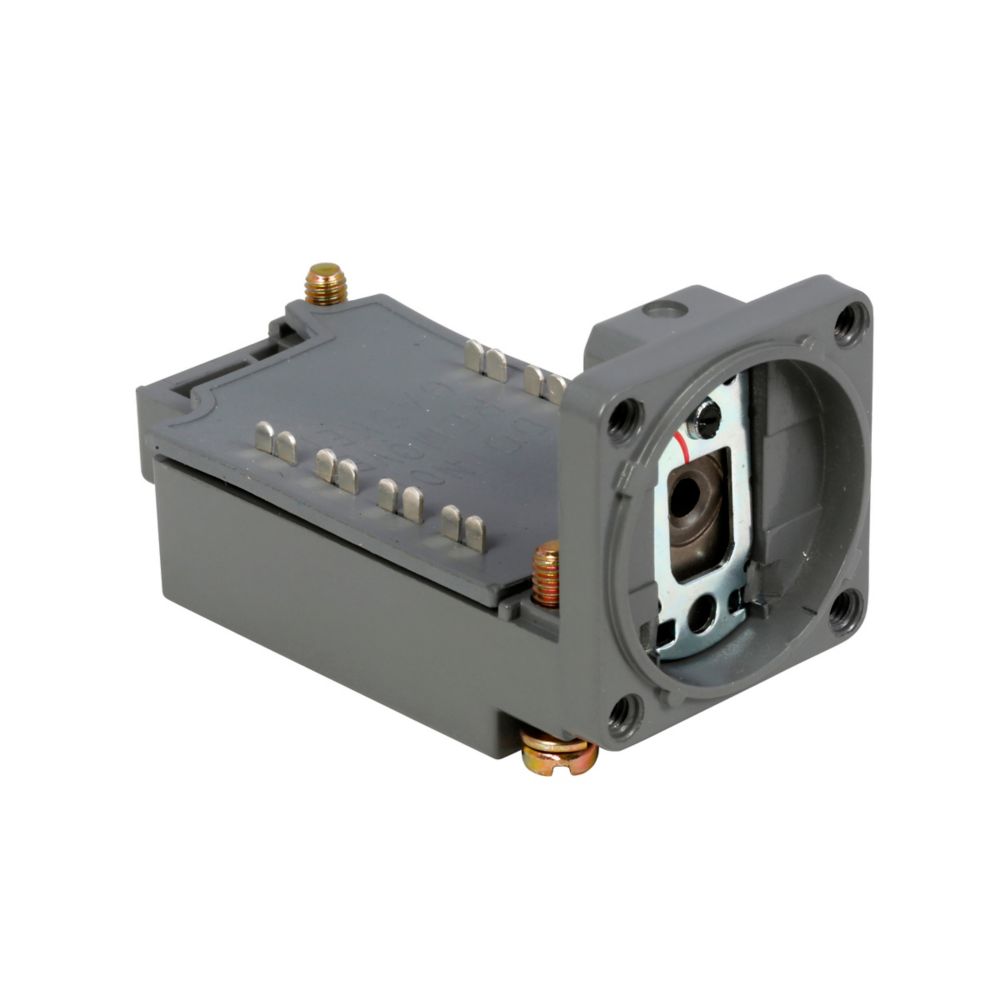

E50SB - Eaton Cutler Hammer - E50 Nema Heavy Duty Plug-In Limit Switch
The E50SB is a switch body (2 NO–2 NC contact configuration) in the E50 plug-in series, made to endure heavy-duty cycles—mechanical life of 10M and electrical life of 1M cycles at full load and up to 8000 operations per hour. It’s housed in die-cast zinc, rated for harsh environments (NEMA 1/3/3S/4/4X/6/6P/13, IP67), and operates reliably across –40 °F to 250 °F.
GENERAL SPECIFICATIONS
| Product Name |
Eaton E50 NEMA heavy duty plug-in limit switch
|
| Catalog Number |
E50SB
|
| UPC |
782113290683
|
| Product Length/Depth |
3.14 in
|
| Product Height |
1.73 in
|
| Product Width |
1.54 in
|
| Product Weight |
0.41 lb
|
| Compliances |
RoHS Compliant
CE Marked |
| Certifications |
CSA Certified
UL Recognized UL Listed |
PRODUCT SPECIFICATIONS
| Contact Rating |
10A at 12 Vac, 1A at 125 Vdc
|
| Enclosure material |
Die cast zinc
|
| Contact configuration |
2 NO-2 NC
|
| Series |
E50 heavy duty plug in
|
| Operating temperature - max |
250 °F
|
| Operating temperature - min |
-40 °F
|
| Environmental rating |
NEMA 1, NEMA 3, NEMA 3S, NEMA 4, NEMA 4X, NEMA 6, NEMA 6P, NEMA 13, IP67
|
| Maximum AC current |
10 A
|
| Maximum DC current |
1 A
|
| Number of poles |
Two-pole
|
