Description

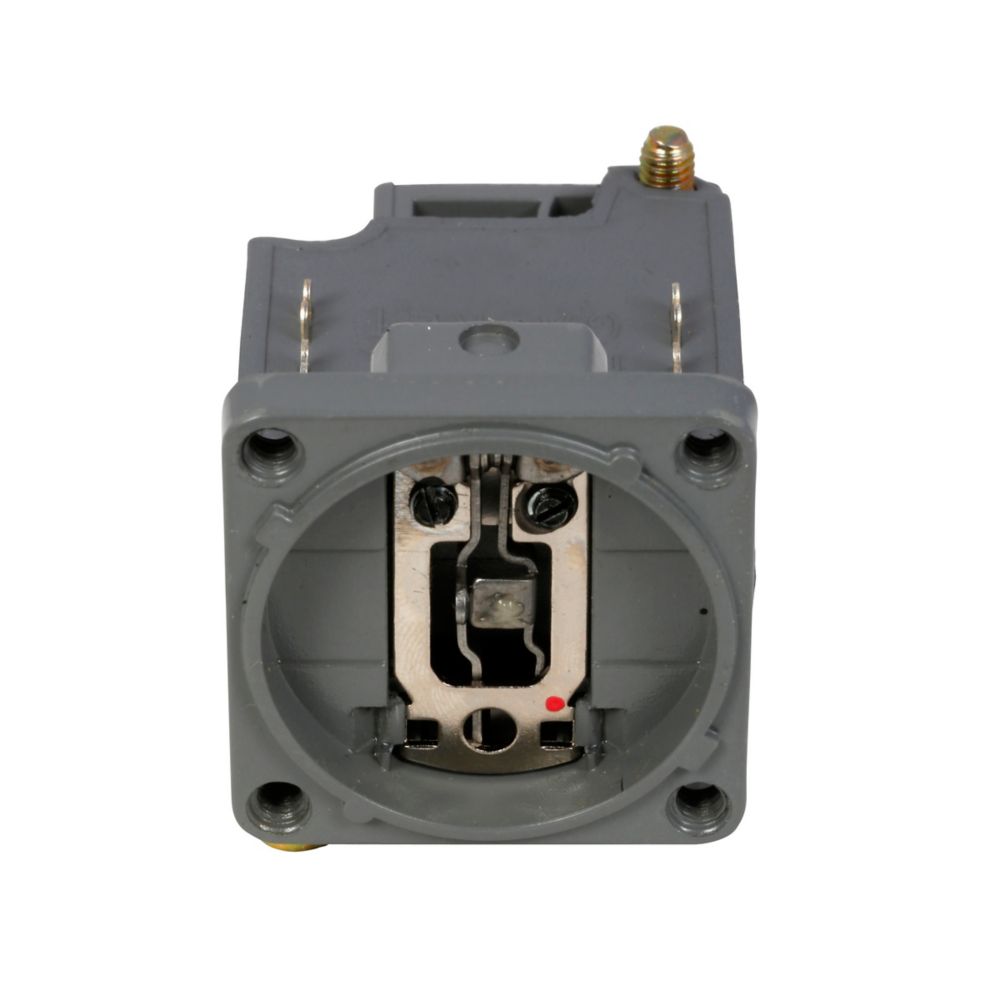

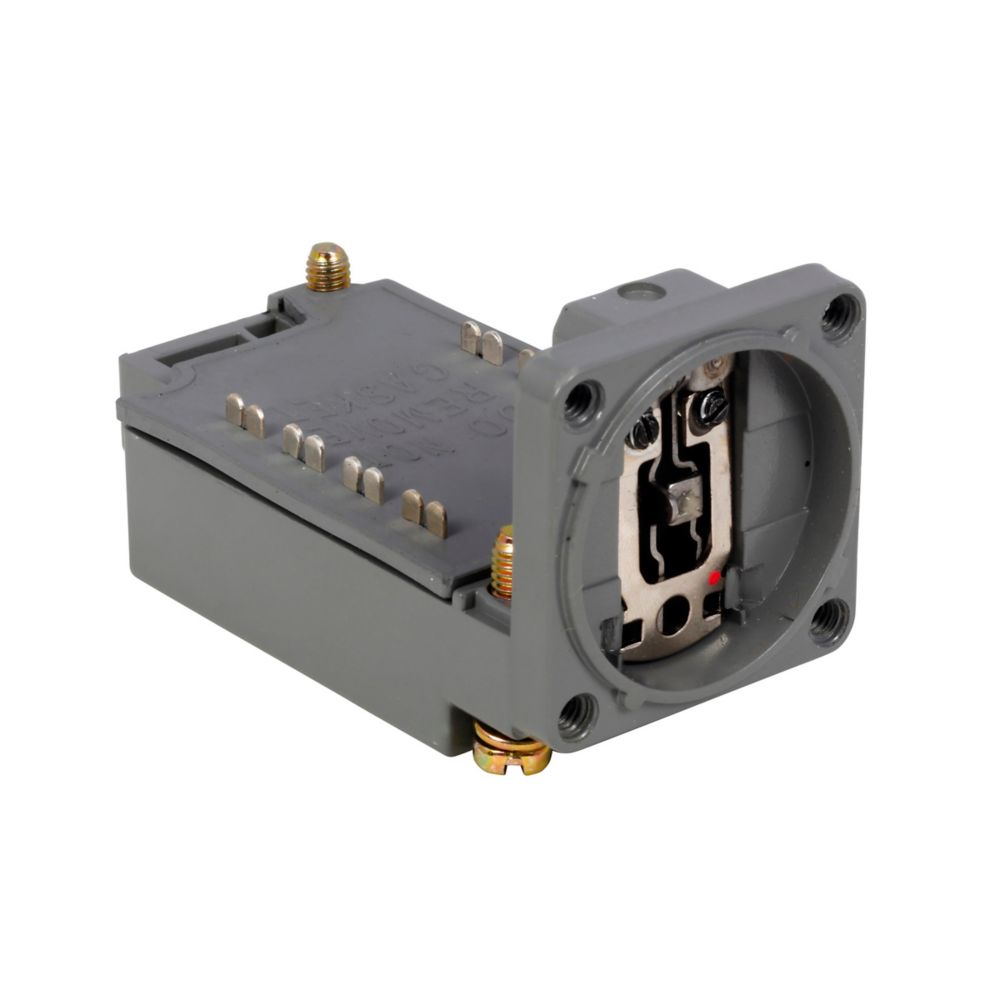

E50SN - Eaton Cutler Hammer - E50 Nema Heavy Duty Plug-In Limit Switch
The E50SN is the neutral-position, single-pole switch body in the E50 range, delivering 1 NO–1 NC contact switching for heavy-duty applications. Its die-cast zinc construction ensures robustness under demanding outdoor or industrial conditions, with NEMA 1/3/3S/4/4X/6/6P/13 and IP67 protection, functioning over the temperature range 14 °F to 201 °F.
GENERAL SPECIFICATIONS
| Product Name |
Eaton E50 NEMA heavy duty plug-in limit switch
|
| Catalog Number |
E50SN
|
| UPC |
782113308807
|
| Product Length/Depth |
3.14 in
|
| Product Height |
1.73 in
|
| Product Width |
1.54 in
|
| Product Weight |
0.41 lb
|
| Compliances |
RoHS Compliant
CE Marked |
| Certifications |
UL Listed
CSA Certified |
PRODUCT SPECIFICATIONS
| Special features |
Switch body only
|
| Type |
E50
|
| Contact Rating |
10A at 240 Vac, 1A at 250 Vdc
|
| Enclosure material |
Die cast zinc
|
| Contact configuration |
1 NO-1 NC
|
| Series |
E50
|
| Operating temperature - max |
201 °F
|
| Operating temperature - min |
14 °F
|
| Environmental rating |
NEMA 1, NEMA 3, NEMA 3S, NEMA 4, NEMA 4X, NEMA 6, NEMA 6P, NEMA 13, IP67
|
| Maximum AC current |
10 A continuous
|
| Maximum DC current |
1 A
|
