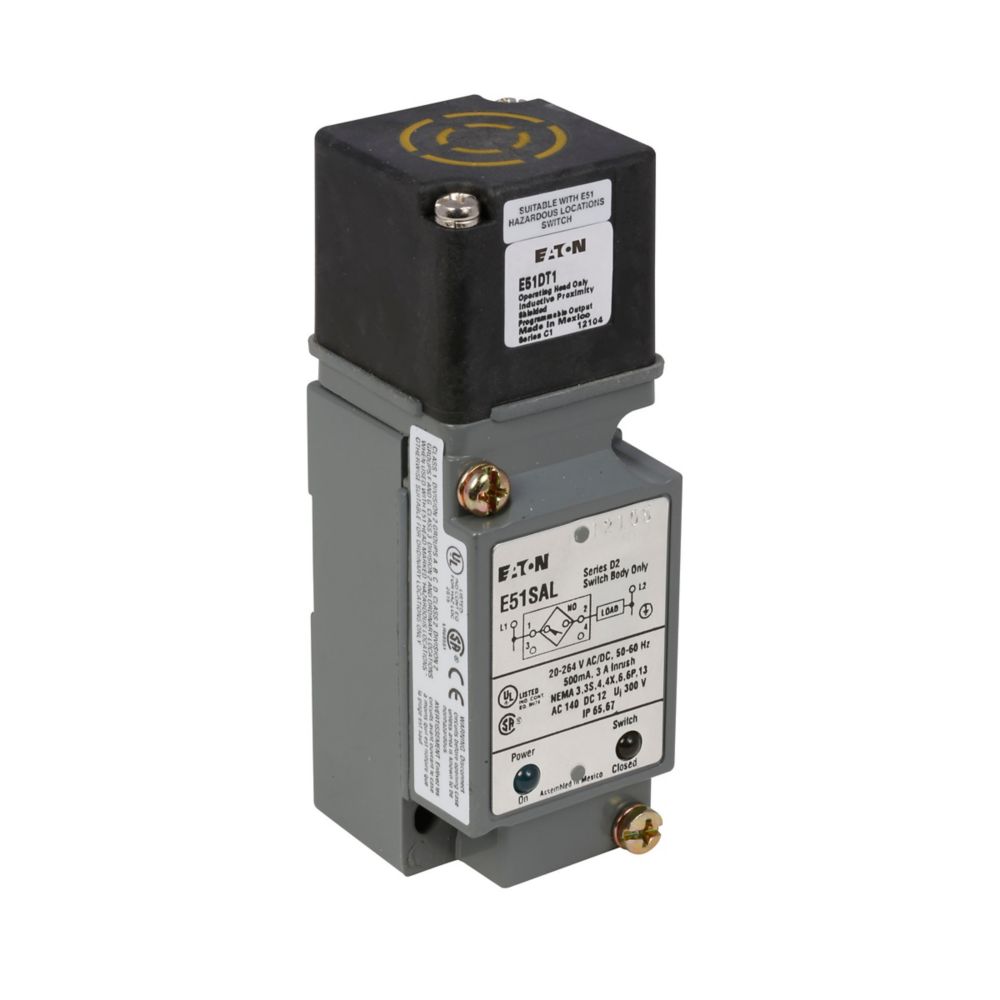

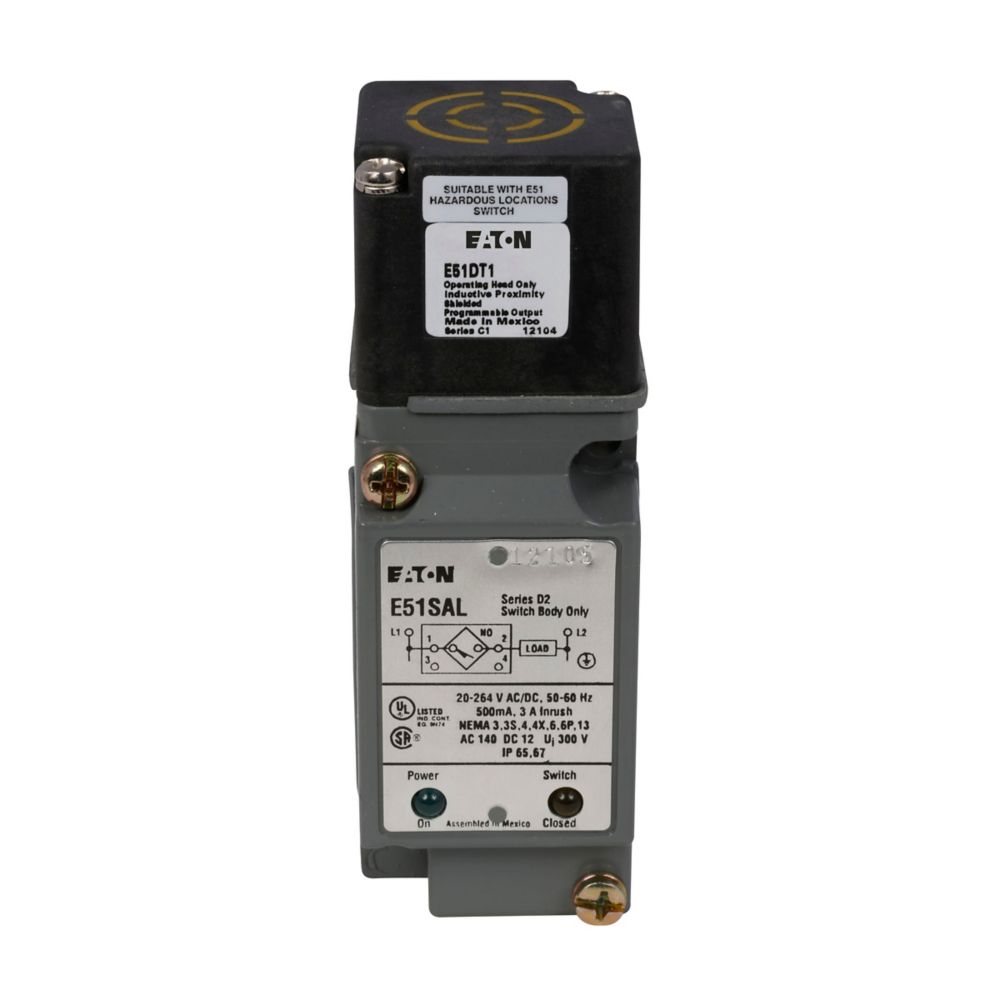

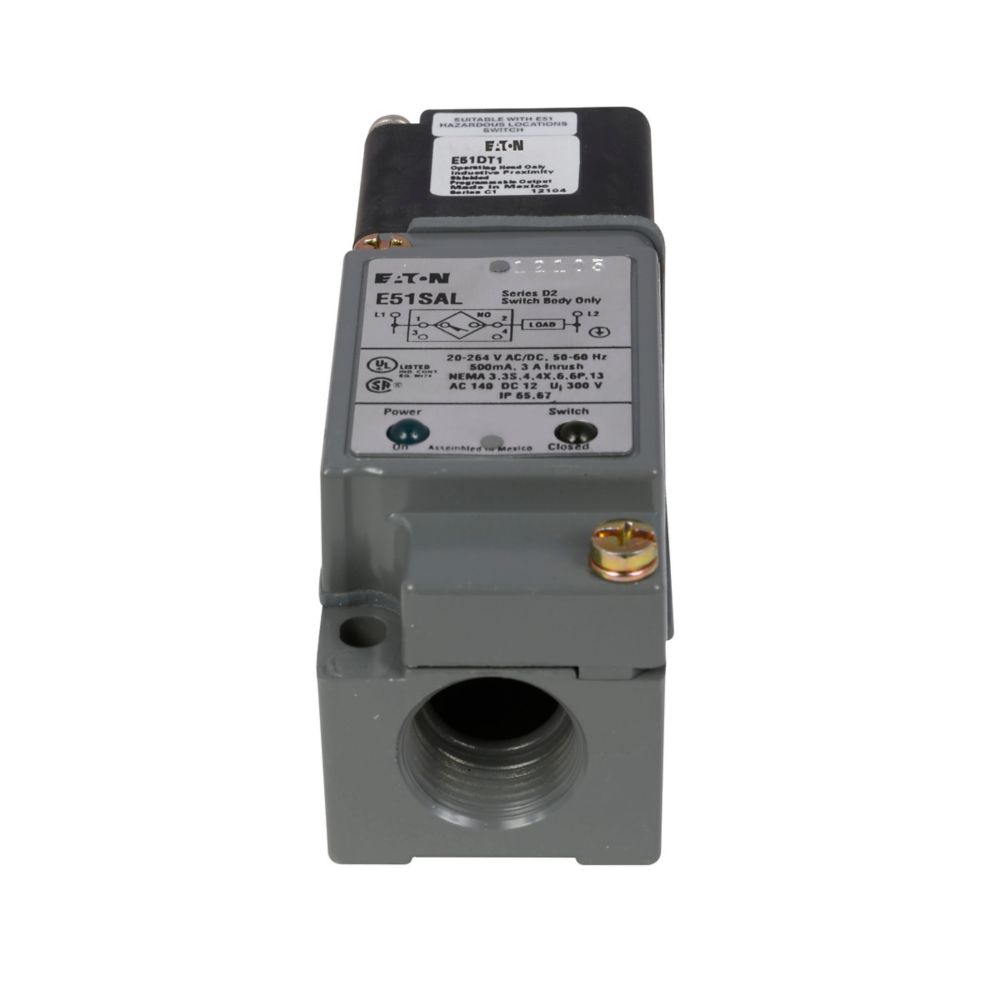

E51ALT1 - Eaton Cutler Hammer - E51 Nema Limit Switch Inductive Proximity Sensor
The E51ALT1 is an inductive proximity sensor in Eaton’s E51 modular NEMA limit switch series. With a shielded design, screw terminal connection, and 500 mA solid-state NO/NC output, it operates on 20–264 VAC/DC. Built into a compact die-cast zinc housing, it accommodates NEMA 3/3S/4/4X/6/6P/12/13 and IP67 environments, and is UL- and CSA-certified.
GENERAL SPECIFICATIONS
| Product Name |
Eaton E51 NEMA limit switch inductive proximity sensor
|
| Catalog Number |
E51ALT1
|
| UPC |
782113312743
|
| Product Length/Depth |
4.53 in
|
| Product Height |
1.78 in
|
| Product Width |
1.54 in
|
| Product Weight |
1.05 lb
|
| Certifications |
UL Listed
CSA Certified |
PRODUCT SPECIFICATIONS
| Type |
Inductive Proximity Sensor
|
| Contact Rating |
500 mA AC/DC solid state output
|
| Actuator function |
Shielded
|
| Enclosure material |
Die cast zinc
|
| Connection |
Screw terminal
|
| Contact configuration |
NO/NC
|
| Series |
E51 modular
|
| Environmental rating |
NEMA 3, NEMA 3S, NEMA 4, NEMA 4X, NEMA 6, NEMA 6P, NEMA 12, NEMA 13, IP67
|
| Operating temperature - max |
158 °F
|
| Operating temperature - min |
-13 °F
|
| Maximum AC current |
500 mA
|
| Maximum DC current |
500 mA
|
| Input voltage |
20-264 Vac/dc
|
| LED indicator |
Output ON (1 LED per output)
|
| Protection |
Latching short circuit
|
