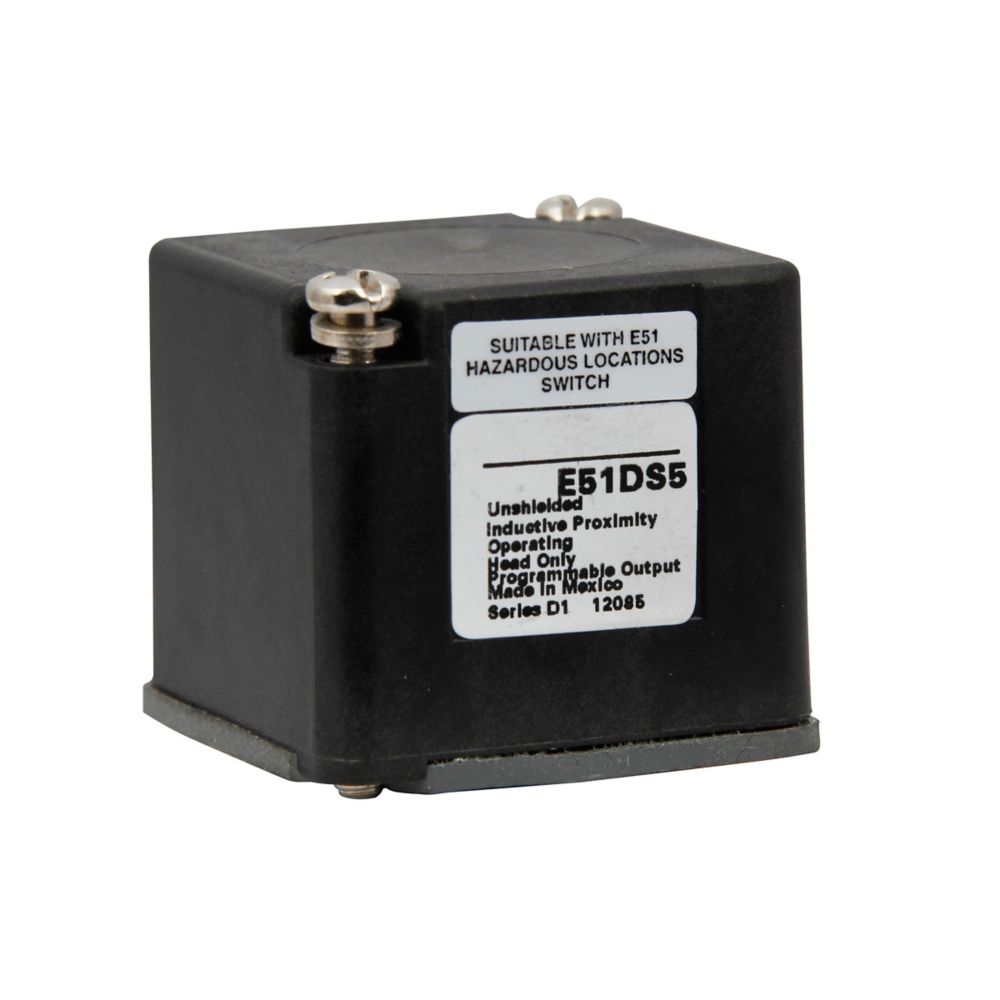

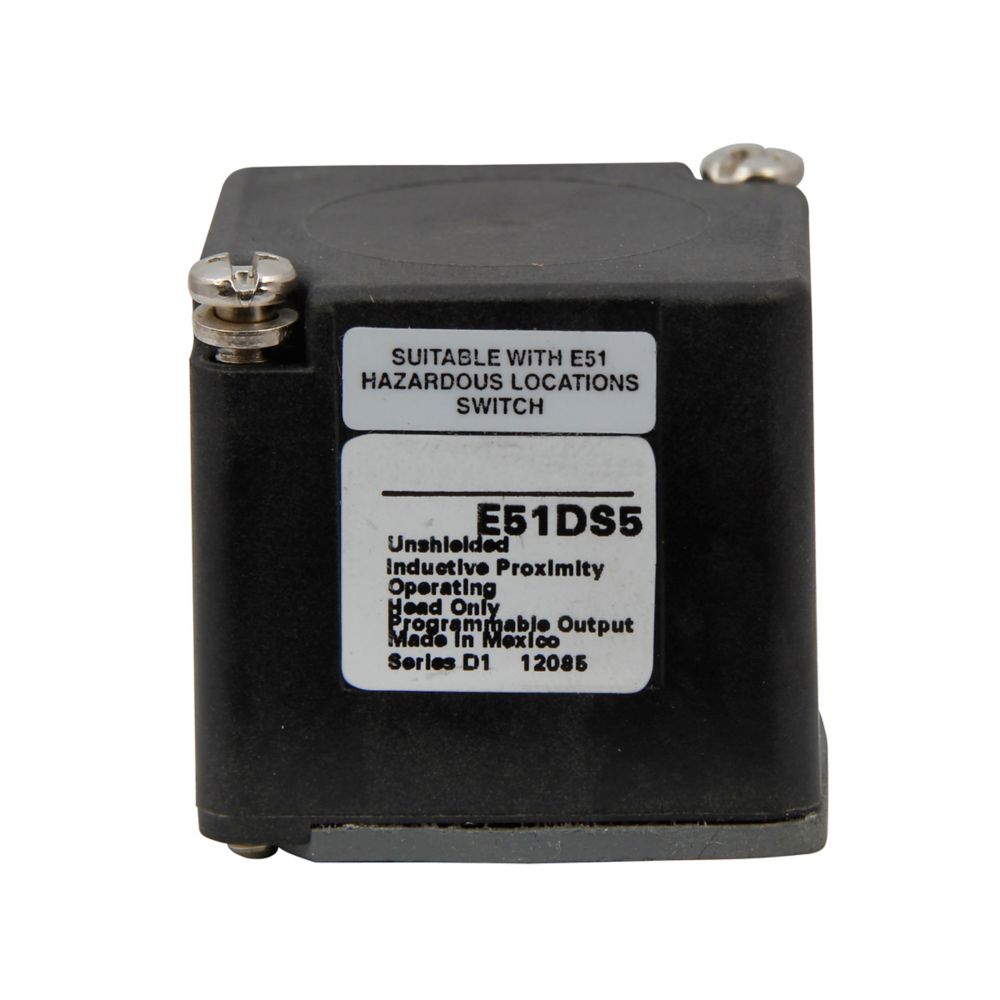

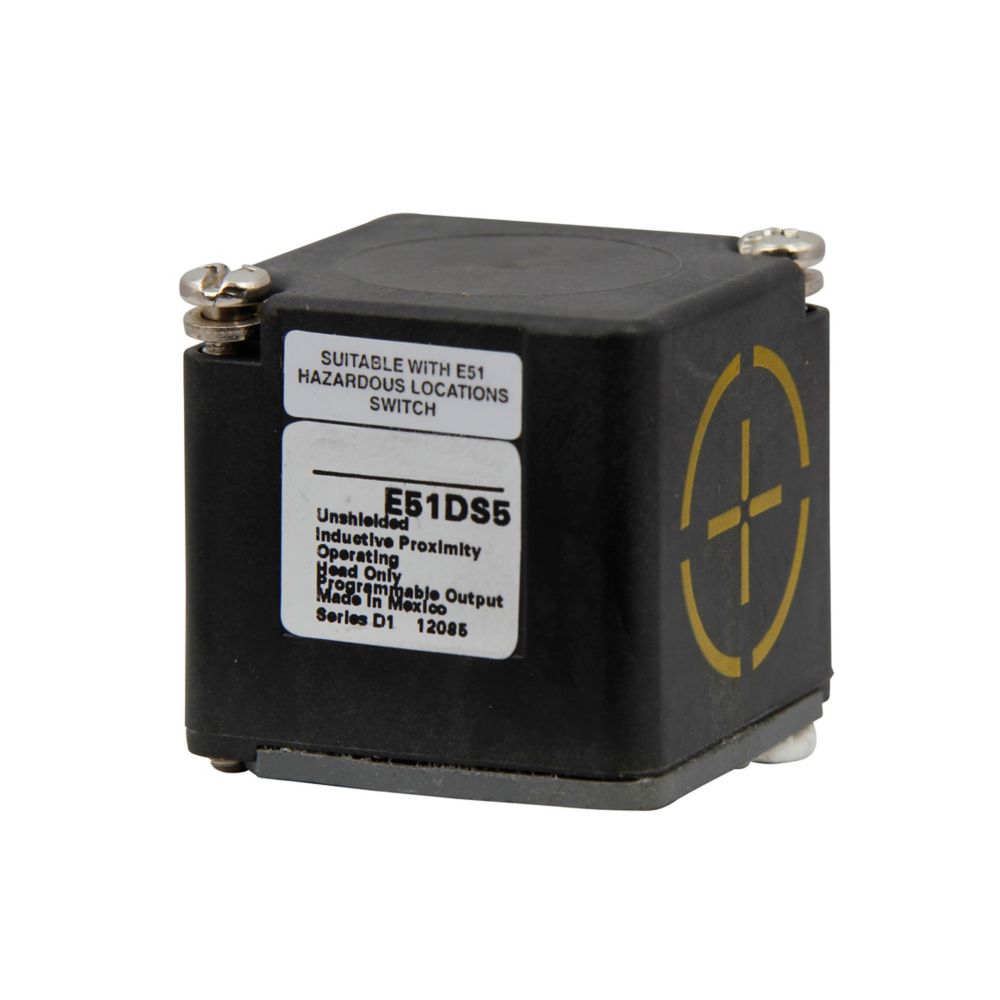

E51DS5 - Eaton Cutler Hammer - E51 Nema Limit Switch Inductive Proximity Sensor
The E51DS5 is an unshielded, side-sensing inductive sensor head with a longer range of 0.94 in, designed for E51 limit switch modules. Built in the same plastic housing with equivalent environmental ratings and certifications as the DS1/DT1 models, it offers enhanced detection flexibility for different mounting setups.
GENERAL SPECIFICATIONS
| Product Name |
Eaton E51 NEMA limit switch inductive proximity sensor
|
| Catalog Number |
E51DS5
|
| UPC |
782113358949
|
| Product Length/Depth |
1.38 in
|
| Product Height |
1.51 in
|
| Product Width |
1.51 in
|
| Product Weight |
0.1 lb
|
| Certifications |
CSA Certified
UL Listed |
PRODUCT SPECIFICATIONS
| Actuator function |
Unshielded
|
| Frequency rating |
Standard
|
| Enclosure material |
Plastic
|
| Series |
E51
|
| Environmental rating |
NEMA 3, NEMA 3S, NEMA 4, NEMA 4X, NEMA 6, NEMA 6P, NEMA 12, NEMA 13, IP67
|
| Operating temperature - max |
158 °F
|
| Operating temperature - min |
-13 °F
|
