E51RA - Eaton Cutler Hammer - E51 Nema Limit Switch Inductive Proximity Sensor

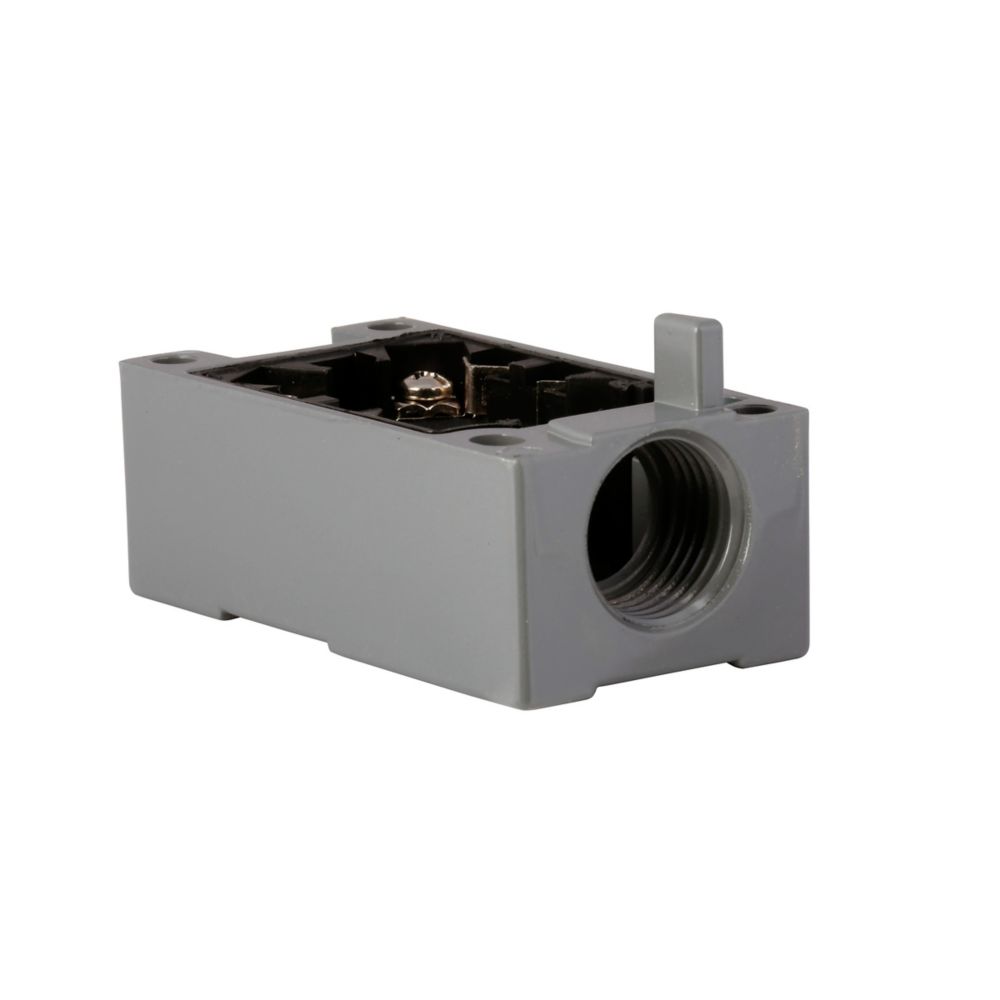

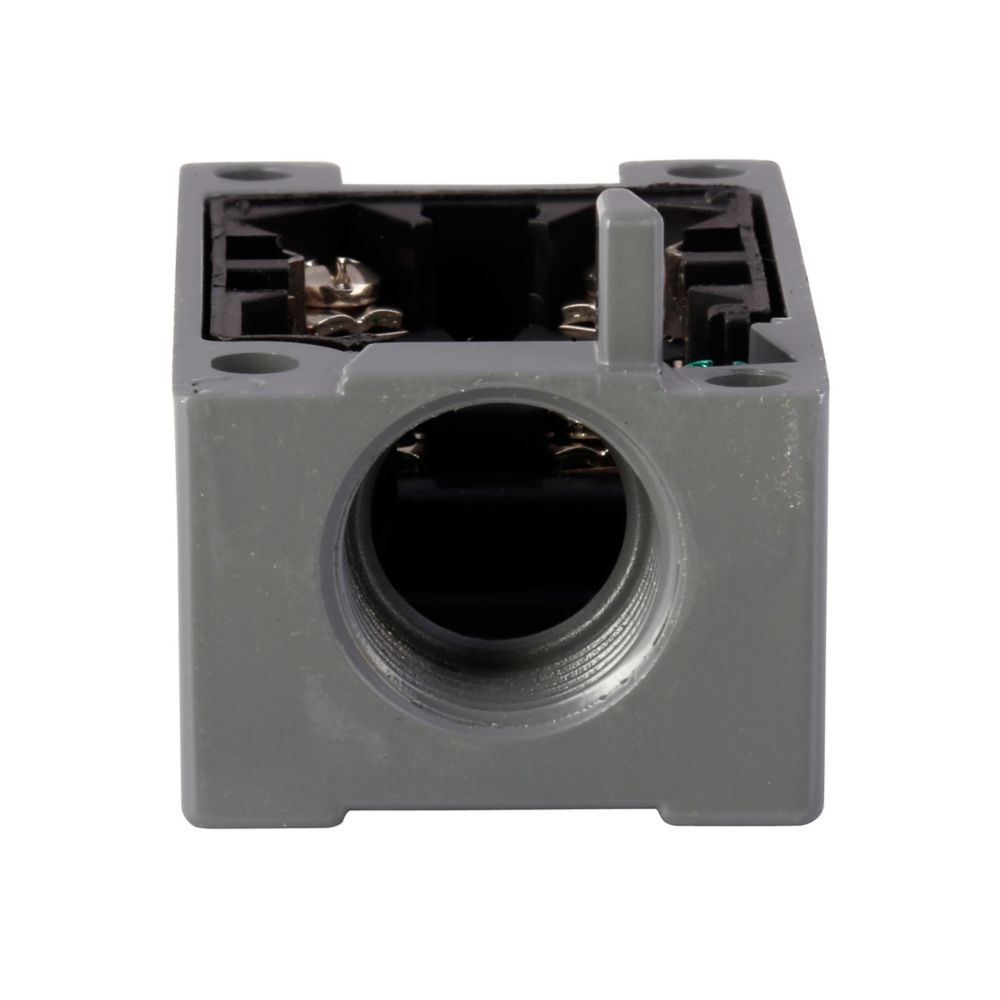

The E51RA is a conduit-entry receptacle designed for easy integration with Eaton’s E51 modular inductive and photoelectric sensor heads. Made from rugged die-cast zinc, it features a ½-inch NPT conduit entrance and supports surface mounting with either front or rear entry. Ideal for industrial installations, it enhances the modular flexibility of the E51 sensor family.
GENERAL SPECIFICATIONS
| Product Name |
Eaton E51 NEMA limit switch inductive proximity sensor
|
| Catalog Number |
E51RA
|
| UPC |
782113884844
|
| Product Length/Depth |
2.92 in
|
| Product Height |
1.06 in
|
| Product Width |
1.54 in
|
| Product Weight |
0.45 lb
|
| Certifications |
UL Listed
CSA Certified |
PRODUCT SPECIFICATIONS
| Type |
Assembled Inductive Proximity Fiber Optic Sensor
|
| Enclosure material |
Die cast zinc
|
| Connection |
Screw terminal
|
| Series |
E51
|
| Number of wires |
2
|
| Environmental rating |
NEMA 3, NEMA 3S, NEMA 4, NEMA 4X, NEMA 6, NEMA 6P, NEMA 12, NEMA 13, IP67
|
| Operating temperature - max |
158 °F
|
| Operating temperature - min |
-13 °F
|
| Operating voltage |
20-264 Vac/dc
|
