Description

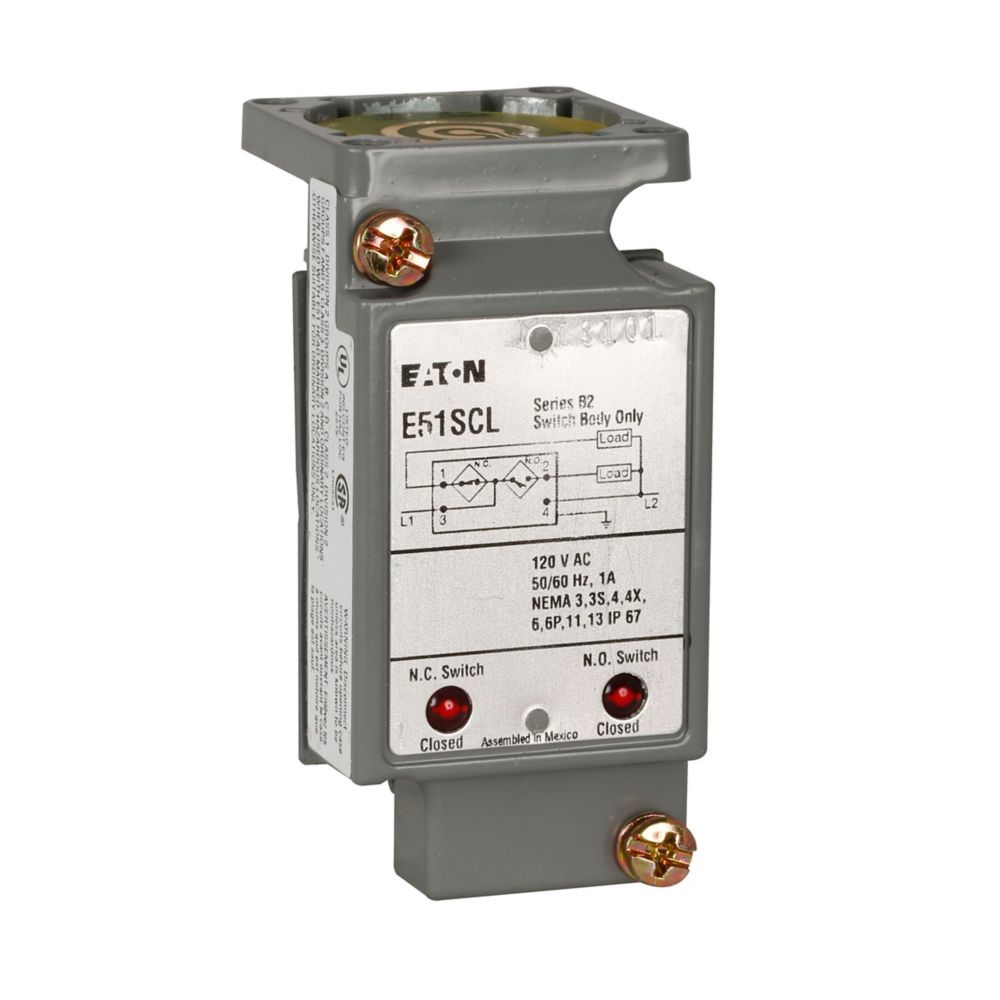

E51SCL - Eaton Cutler Hammer - E51 Nema Limit Switch Inductive Proximity Sensor
The E51SCL is a four-wire, line-powered AC sensor body for use with E51 sensor heads, providing complementary NO and NC outputs with a continuous 1 A rating (derated at higher temperatures). It maintains the same rugged construction and broad environmental protections (NEMA 3–13, IP67) as other E51 bodies. Ideal for applications requiring dual output flexibility in harsh industrial environments.
GENERAL SPECIFICATIONS
| Product Name |
Eaton E51 NEMA limit switch inductive proximity sensor
|
| Catalog Number |
E51SCL
|
| UPC |
782113107219
|
| Product Length/Depth |
3.14 in
|
| Product Height |
1.73 in
|
| Product Width |
1.54 in
|
| Product Weight |
0.3 lb
|
| Certifications |
CSA Certified
UL Listed |
PRODUCT SPECIFICATIONS
| Type |
Assembly
|
| Contact Rating |
1.0A solid state output
|
| Enclosure material |
Die cast zinc
|
| Contact configuration |
L1 switched
|
| Series |
E51 modular
|
| Environmental rating |
NEMA 3, NEMA 3S, NEMA 4, NEMA 4X, NEMA 6, NEMA 6P, NEMA 12, NEMA 13, IP67
|
| Operating temperature - max |
158 °F
|
| Operating temperature - min |
-13 °F
|
| Maximum AC current |
1 A
|
| Input voltage |
120 V
|
| LED indicator |
Output ON (1 LED per output)
|
