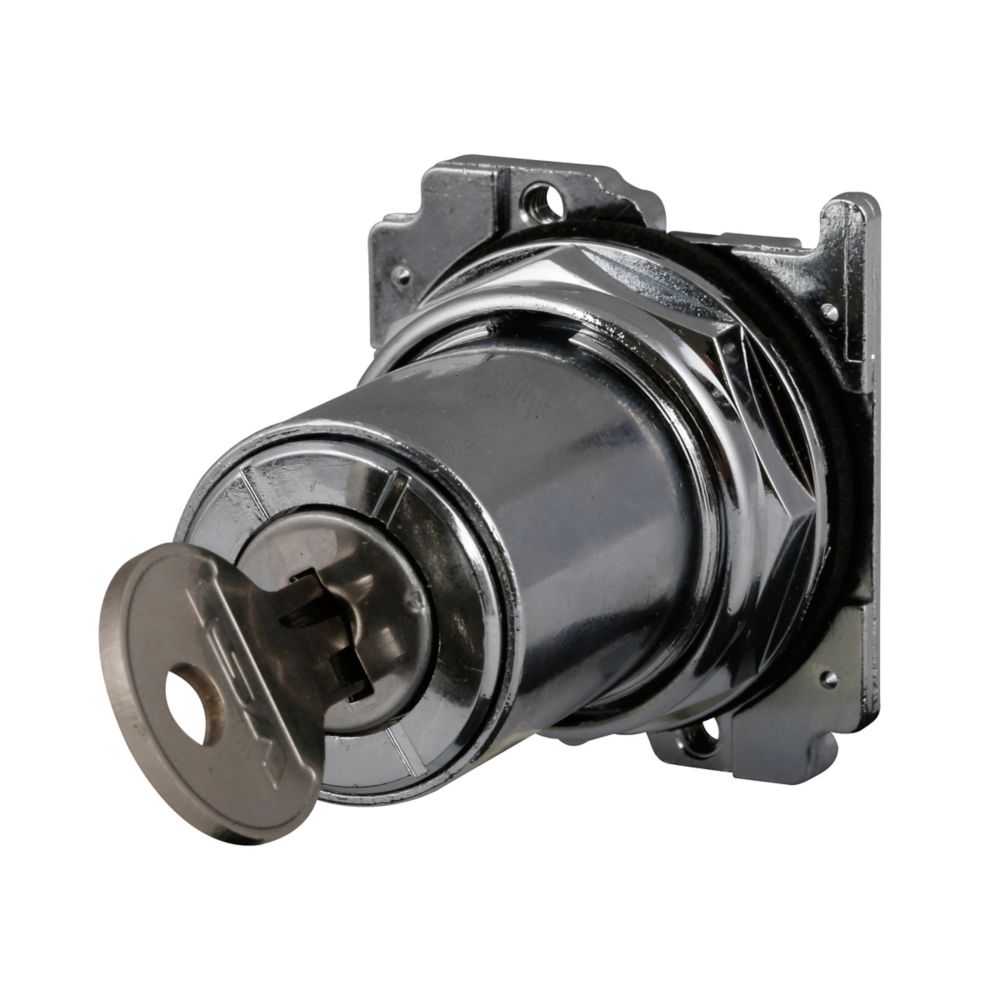

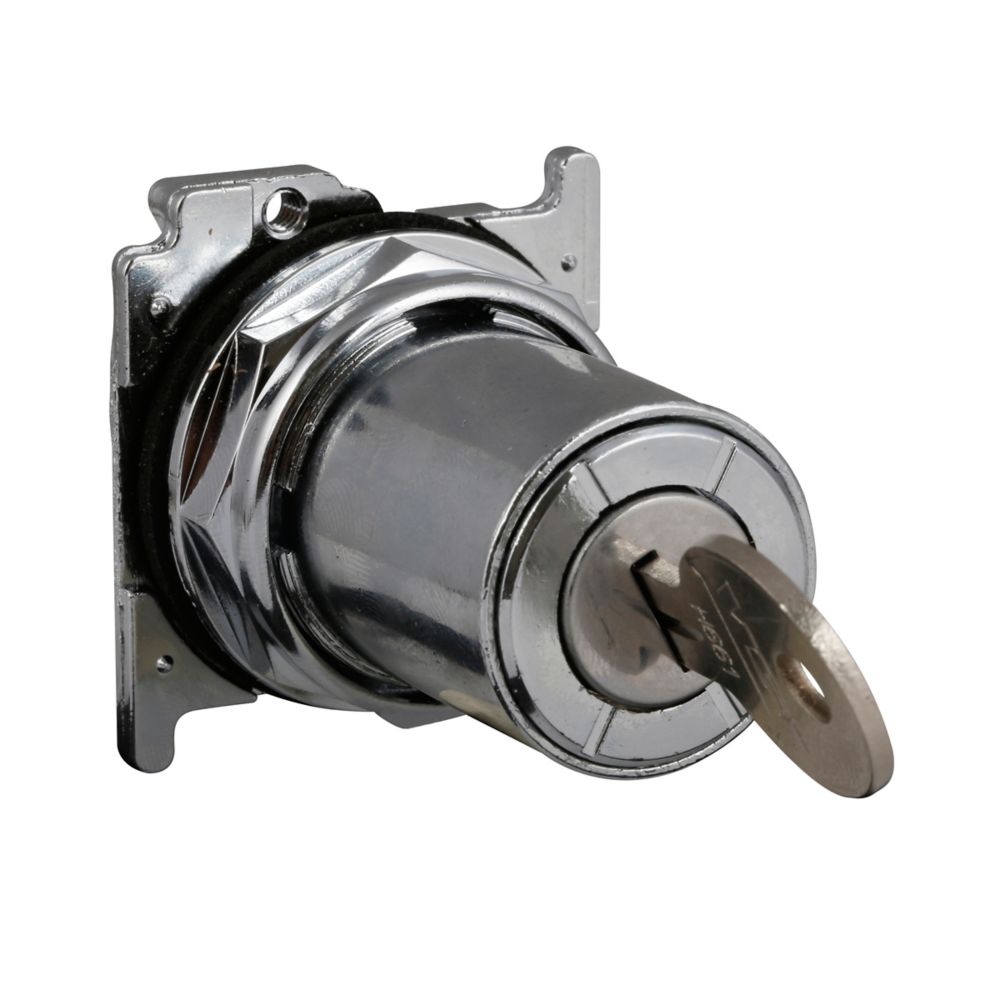

10250T15113 - Eaton Cutler-Hammer - Selector Switch
Eaton 30.5 mm, Heavy-Duty Selector Switch Operator, 10250T, Cam 1, 60° throw, NEMA 3, 3R, 4, 4X, 12, 13, Non-illuminated, Two-position, Key, Right and left
GENERAL SPECIFICATIONS
| PRODUCT NAME | Eaton 10250T pushbutton |
| CATALOG NUMBER | 10250T15113 |
| UPC | 782113227498 |
| PRODUCT LENGTH/DEPTH | 1.9 in |
| PRODUCT HEIGHT | 2.3 in |
| PRODUCT WIDTH | 1.9 in |
| PRODUCT WEIGHT | .45 lb |
| COMPLIANCES | CE Marked |
| CERTIFICATIONS | CSA Certified UL Listed |
| Product Type |
Pushbutton
|
PRODUCT SPECIFICATIONS
| THROW TYPE | 60 ° |
| NUMBER OF POSITIONS | 2 |
| SERIES | 10250T |
| TYPE | 30.5 mm, Heavy-Duty |
| RATING | NEMA 3, NEMA 3R, NEMA 4, NEMA 4X, NEMA 12, NEMA 13 |
| ILLUMINATION | Non-illuminated |
| CAM CODE | Cam 1 |
| KEY REMOVAL POSITION | Right and left |
| ACTUATOR | Key operated |
