Description

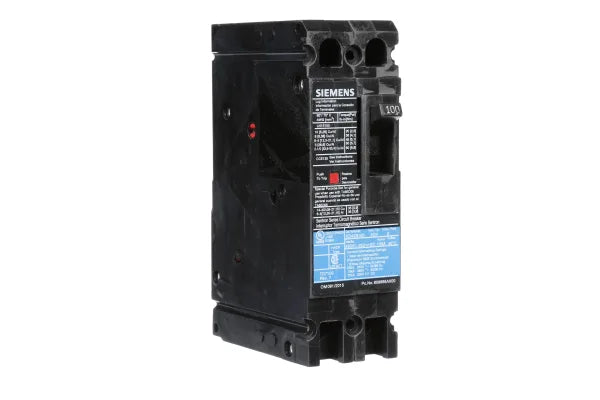

ED42B100 - Siemens - 100A 480V 2 Pole Circuit Breaker
SIEMENS LOW VOLTAGE SENTRON MOLDED CASE CIRCUIT BREAKER WITH THERMAL - MAGNETIC TRIP UNIT. STANDARD 40 DEG C BREAKER ED FRAME WITH STANDARD BREAKING CAPACITY. MEETS UL 489 / IEC 60947-2 STANDARDS. 100A 2-POLE BREAKER (18KAIC AT 480V). SPECIAL FEATURES: LOAD LUGS ONLY (LN1E100) WIRE RANGE: 10 - 1/0AWG (CU/AL). DIMENSIONS (W x H x D) IN: 2 x 6.35 x 3.92.
TECHNICAL SPECIFICATIONS
Product related
| Article number | US2:ED42B100 |
| MFN | ED42B100 |
| UPC | 783643209336 |
| Commodity Code | 8536200020 |
Pricing related
| Price Group | NIU |
Delivery related
| Export Control Regulations | AL : N / ECCN : EAR99 |
| Standard delivery time | 18 Day/Days |
| Packaging dimensions (L x W x H) | Not available |
| Net weight | 2.599 lb |
| Quantity Unit | 1 Piece |
| Packaging Quantity | 1 |
| Dangerous goods | No |
Environment related
| WEEE (2012/19/EU) Take-Back Obligations | Yes |
| Compliance with the substance restrictions according to RoHS directive | Since: 07/01/2006 |
| SCIP Number | not available |
Siemens specific
| Product Group | 3741 |
| Catalog ID | LV10.1 |
| Group Code | P360 |
| Country of origin | Mexico |
| Returnable Status | No |
PRODUCT DATASHEET
