Description

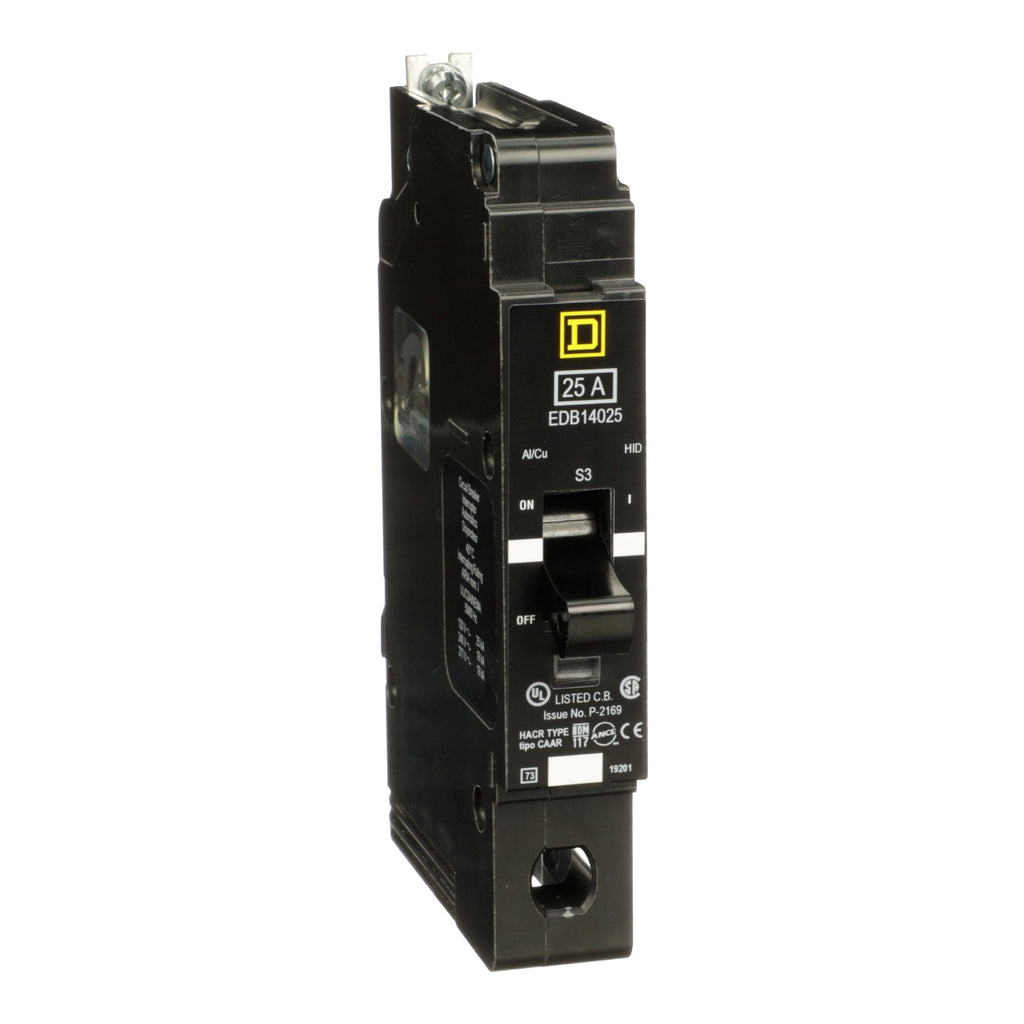

EDB14025 - Schneider Electric - Square D Bolt-On 25 Amp 1 Pole 277 Volt Circuit Breaker
E-Frame Breaker are Lighting Panelboard Circuit breakers that are proven effective and reliable which provide a wide variety or robust features that are use specifically in Square D NF Panelboards. This range of breaker is ideally designed to offer superior overload and short circuit protection. All E-Frame breakers have a thermal-magnetic trip unit as well as signal indicator that will indicate when a trip has occur. Mounting bolts are used to hold these breakers in place. This E-Frame breaker is 25A, 1 pole, and has an operating voltage of 277 VAC. It also provides a 25 kA max interrupt rating at 120 VAC. This device has a hold current of 270A which is the maximum current the breaker can be held to ensure it will trip and a trip current of 875A which is the current value when the breaker is guaranteed to trip. Many accessories are available for this breaker. This breaker was calibrated for 40 degrees C. This product is UL Listed as High Intensity Discharge. HACR rated.
GENERAL SPECIFICATIONS
| Main | |
| Range | 125 A Frame EDB-EGB-EJB |
| Product Type | Miniature circuit-breaker |
| Device Short Name | EDB |
| Module Type | E-Frame |
| Trip Unit Rating | 875 A |
| Complementary | |
| Rated Current | 25 A |
| Maximum Operating Voltage | 277 V AC |
| AWG Gauge | AWG 12...AWG 6 aluminium |
| AWG 14...AWG 6 copper | |
| Breaking Capacity | 18 kA 277 V AC |
| 18 kA 240 V AC | |
| 25 kA 120 V AC | |
| 18 kA 120/240 V AC | |
| Circuit Breaker Application | HID rated |
| HACR rated | |
| Electrical Connection | Lugs aluminium |
| Holding Current | 270 A |
| Local Signalling | Trip indicator |
| Mounting Mode | Bolt-on |
| Number of Poles | 1 |
| Number of Spaces | 1 |
| Number of Spaces Required | 1 |
| Product Destination | NF panelboard |
| Protect Type | Overload |
| Short-circuit | |
| Trip Unit Technology | Thermal-magnetic |
| Breaking Capacity Code | D |
| Tightening Torque | 30.09 lbf.in (3.4 N.m) 0.004…0.02 in² (2.5…16 mm²) (AWG 14...AWG 6) |
| Height | 5.66 in (143.76 mm) |
| Width | 0.98 in (24.89 mm) |
| Depth | 4.05 in (102.87 mm) |
| Product Weight | 2 lb(US) (0.9 kg) |
| Environment | |
| Product Certifications | cULus |
| IEC | |
| Ambient Air Temperature for Operation | 104 °F (40 °C) |
| Ordering and shipping details | |
| Category | US10DE200931 |
| Discount Schedule | 0DE2 |
| GTIN | 785901072904 |
| Returnability | Yes |
| Country of origin | MX |
| Packing Units | |
| Unit Type of Package 1 | PCE |
| Nbr. of units in pkg. | 1 |
| Package 1 Height | 1.800 in (4.572 cm) |
| Package 1 Width | 6.200 in (15.748 cm) |
| Package 1 Length | 10.600 in (26.924 cm) |
| Package weight(Lbs) | 21.760 oz (616.885 g) |
| Compliance | |
| Compliance | TAA Compliant |
PRODUCT DATASHEET
