Description

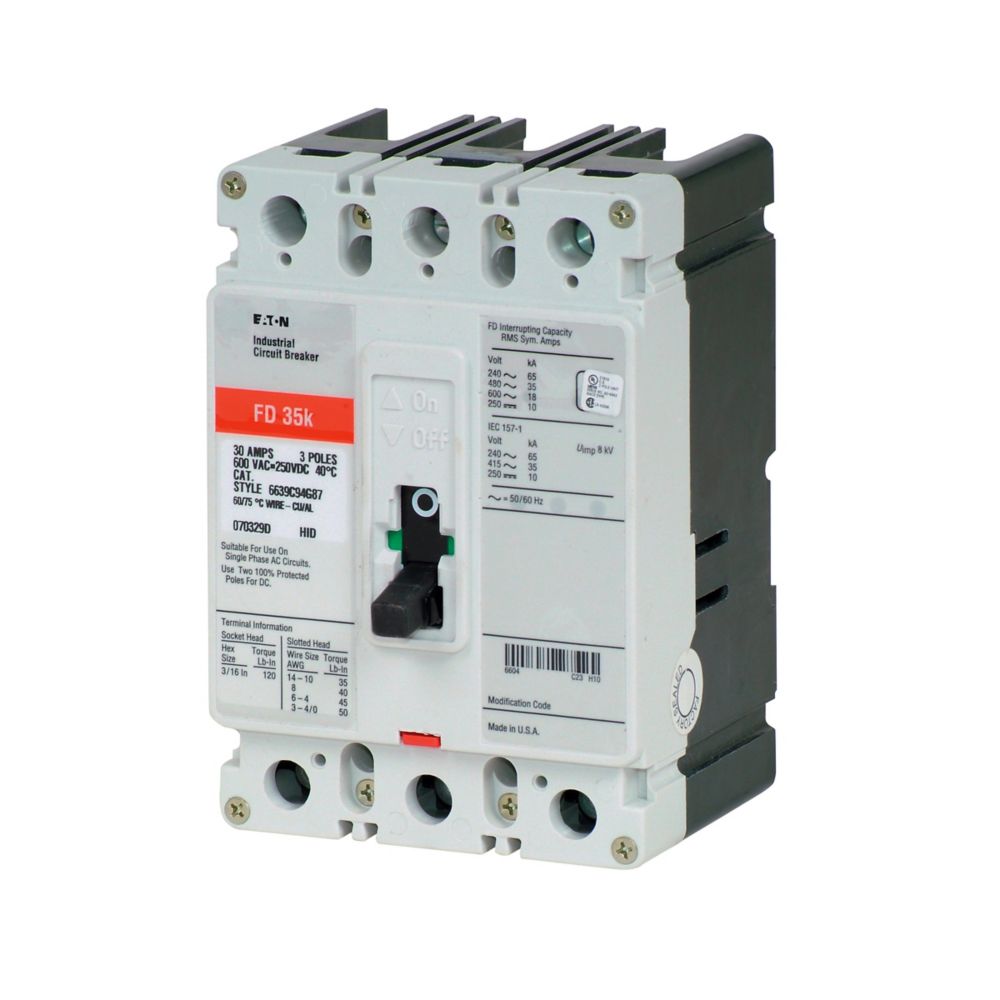

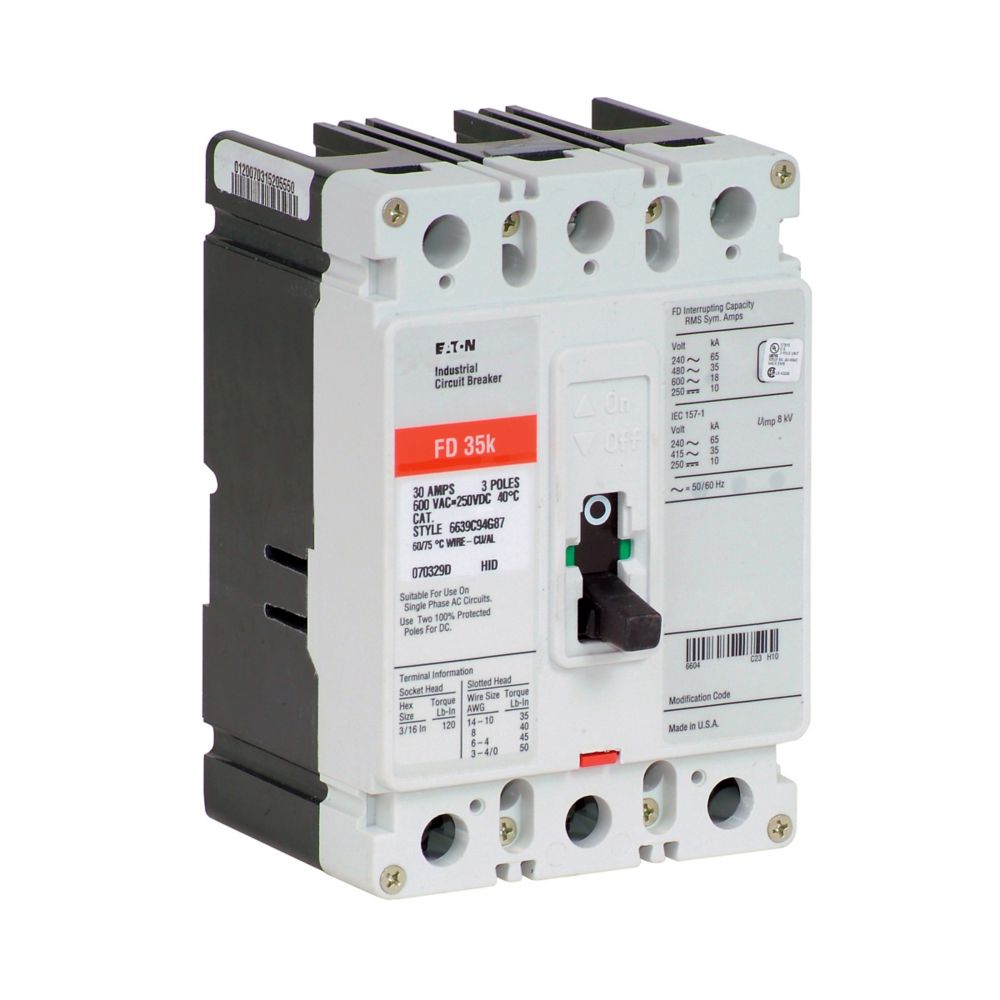

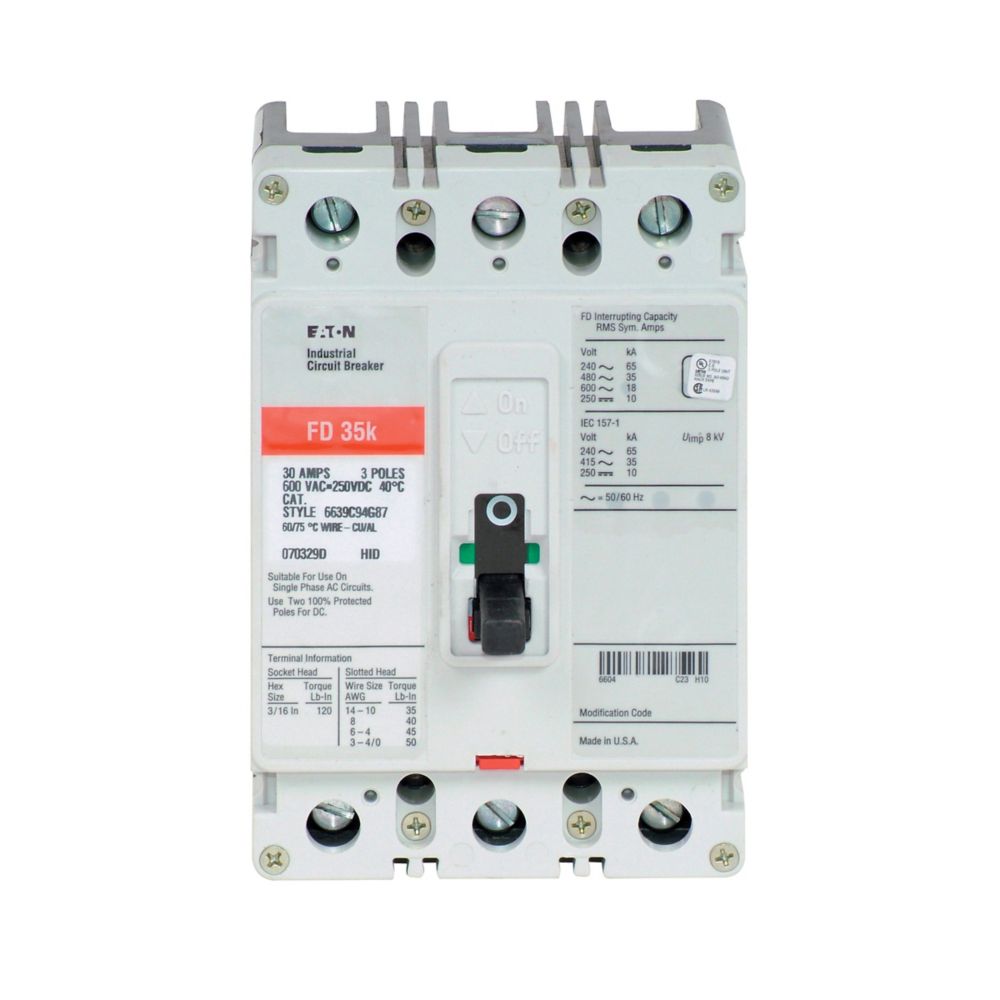

FD3060L - Eaton Cutler Hammer - 60A Series C Complete Molded Case Circuit Breakers
Eaton Series C complete molded case circuit breaker, F-frame, FD, Complete breaker, Fixed thermal, fixed magnetic trip type, Three-pole, 60A, 600 Vac, 250 Vdc, 65 kAIC at 240 Vac, 35 kAIC at 480 Vac, Line and load, 50/60 Hz.
GENERAL SPECIFICATIONS
| Product Name |
Eaton Series C complete molded case circuit breaker
|
| Catalog Number |
FD3060L
|
| UPC |
786679306291
|
| Product Length/Depth |
3.38 in
|
| Product Height |
6 in
|
| Product Width |
4.13 in
|
| Product Weight |
4.5 lb
|
| Certifications |
UL Listed
|
| Product Type |
Molded case circuit breaker
|
PRODUCT SPECIFICATIONS
| Amperage Rating |
60 A
|
| Voltage rating |
600 Vac, 250 Vdc
|
| Trip Type |
T186
|
| Circuit breaker type |
FD
|
| Circuit breaker frame type |
Complete breaker
|
| Series |
Series C
|
| Terminals |
Line and load
|
| Frame |
F
|
| Frequency rating |
50/60 Hz
|
| Interrupt rating |
35 kAIC at 480 Vac
65 kAIC at 240 Vac |
| Number of poles |
Three-pole
|
