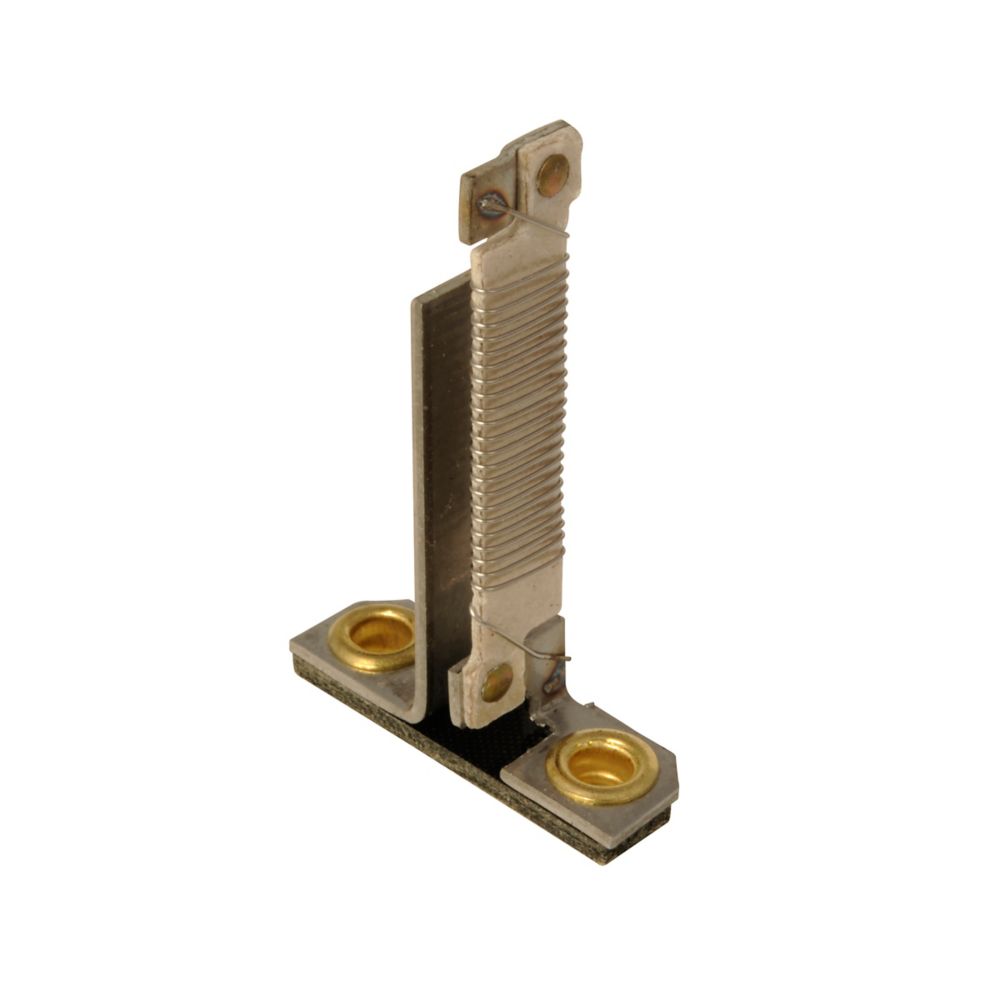

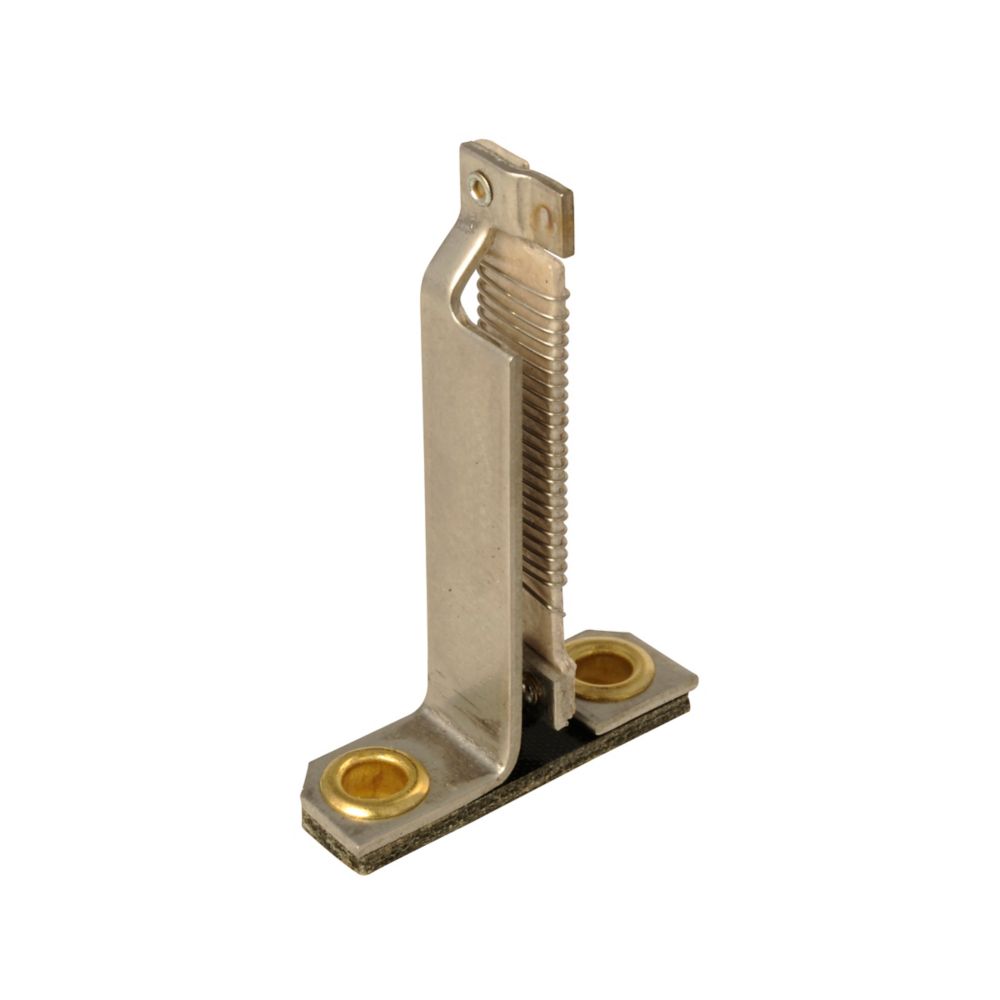

FH03 - Eaton Cutler Hammer - 31A A200/B100 Heater
The Eaton FH03 is a thermal overload relay heater element designed for use with A200 and B100 series motor starter relays (Sizes 0, 1, and 2). It supports ambient full load current ranges of 0.28–0.30 A (with non-compensated ranges from 0.24–0.25 A up to 0.28–0.30 A), providing accurate thermal protection within a compact casing (~0.8″ × 1.3″ × 2.1″) and weighing around 0.03 lb.
GENERAL SPECIFICATIONS
| Product Name |
Eaton A200/B100 heater
|
| Catalog Number |
FH03
|
| UPC |
786678628967
|
| Product Length/Depth |
2.1 in
|
| Product Height |
0.8 in
|
| Product Width |
1.3 in
|
| Product Weight |
0.03 lb
|
| Certifications |
UL Listed
CSA Certified |
| Catalog Notes |
Select heater coils based on full load current(FLA) shown on motor nameplate. Heater coils are rated to protect 40 degree C rise and a service factor of 1.15, Single-Phase requires 2 heaters, Three-Phase Requires 3 heaters
|
| Global Catalog |
FH03
|
PRODUCT SPECIFICATIONS
| Used with |
Used with Starter Sizes 0,1, and 2
|
| Design |
NEMA
|
| Full load current range |
Ambient 0.25-0.27, 0.29-0.31 A, Non-Comp 0.24-0.25, 0.28-0.30 A
|
| Overload relay |
Type A and B
|
| Trip type |
Thermal and fast trip
|
