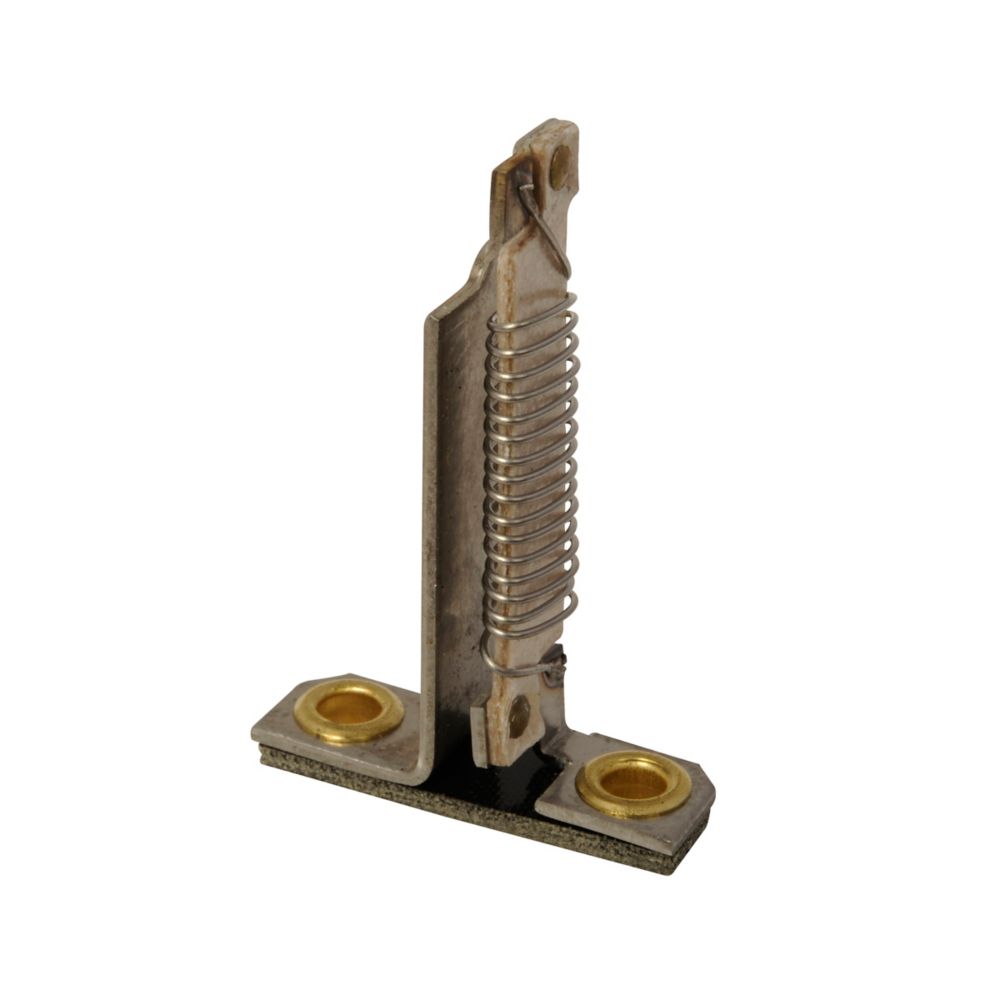

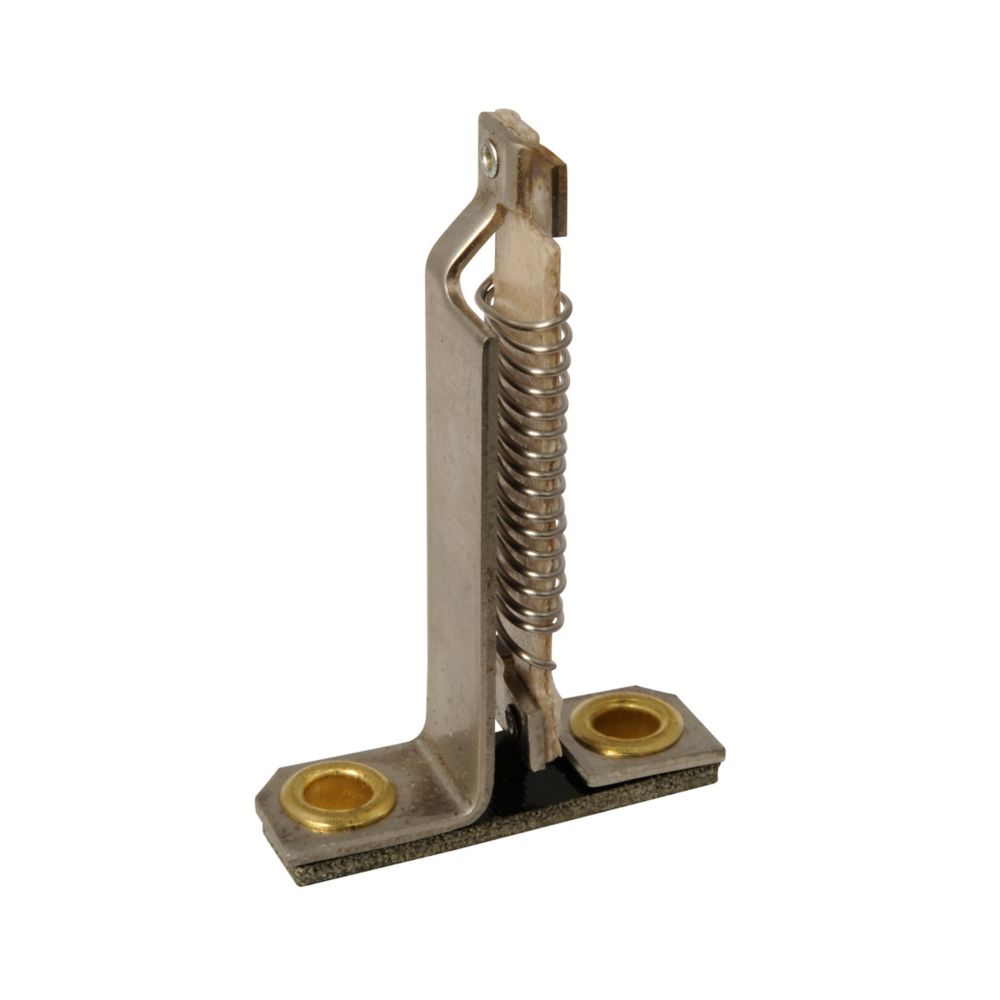

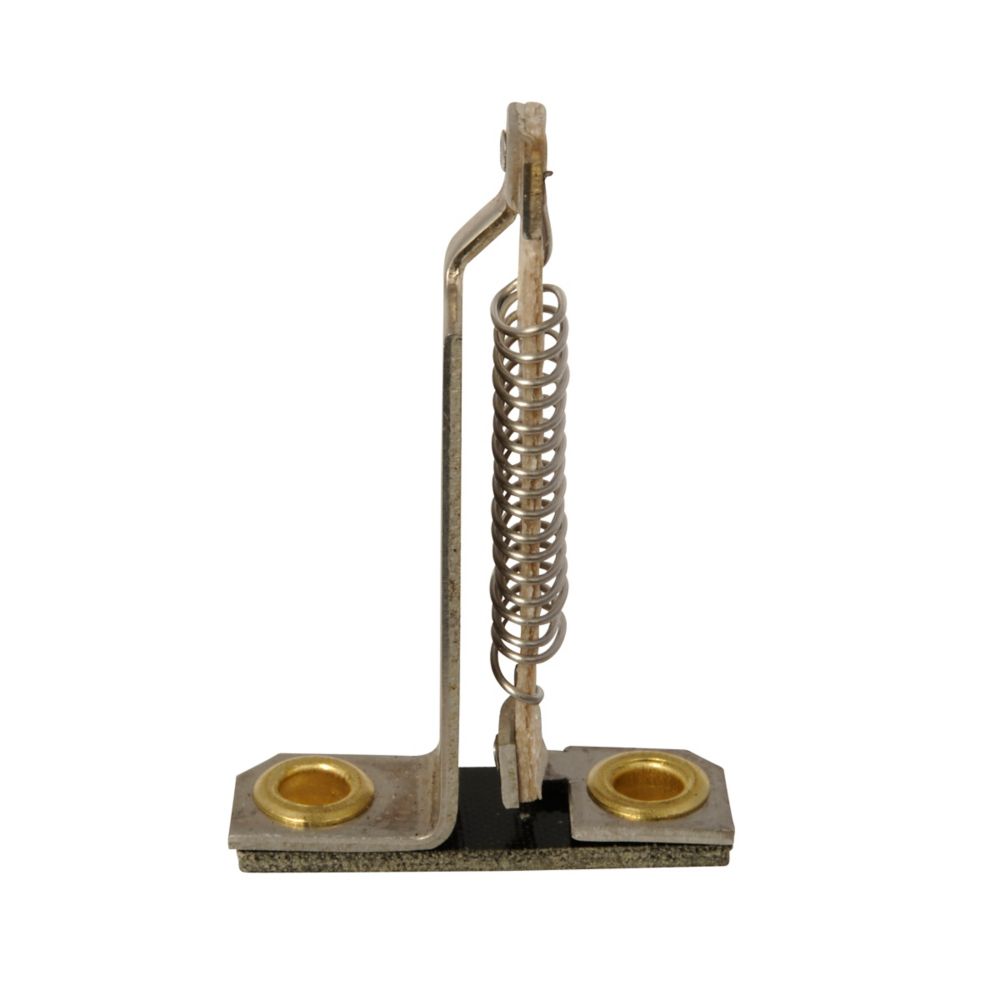

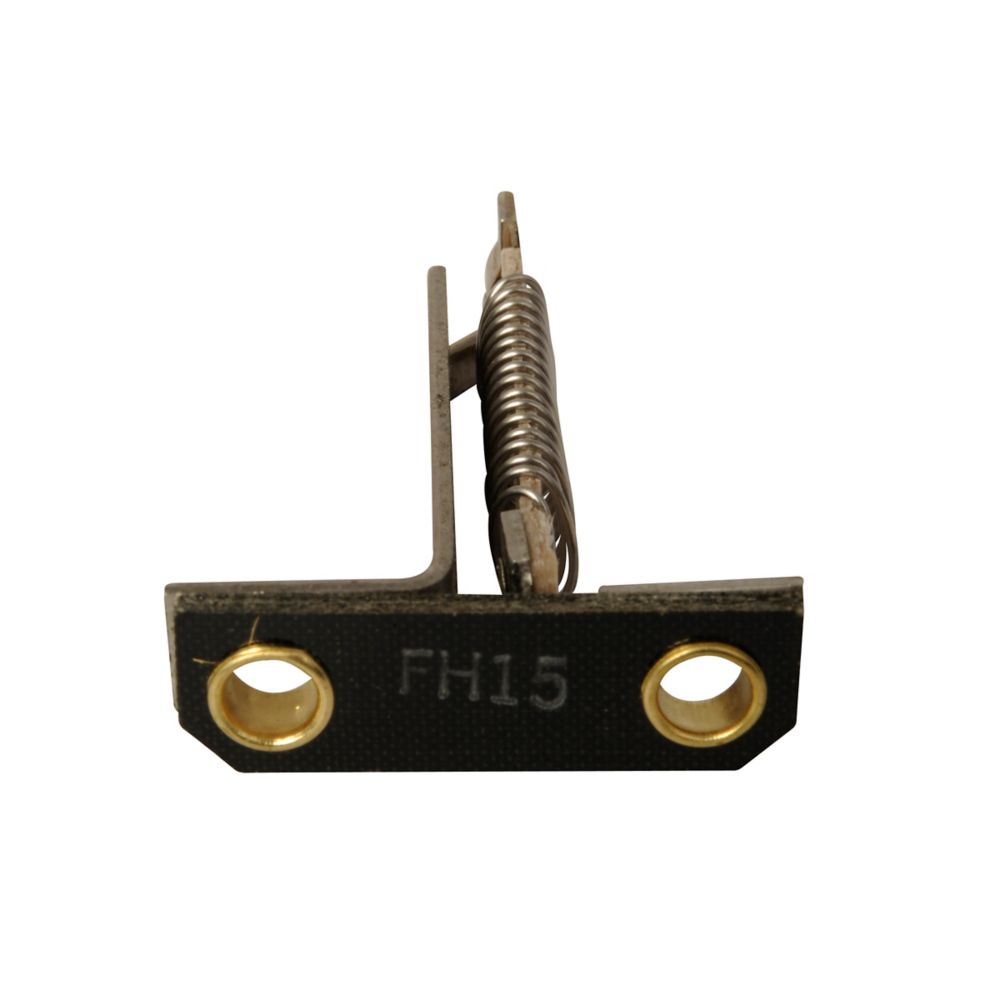

FH15 - Eaton Cutler Hammer - A200/B100 Heater
The Eaton FH15 is a heater element for thermal overload relays in the A200/B100 series, ideal for Starter Sizes 0, 1, and 2. It features an ambient full load range of 0.84–1.06 A, with non-compensated ranges of 0.78–1.03 A, offering reliable thermal protection with similar certifications and warranty coverage as the FH03.
GENERAL SPECIFICATIONS
| Product Name |
Eaton A200/B100 heater
|
| Catalog Number |
FH15
|
| UPC |
786678629322
|
| Product Length/Depth |
2.1 in
|
| Product Height |
0.8 in
|
| Product Width |
1.3 in
|
| Product Weight |
0.03 lb
|
| Certifications |
UL Listed
CSA Certified |
| Catalog Notes |
Select heater coils based on full load current(FLA) shown on motor nameplate. Heater coils are rated to protect 40 degree C rise and a service factor of 1.15, Single-Phase requires 2 heaters, Three-Phase Requires 3 heaters
|
| Global Catalog |
FH15
|
PRODUCT SPECIFICATIONS
| Special features |
Used with Starter Sizes 0,1, and 2
|
| Type |
A200/B100 Heater
|
| Used with |
Used with Starter Sizes 0,1, and 2
|
| Design |
NEMA
|
| Full load current range |
Ambient 0.84-0.91, 0.97-1.06 A, Non-Comp 0.78-0.85, 0.95-1.03 A
|
| Overload relay |
Type A and B
|
| Trip type |
Thermal and fast trip
|
