Description

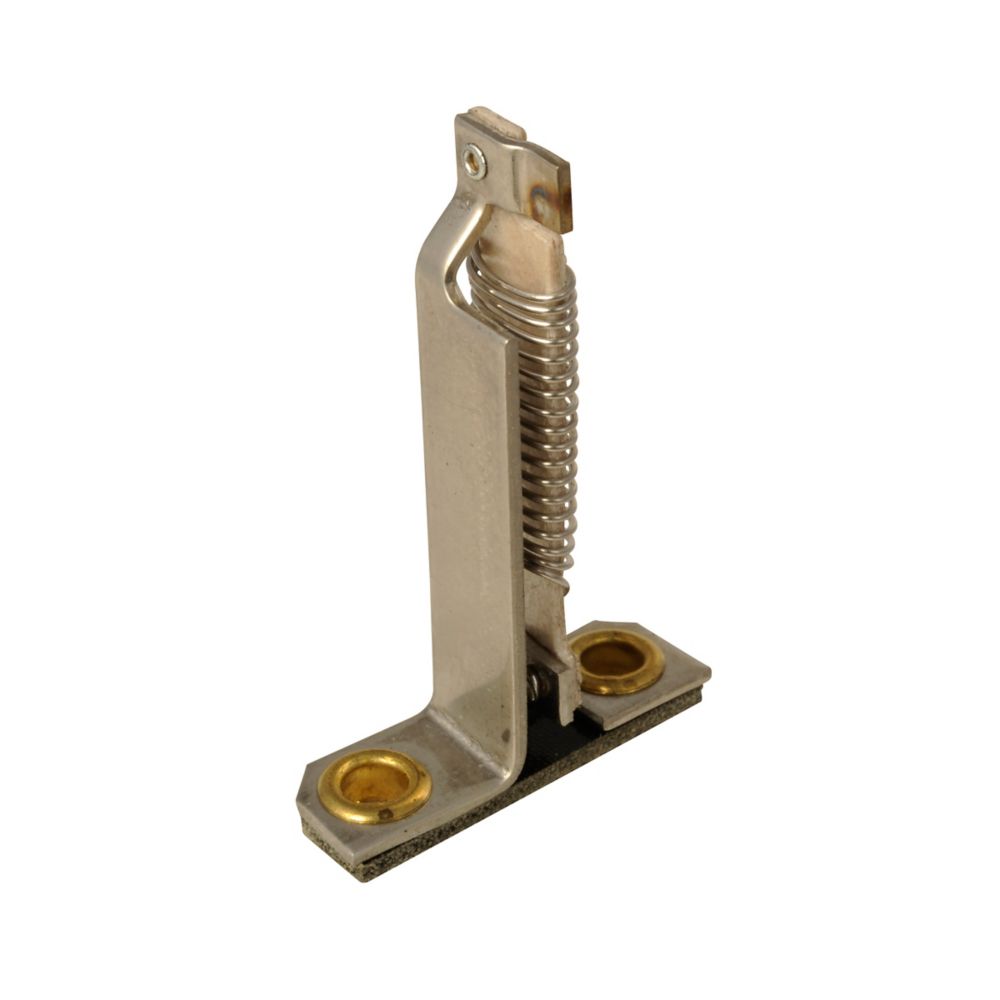

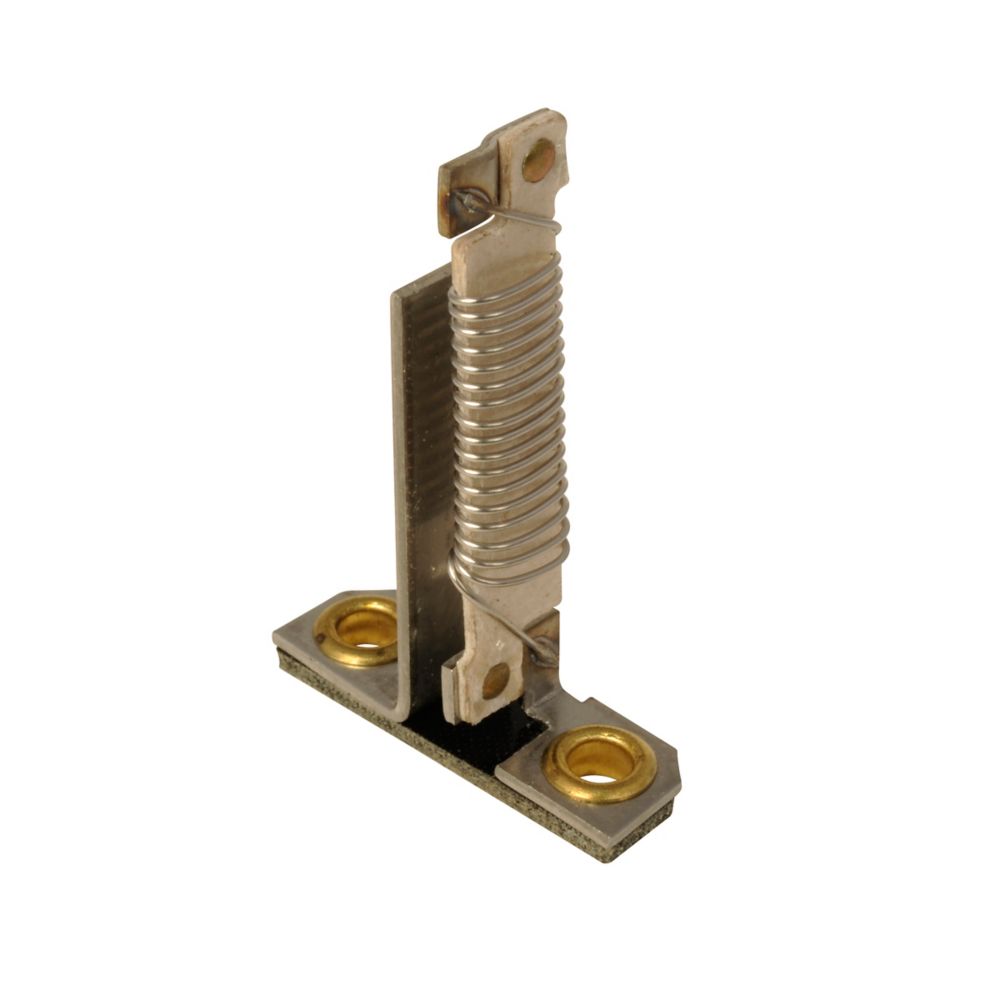

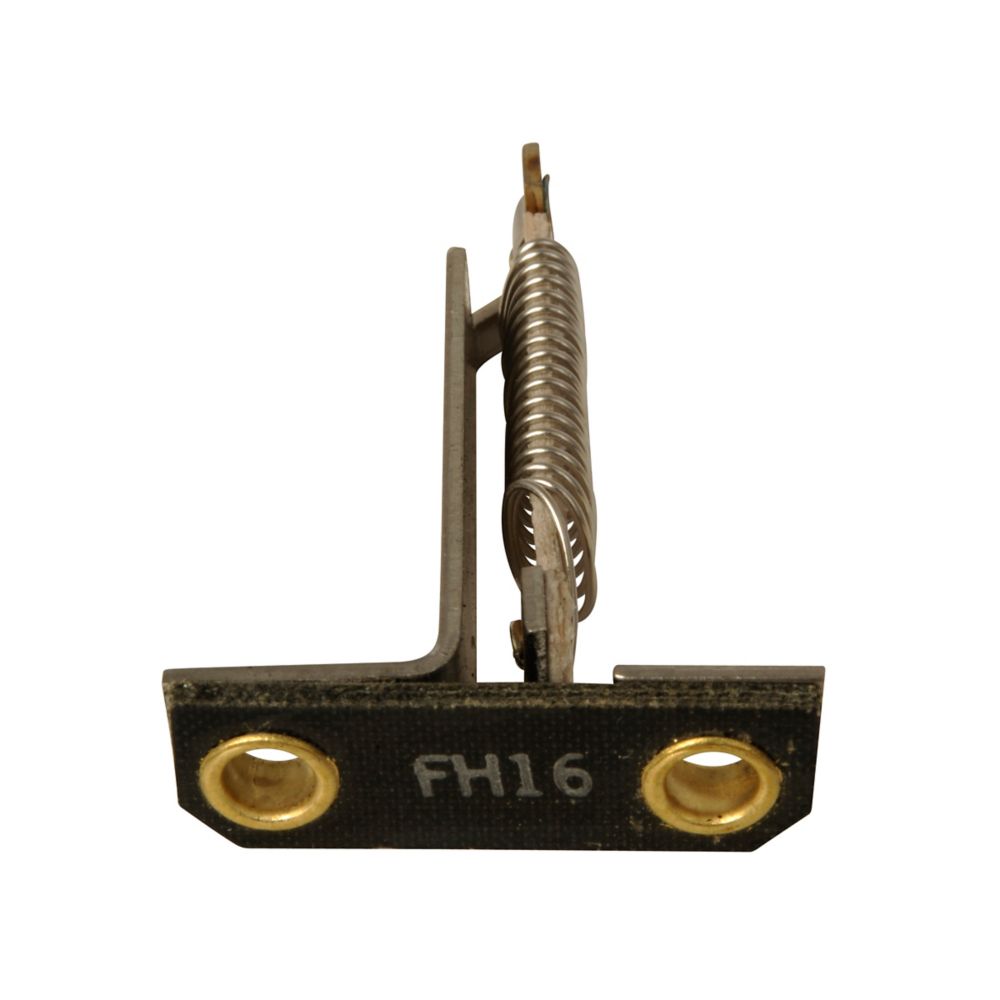

FH16 - Eaton Cutler Hammer - A200/B100 Heater
The Eaton FH16 serves as a thermal overload relay heater element compatible with A200/B100 starter relays (Sizes 0, 1, and 2). It supports an ambient FLA range of 0.92–1.16 A, with non-compensated ranges of 0.86–1.13 A, making it suitable for moderate-current applications while retaining the same rugged packaging and certification standards.
GENERAL SPECIFICATIONS
| Product Name |
Eaton A200/B100 heater
|
| Catalog Number |
FH16
|
| UPC |
786678629353
|
| Product Length/Depth |
2.1 in
|
| Product Height |
0.8 in
|
| Product Width |
1.3 in
|
| Product Weight |
0.03 lb
|
| Certifications |
UL Listed
CSA Certified |
| Catalog Notes |
Select heater coils based on full load current(FLA) shown on motor nameplate. Heater coils are rated to protect 40 degree C rise and a service factor of 1.15, Single-Phase requires 2 heaters, Three-Phase Requires 3 heaters
|
| Global Catalog |
FH16
|
PRODUCT SPECIFICATIONS
| Special features |
Used with Starter Sizes 0,1, and 2
|
| Type |
A200/B100 Heater
|
| Used with |
Used with Starter Sizes 0,1, and 2
|
| Design |
NEMA
|
| Full load current range |
Ambient 0.92-1.00, 1.07-1.16 A, Non-Comp 0.86-0.93, 1.04-1.13 A
|
| Overload relay |
Type A and B
|
| Trip type |
Thermal and fast trip
|
