Description

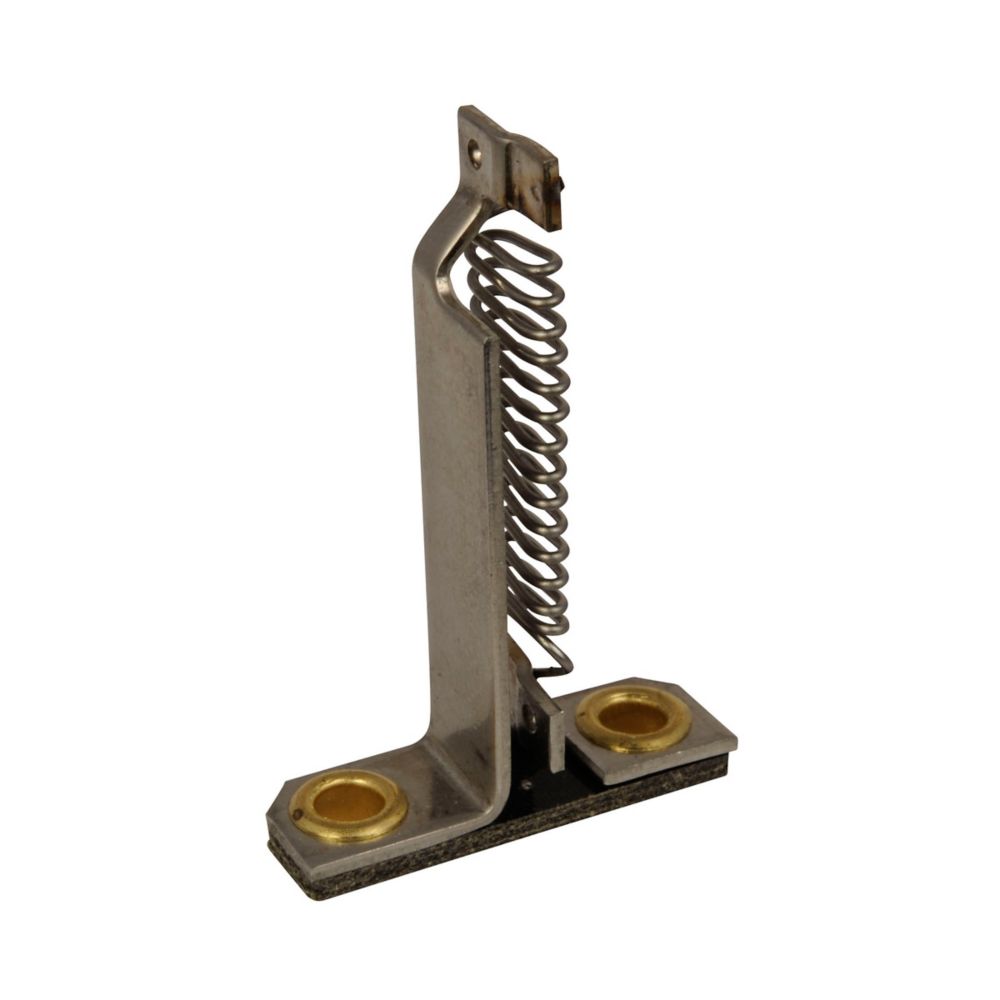

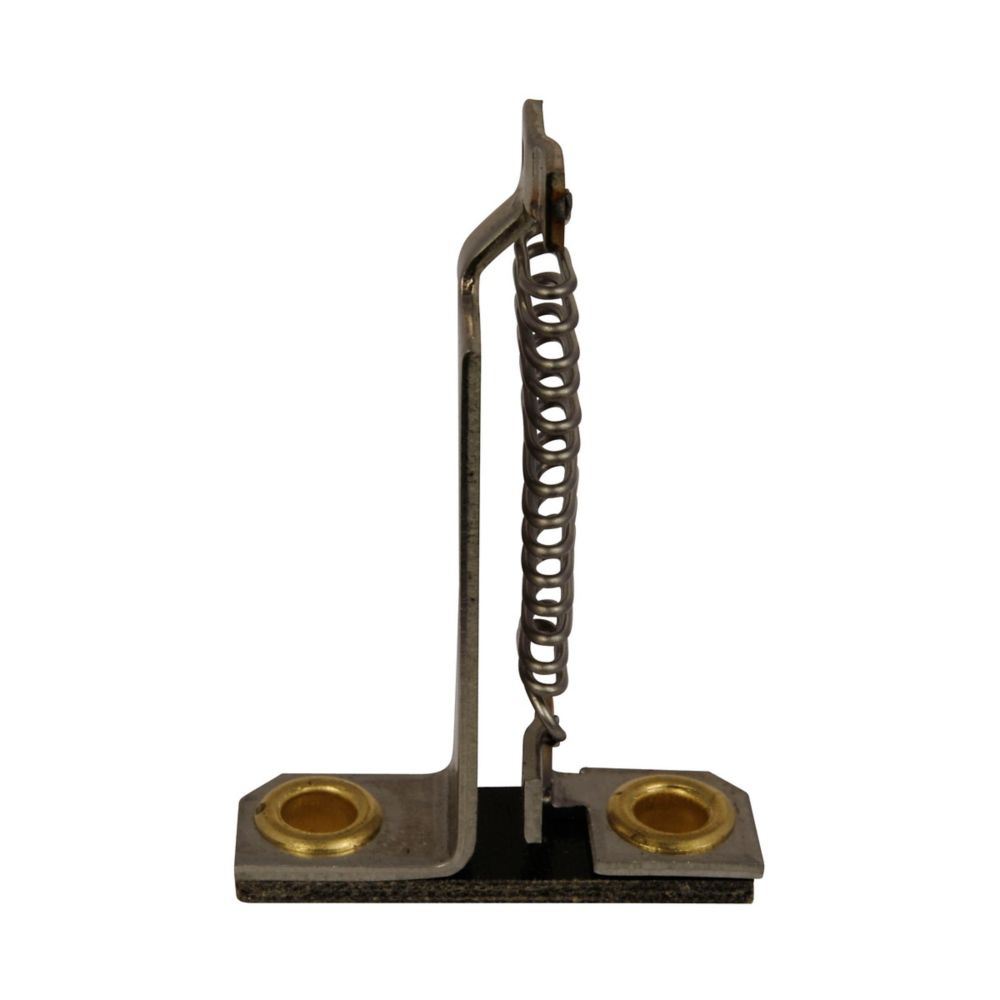

FH19 - Aton Eaton Cutler Hammer - 1.67A A200/B100 Heater
The Eaton FH19 heater belongs to the A200/B100 series and is compatible with NEMA Starter Sizes 0, 1, and 2. It is rated for specific low-amp motor protection, offering safe and efficient overload handling. Like others in the series, it works with Type A and B overload relays for reliable performance.
GENERAL SPECIFICATIONS
| Product Name |
Eaton A200/B100 heater
|
| Catalog Number |
FH19
|
| UPC |
786678629445
|
| Product Length/Depth |
2.1 in
|
| Product Height |
0.8 in
|
| Product Width |
1.3 in
|
| Product Weight |
0.03 lb
|
| Certifications |
UL Listed
CSA Certified |
| Catalog Notes |
Select heater coils based on full load current(FLA) shown on motor nameplate. Heater coils are rated to protect 40 degree C rise and a service factor of 1.15, Single-Phase requires 2 heaters, Three-Phase Requires 3 heaters
|
| Global Catalog |
FH19
|
PRODUCT SPECIFICATIONS
| Special features |
Used with Starter Sizes 0,1, and 2
|
| Type |
A200/B100 Heater
|
| Used with |
Used with Starter Sizes 0,1, and 2
|
| Design |
NEMA
|
| Full load current range |
Ambient 1.23-1.34, 1.42-1.55 A, Non-Comp 1.26-1.37, 1.53-1.67 A
|
| Overload relay |
Type A and B
|
| Trip type |
Thermal and fast trip
|
