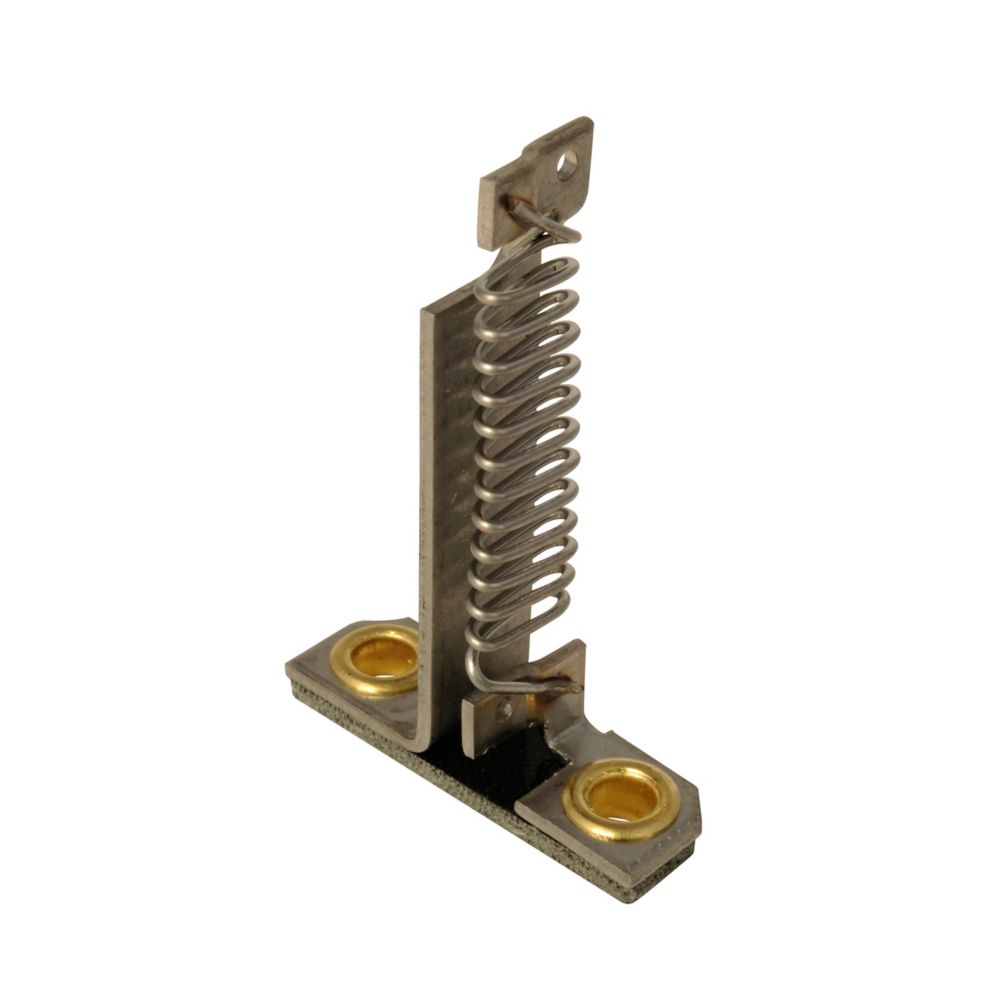

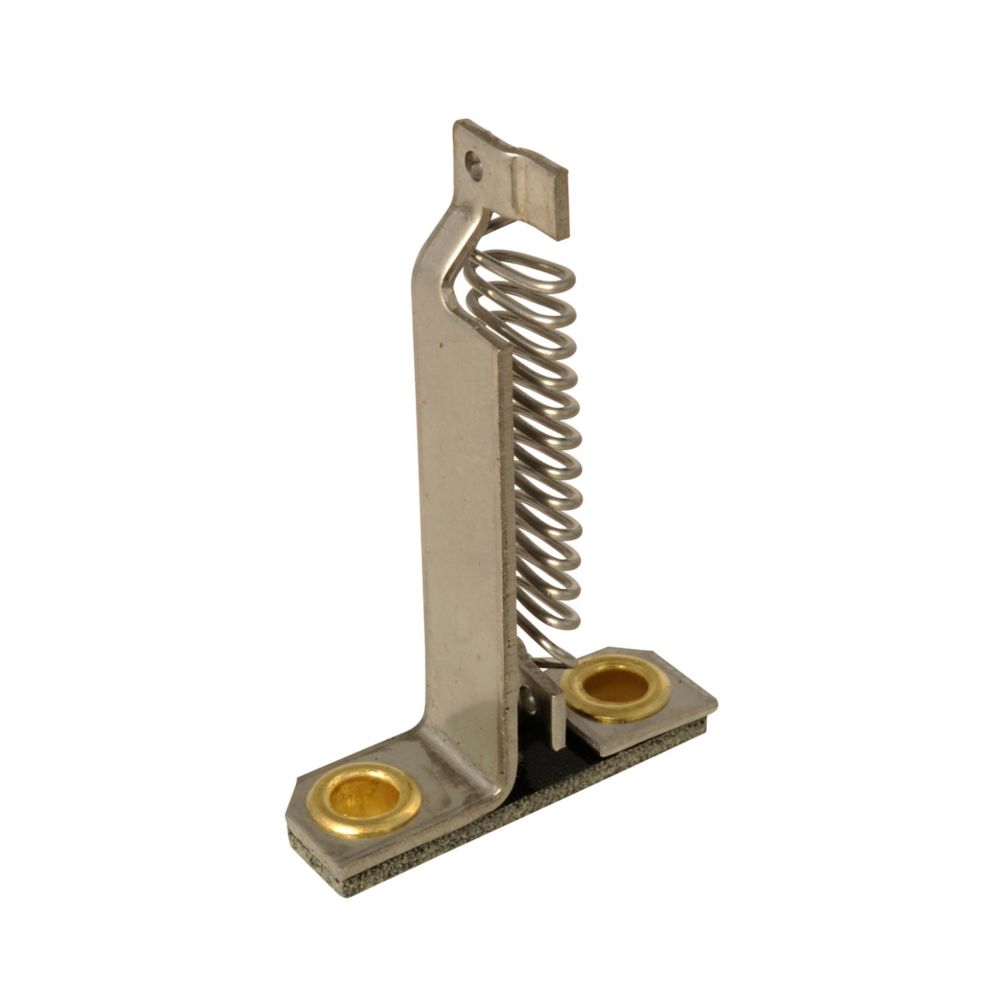

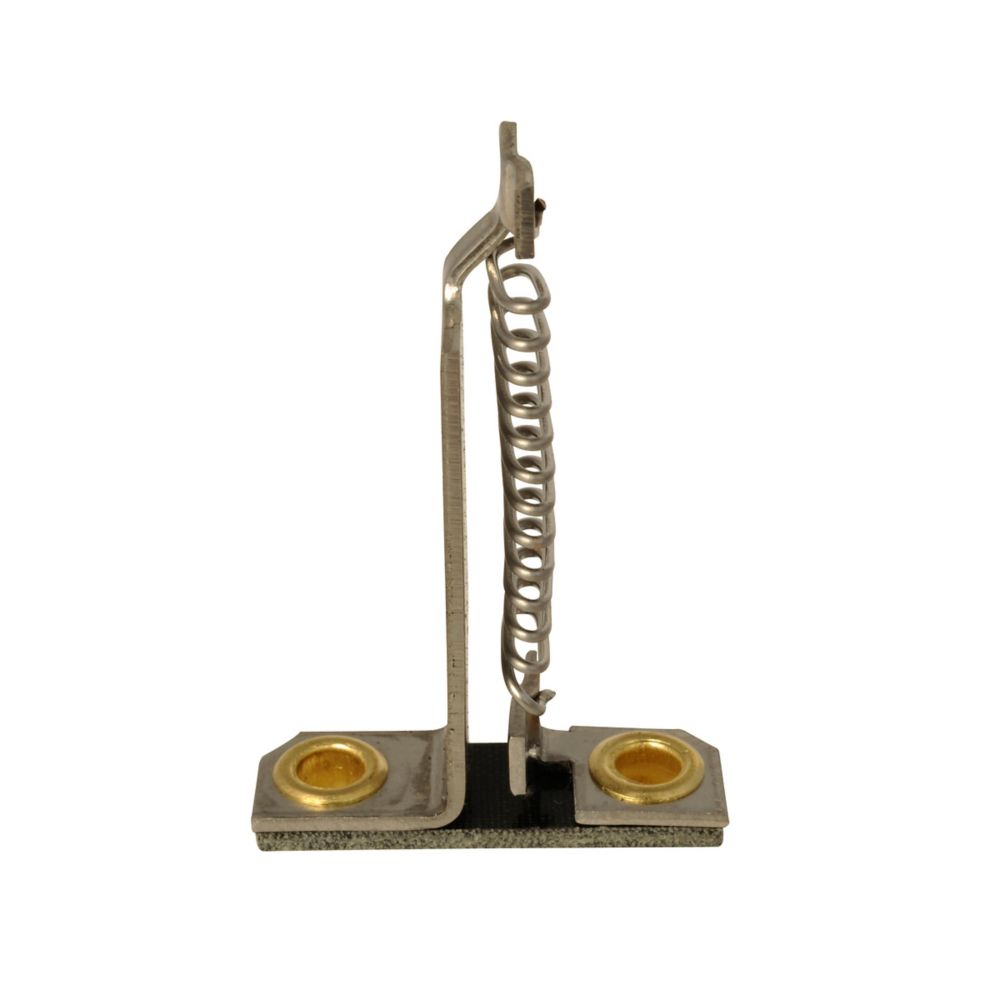

FH21 - Eaton Cutler Hammer - 1.83A A200/B100 Heater
The Eaton FH21 A200/B100 heater is engineered for NEMA Starter Sizes 0, 1, and 2, providing robust motor protection in industrial environments. It supports ambient full-load current ranges of approximately 1.48–1.62 A and 1.72–1.87 A, with non-compensated ranges from 1.38–1.51 A and 1.68–1.83 A, and delivers reliable response using Type A and B overload relays with both thermal and fast-trip capabilities.
GENERAL SPECIFICATIONS
| Product Name |
Eaton A200/B100 heater
|
| Catalog Number |
FH21
|
| UPC |
786678629506
|
| Product Length/Depth |
2.1 in
|
| Product Height |
0.8 in
|
| Product Width |
1.3 in
|
| Product Weight |
0.03 lb
|
| Certifications |
UL Listed
CSA Certified |
| Catalog Notes |
Select heater coils based on full load current(FLA) shown on motor nameplate. Heater coils are rated to protect 40 degree C rise and a service factor of 1.15, Single-Phase requires 2 heaters, Three-Phase Requires 3 heaters
|
| Global Catalog |
FH21
|
PRODUCT SPECIFICATIONS
| Special features |
Used with Starter Sizes 0,1, and 2
|
| Type |
A200/B100 Heater
|
| Used with |
Used with Starter Sizes 0,1, and 2
|
| Design |
NEMA
|
| Full load current range |
Ambient 1.48-1.62, 1.72-1.87 A, Non-Comp 1.38-1.51, 1.68-1.83 A
|
| Overload relay |
Type A and B
|
| Trip type |
Thermal and fast trip
|
