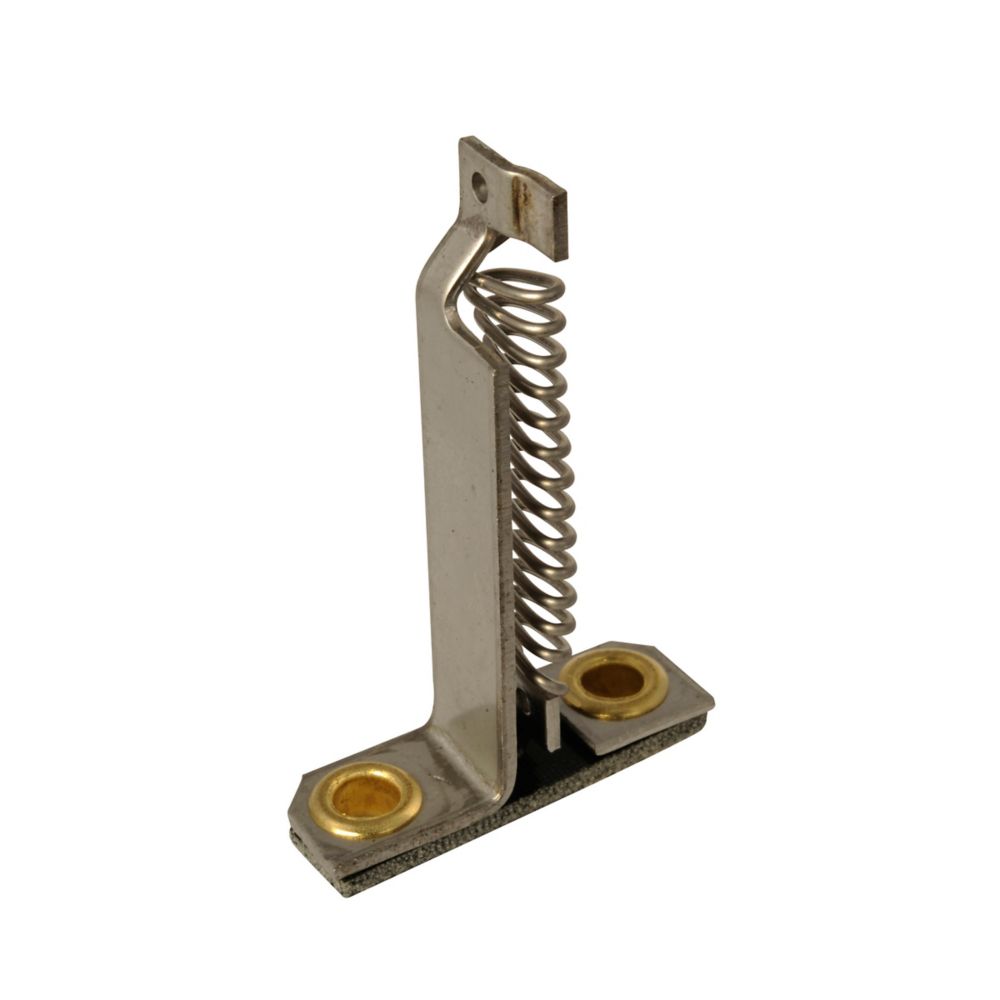

FH22 - Eaton Cutler Hammer - 2.01A A200/B100 Heater
The FH22 A200/B100 heater is also designed for NEMA Starter Sizes 0, 1, and 2 and features a compact NEMA design. It handles ambient full-load currents ranging from about 1.63–1.78 A up to 1.88–2.06 A, and corresponding non-compensated ranges between 1.52–1.65 A and 1.84–2.01 A, while offering both thermal and fast-trip protection via Type A and B relays.
GENERAL SPECIFICATIONS
| Product Name |
Eaton A200/B100 heater
|
| Catalog Number |
FH22
|
| UPC |
786678629537
|
| Product Length/Depth |
2.1 in
|
| Product Height |
0.8 in
|
| Product Width |
1.3 in
|
| Product Weight |
0.03 lb
|
| Certifications |
UL Listed
CSA Certified |
| Catalog Notes |
Select heater coils based on full load current(FLA) shown on motor nameplate. Heater coils are rated to protect 40 degree C rise and a service factor of 1.15, Single-Phase requires 2 heaters, Three-Phase Requires 3 heaters
|
| Global Catalog |
FH22
|
PRODUCT SPECIFICATIONS
| Special features |
Used with Starter Sizes 0,1, and 2
|
| Type |
A200/B100 Heater
|
| Used with |
Used with Starter Sizes 0,1, and 2
|
| Design |
NEMA
|
| Full load current range |
Ambient 1.63-1.78, 1.88-2.06 A, Non-Comp 1.52-1.65, 1.84-2.01 A
|
| Overload relay |
Type A and B
|
| Trip type |
Thermal and fast trip
|
