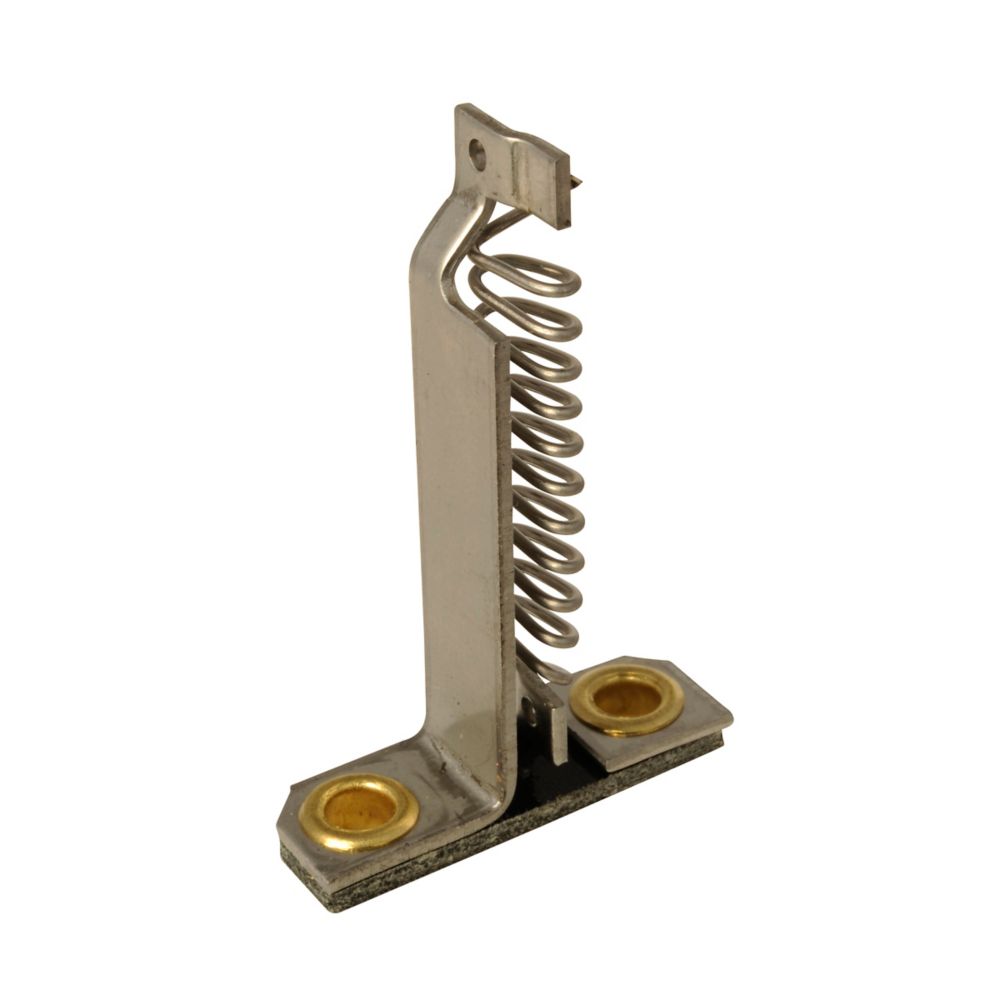

FH23 - Eaton Cutler Hammer - 2.21A A200/B100 Heater
Eaton’s FH23 heater maintains compatibility with Starter Sizes 0, 1, and 2 and meets NEMA design standards. It covers ambient full-load current ranges from approximately 1.79–1.95 A to 2.07–2.26 A, with non-compensated ranges of about 1.66–1.81 A and 2.02–2.21 A, and ensures dependable motor overload protection with thermal and fast-trip functions using Type A and B relays
GENERAL SPECIFICATIONS
| Product Name |
Eaton A200/B100 heater
|
| Catalog Number |
FH23
|
| UPC |
786678629568
|
| Product Length/Depth |
2.1 in
|
| Product Height |
0.8 in
|
| Product Width |
1.3 in
|
| Product Weight |
0.03 lb
|
| Certifications |
UL Listed
CSA Certified |
| Catalog Notes |
Select heater coils based on full load current(FLA) shown on motor nameplate. Heater coils are rated to protect 40 degree C rise and a service factor of 1.15, Single-Phase requires 2 heaters, Three-Phase Requires 3 heaters
|
| Global Catalog |
FH23
|
PRODUCT SPECIFICATIONS
| Special features |
Used with Starter Sizes 0,1, and 2
|
| Type |
A200/B100 Heater
|
| Used with |
Used with Starter Sizes 0,1, and 2
|
| Design |
NEMA
|
| Full load current range |
Ambient 1.79-1.95, 2.07-2.26 A, Non-Comp 1.66-1.81, 2.02-2.21 A
|
| Overload relay |
Type A and B
|
| Trip type |
Thermal and fast trip
|
PRODUCT DATASHEET
