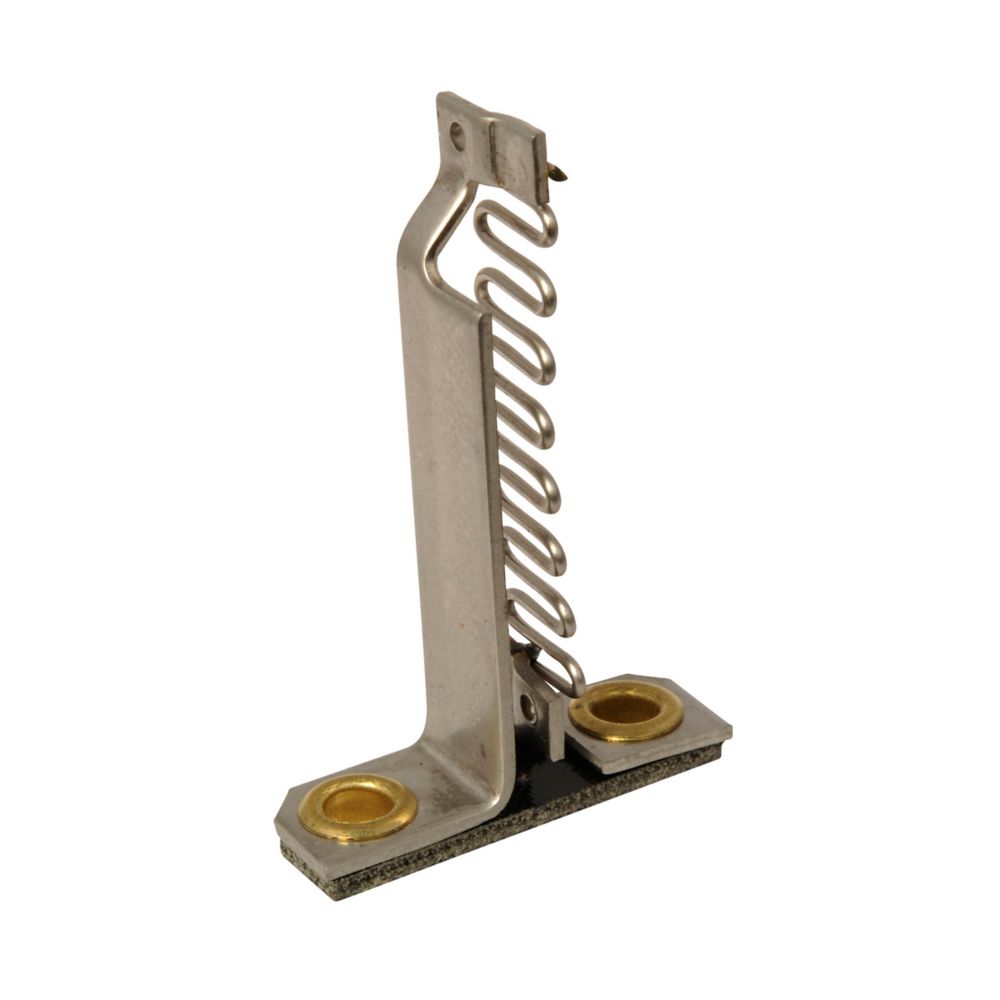

FH25 - Eaton Cutler Hammer - 2.67A A200/B100 Heater
The Eaton FH25 A200/B100 heater, designed for NEMA Starter Sizes 0, 1, and 2, delivers robust motor protection with ambient full-load currents ranging from approximately 2.16–2.35 A and 2.49–2.72 A, alongside non-compensated ranges of about 2.00–2.19 A and 2.44–2.67 A.
GENERAL SPECIFICATIONS
| Product Name |
Eaton A200/B100 heater
|
| Catalog Number |
FH25
|
| UPC |
786678629629
|
| Product Length/Depth |
2.1 in
|
| Product Height |
0.8 in
|
| Product Width |
1.3 in
|
| Product Weight |
0.03 lb
|
| Certifications |
UL Listed
CSA Certified |
| Catalog Notes |
Select heater coils based on full load current(FLA) shown on motor nameplate. Heater coils are rated to protect 40 degree C rise and a service factor of 1.15, Single-Phase requires 2 heaters, Three-Phase Requires 3 heaters
|
| Global Catalog |
FH25
|
PRODUCT SPECIFICATIONS
| Special features |
Used with Starter Sizes 0,1, and 2
|
| Type |
A200/B100 Heater
|
| Used with |
Used with Starter Sizes 0,1, and 2
|
| Design |
NEMA
|
| Full load current range |
Ambient 2.16-2.35, 2.49-2.72 A, Non-Comp 2.0-2.19, 2.44-2.67 A
|
| Overload relay |
Type A and B
|
| Trip type |
Thermal and fast trip
|
PRODUCT DATASHEET
