Description

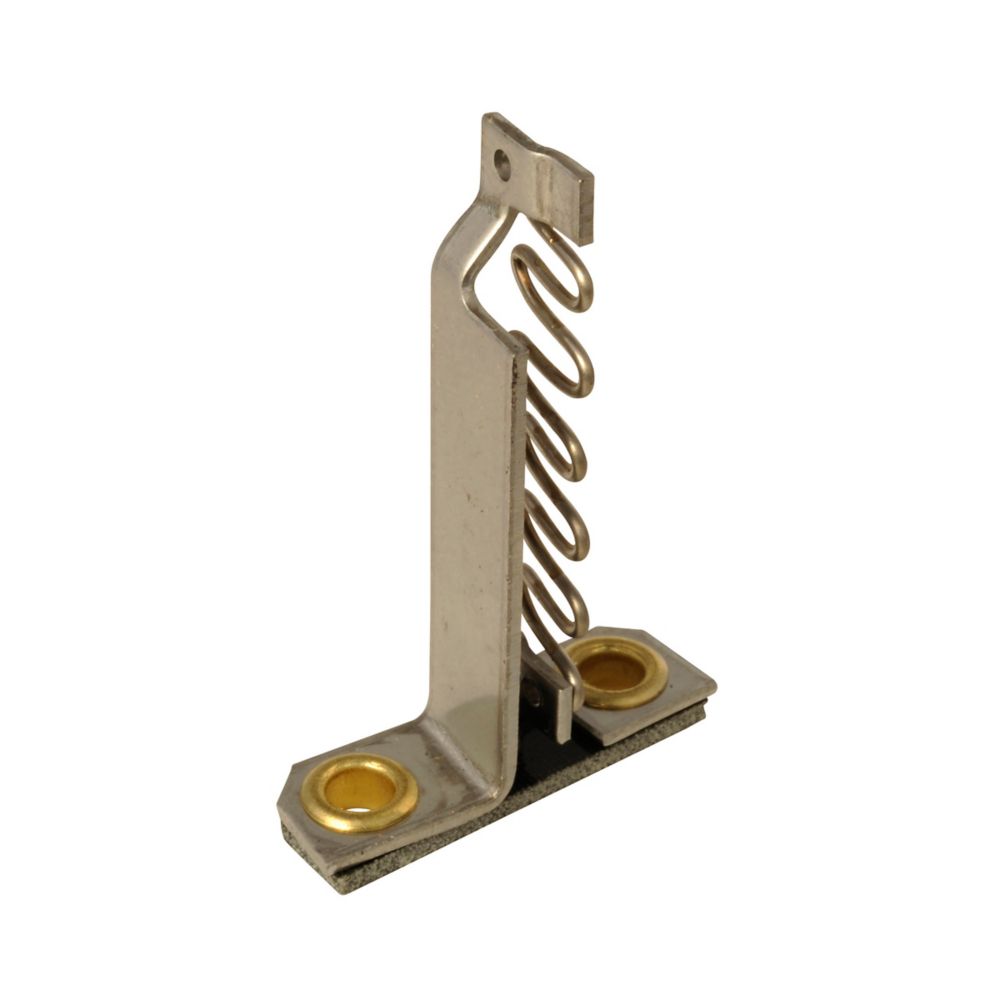

FH26 - Eaton Cutler Hammer - 2.92A A200/B100 Heater
The FH26 model is tailored for NEMA Starter Sizes 0, 1, and 2 and supports ambient full-load currents of about 2.36–2.58 A and 2.73–2.99 A, with non-compensated ranges from roughly 2.20–2.39 A and 2.67–2.92 A.
GENERAL SPECIFICATIONS
| Product Name |
Eaton A200/B100 heater
|
| Catalog Number |
FH26
|
| UPC |
786678629650
|
| Product Length/Depth |
2.1 in
|
| Product Height |
0.8 in
|
| Product Width |
1.3 in
|
| Product Weight |
0.02 lb
|
| Certifications |
CSA Certified
UL Listed |
| Catalog Notes |
Select heater coils based on full load current(FLA) shown on motor nameplate. Heater coils are rated to protect 40 degree C rise and a service factor of 1.15, Single-Phase requires 2 heaters, Three-Phase Requires 3 heaters
|
| Global Catalog |
FH26
|
PRODUCT SPECIFICATIONS
| Special features |
Used with Starter Sizes 0,1, and 2
|
| Type |
A200/B100 Heater
|
| Used with |
Used with Starter Sizes 0,1, and 2
|
| Design |
NEMA
|
| Full load current range |
Ambient 2.36-2.58, 2.73-2.99 A, Non-Comp 2.20-2.39 2.67-2.92 A
|
| Overload relay |
Type A and B
|
| Trip type |
Thermal and fast trip
|
