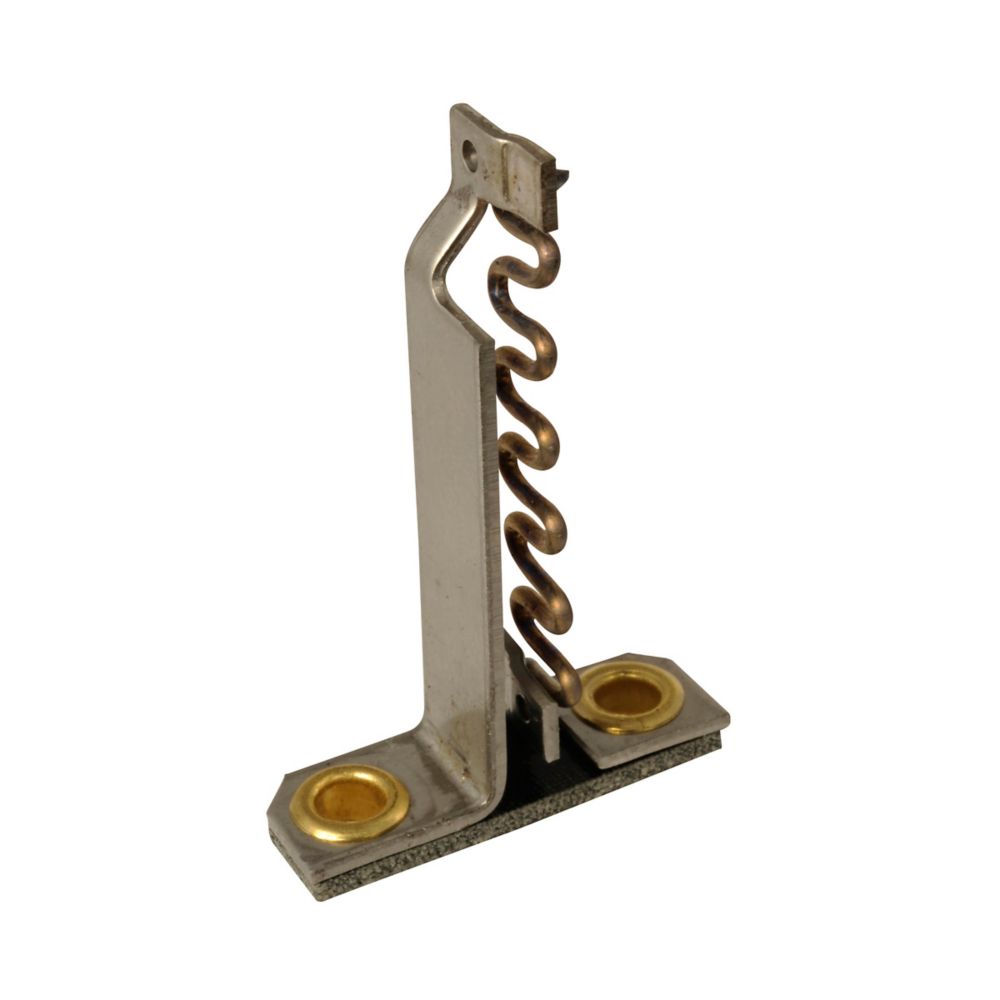

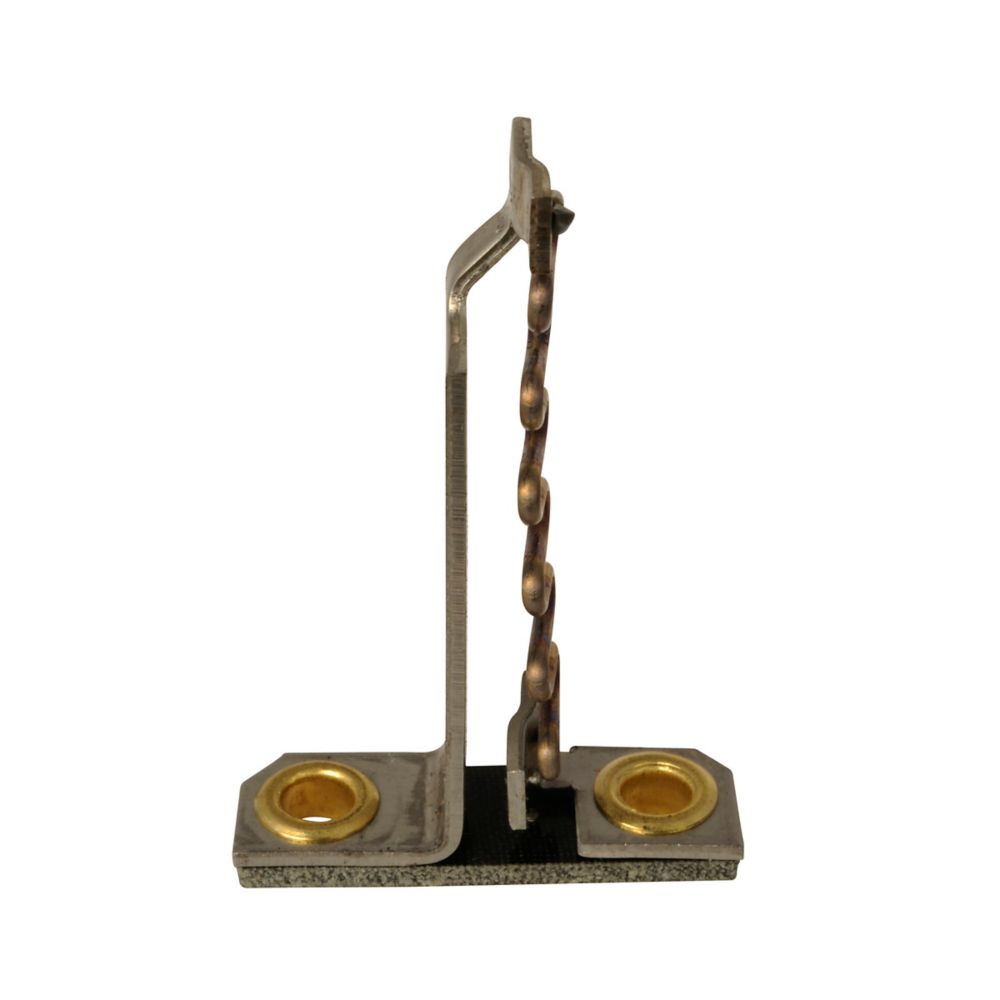

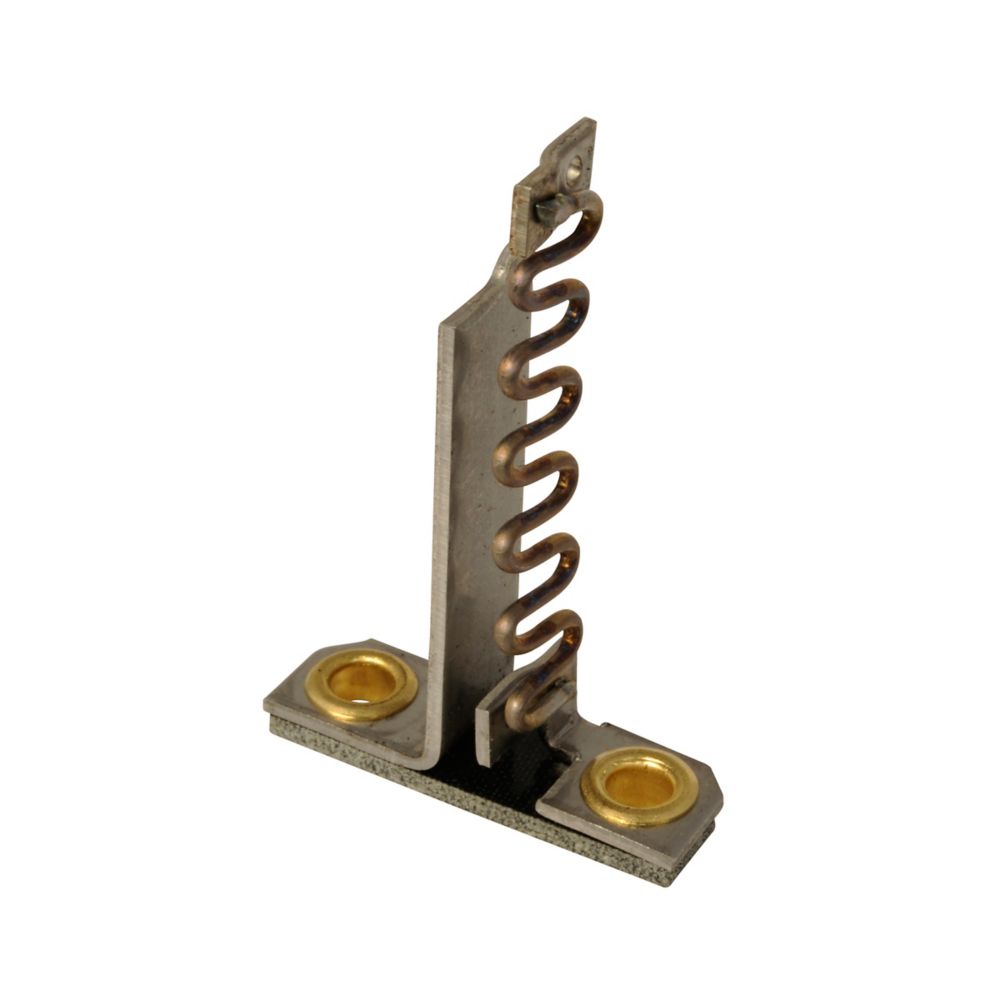

FH30 - Eaton Cutler Hammer - 4.22A A200/B100 Heater
The Eaton FH30 A200/B100 heater, compatible with NEMA Starter Sizes 0, 1, and 2, supports ambient full-load current ranges of roughly 3.43–3.73 A and 3.96–4.31 A, as well as non-compensated ranges of about 3.18–3.47 A and 3.88–4.22 A. Built for performance and durability, it features both thermal and fast-trip overload protection via Type A and B relays. It stands as a dependable choice for precise motor protection applications.
GENERAL SPECIFICATIONS
| Product Name |
Eaton A200/B100 heater
|
| Catalog Number |
FH30
|
| UPC |
786678629773
|
| Product Length/Depth |
2.1 in
|
| Product Height |
0.8 in
|
| Product Width |
1.3 in
|
| Product Weight |
0.03 lb
|
| Certifications |
CSA Certified
UL Listed |
| Catalog Notes |
Select heater coils based on full load current(FLA) shown on motor nameplate. Heater coils are rated to protect 40 degree C rise and a service factor of 1.15, Single-Phase requires 2 heaters, Three-Phase Requires 3 heaters
|
| Global Catalog |
FH30
|
PRODUCT SPECIFICATIONS
| Special features |
Used with Starter Sizes 0,1, and 2
|
| Type |
A200/B100 Heater
|
| Used with |
Used with Starter Sizes 0,1, and 2
|
| Design |
NEMA
|
| Full load current range |
Ambient 3.43-3.73, 3.96-4.31 A, Non-Comp 3.18-3.47, 3.88-4.22 A
|
| Overload relay |
Type A and B
|
| Trip type |
Thermal and fast trip
|
