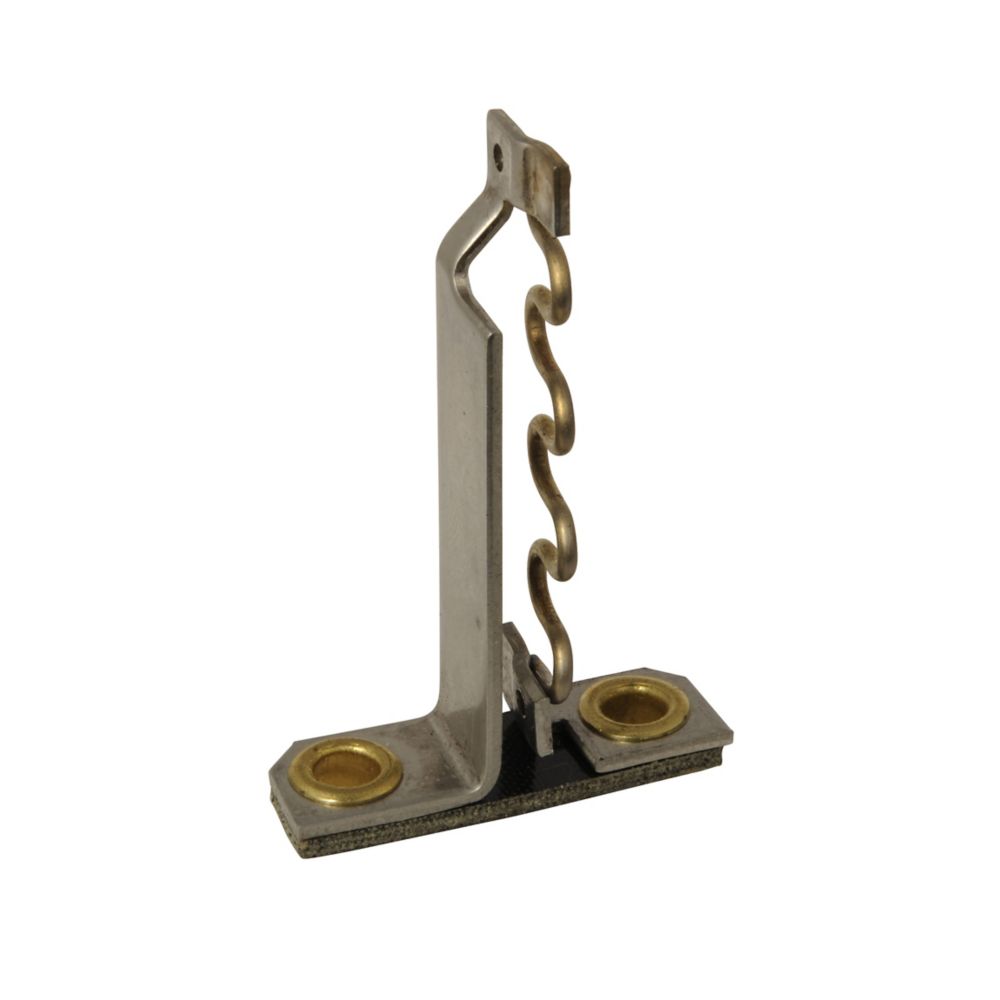

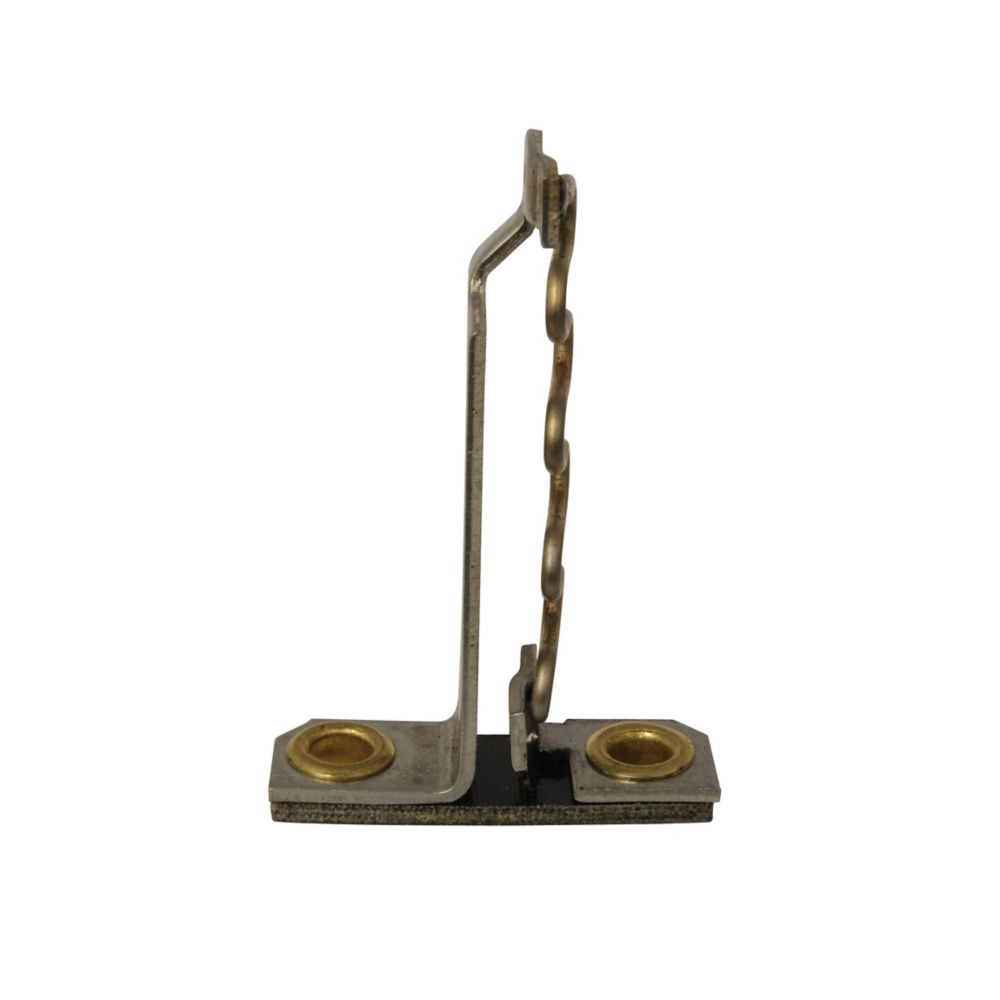

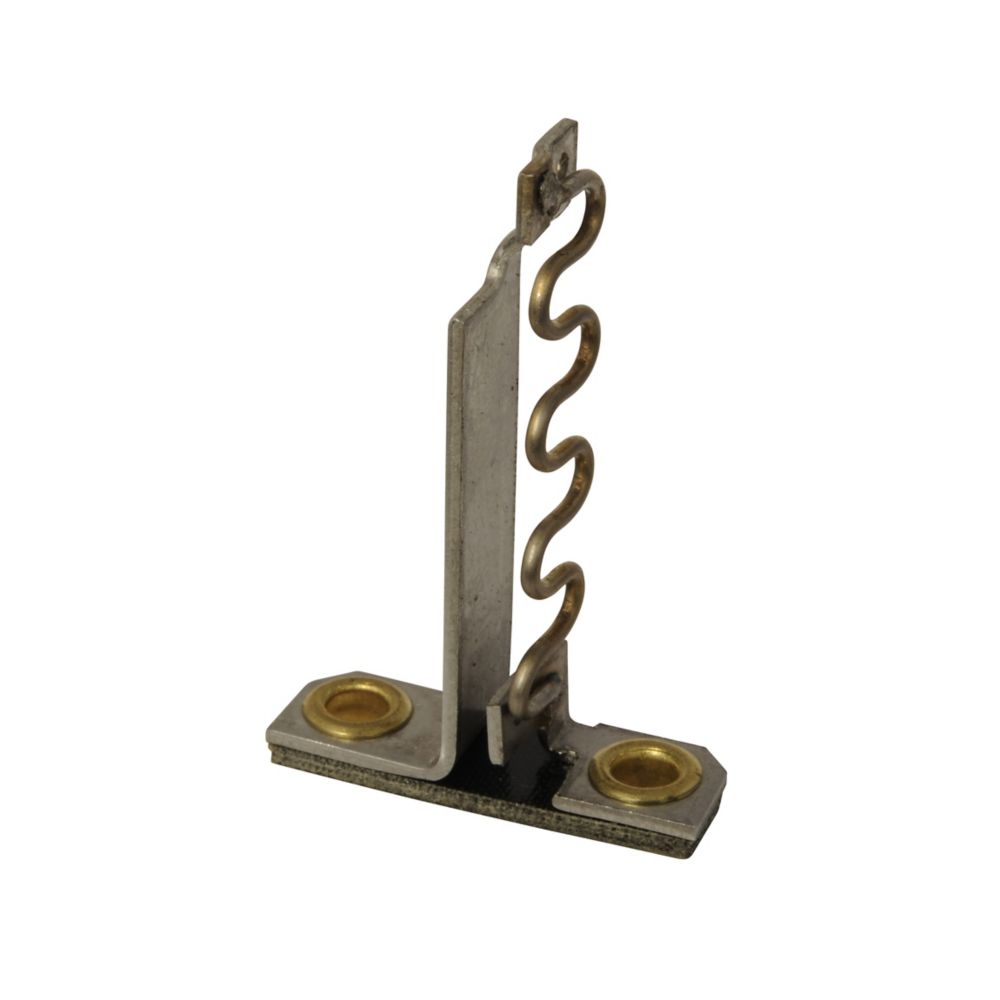

FH32 - Eaton Cutler Hammer - A200/B100 Heater
The Eaton FH32 A200/B100 heater is engineered for NEMA Starter Sizes 0, 1, and 2, providing ambient full-load current ranges of approximately 4.08–4.39 A and 4.72–5.14 A, with non-compensated ranges of 3.80–4.11 A and 4.62–4.90 A. It offers dependable motor overload protection using both Type A and B relays with thermal and fast-trip functionality. Compact yet rugged in design, the FH32 adheres to NEMA standards for reliable performance.
GENERAL SPECIFICATIONS
| Product Name |
Eaton A200/B100 heater
|
| Catalog Number |
FH32
|
| UPC |
786678629834
|
| Product Length/Depth |
2.1 in
|
| Product Height |
0.8 in
|
| Product Width |
1.3 in
|
| Product Weight |
0.03 lb
|
| Certifications |
UL Listed
CSA Certified |
| Catalog Notes |
Select heater coils based on full load current(FLA) shown on motor nameplate. Heater coils are rated to protect 40 degree C rise and a service factor of 1.15, Single-Phase requires 2 heaters, Three-Phase Requires 3 heaters
|
| Global Catalog |
FH32
|
PRODUCT SPECIFICATIONS
| Special features |
Used with Starter Sizes 0,1, and 2
|
| Type |
A200/B100 Heater
|
| Used with |
Used with Starter Sizes 0,1, and 2
|
| Design |
NEMA
|
| Full load current range |
Ambient 4.08-4.39, 4.72-5.14 A, Non-Comp 3.80-4.11, 4.62-4.9 A
|
| Overload relay |
Type A and B
|
| Trip type |
Thermal and fast trip
|
