Description

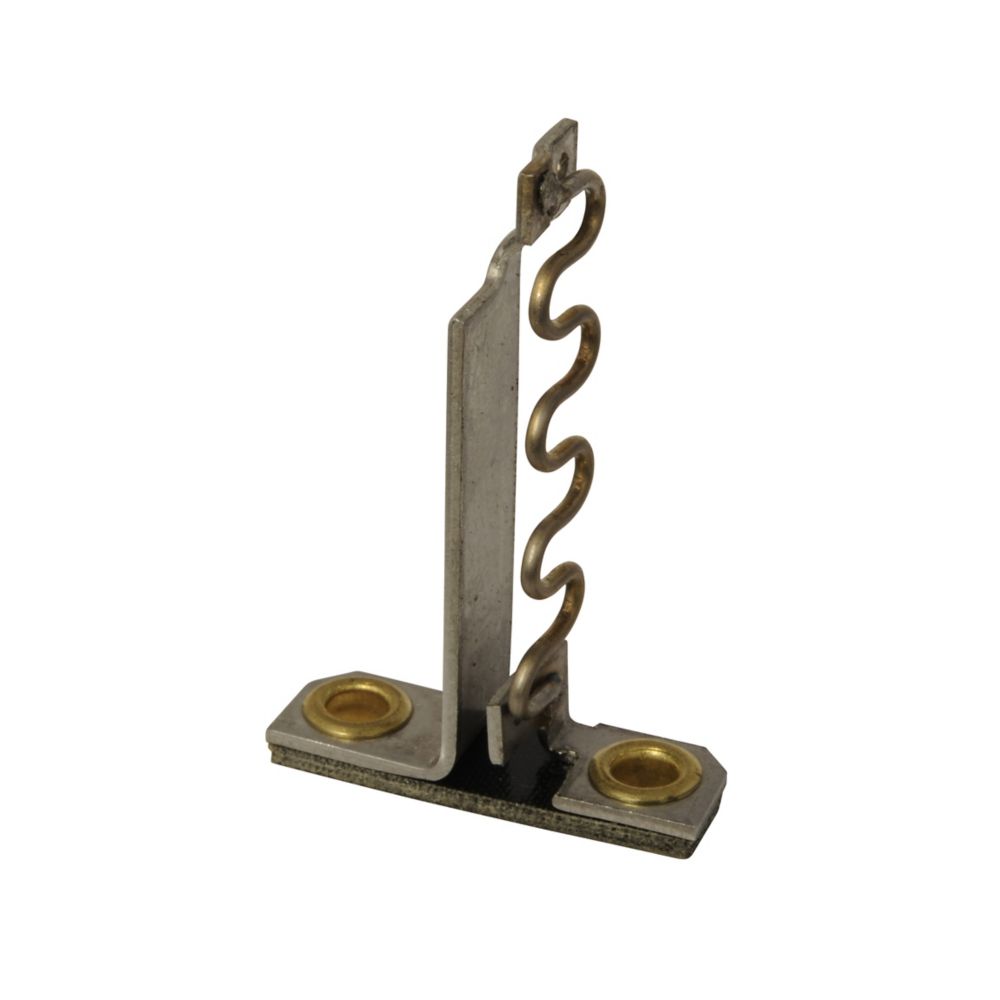

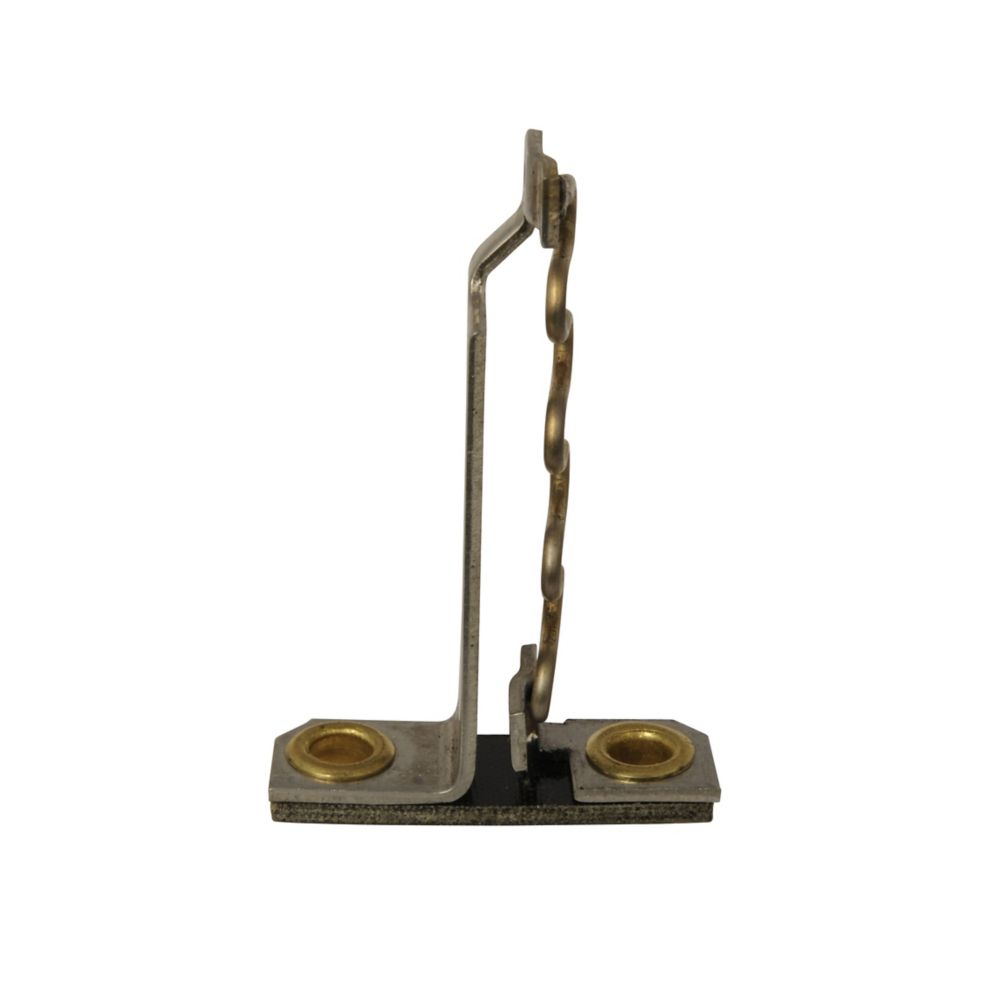

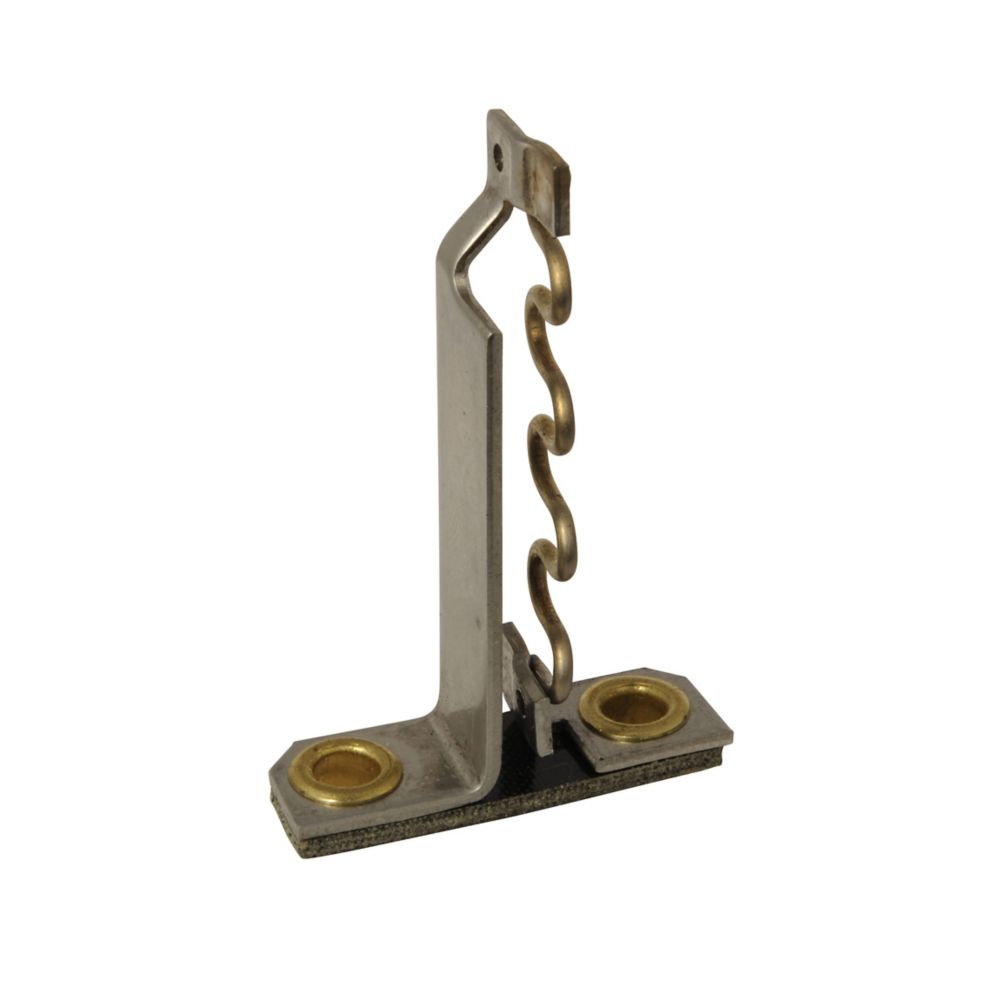

FH33 - Eaton Cutler Hammer - 5.5A A200/B100 Heater
The FH33 model fits A200/B100 Starters (Sizes 0–2) and supports ambient full-load current ranges between 4.40–4.87 A and 5.15–5.60 A, with non-compensated spans of 4.12–4.55 A and 5.00–5.50 A. It ensures effective motor protection via Type A and B overload relays offering both thermal and fast-trip responses. Sized similarly to its series counterparts, FH33 provides high reliability in compact form.
GENERAL SPECIFICATIONS
| Product Name |
Eaton A200/B100 heater
|
| Catalog Number |
FH33
|
| UPC |
786678629865
|
| Product Length/Depth |
2.1 in
|
| Product Height |
0.8 in
|
| Product Width |
1.3 in
|
| Product Weight |
0.03 lb
|
| Certifications |
UL Listed
CSA Certified |
| Catalog Notes |
Select heater coils based on full load current(FLA) shown on motor nameplate. Heater coils are rated to protect 40 degree C rise and a service factor of 1.15, Single-Phase requires 2 heaters, Three-Phase Requires 3 heaters
|
| Global Catalog |
FH33
|
PRODUCT SPECIFICATIONS
| Special features |
Used with Starter Sizes 0,1, and 2
|
| Type |
A200/B100 Heater
|
| Used with |
Used with Starter Sizes 0,1, and 2
|
| Design |
NEMA
|
| Full load current range |
Ambient 4.40-4.87, 5.15-5.6 A, Non-Comp 4.12-4.55, 5.0-5.5 A
|
| Overload relay |
Type A and B
|
| Trip type |
Thermal and fast trip
|
PRODUCT DATASHEET
