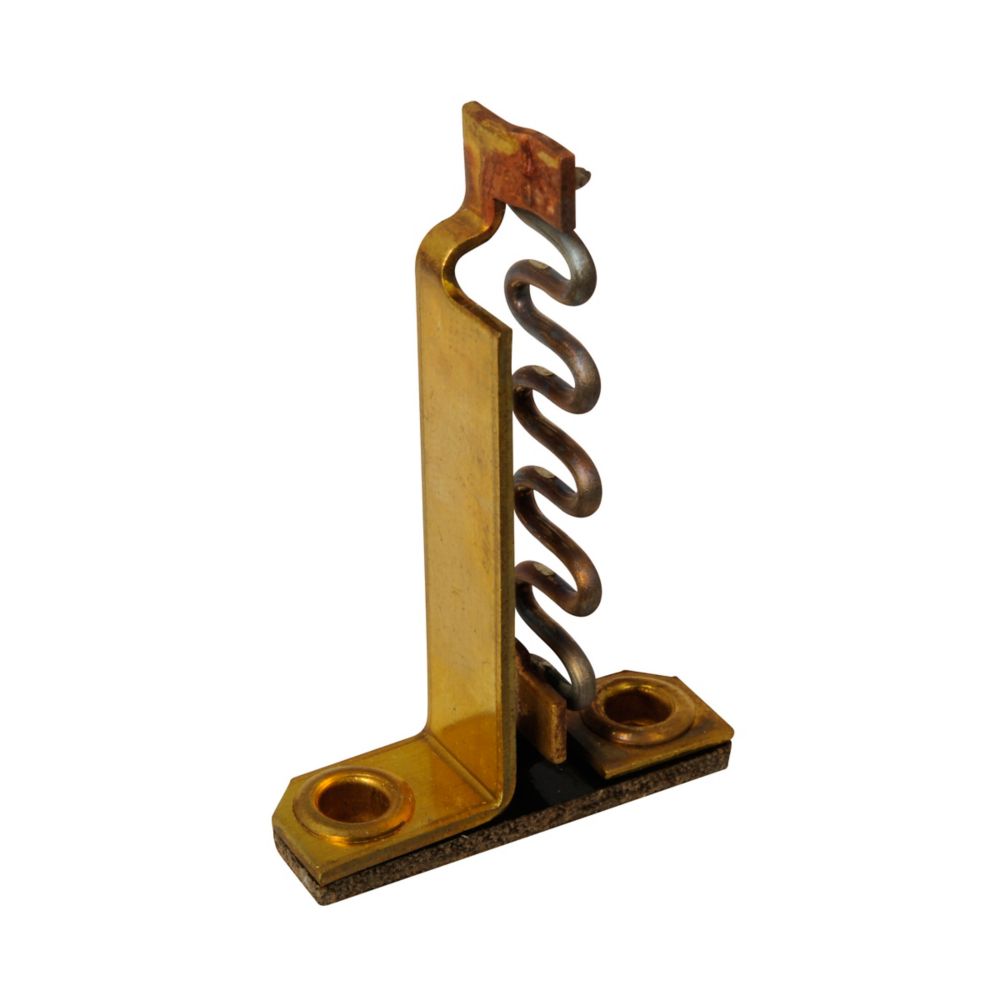

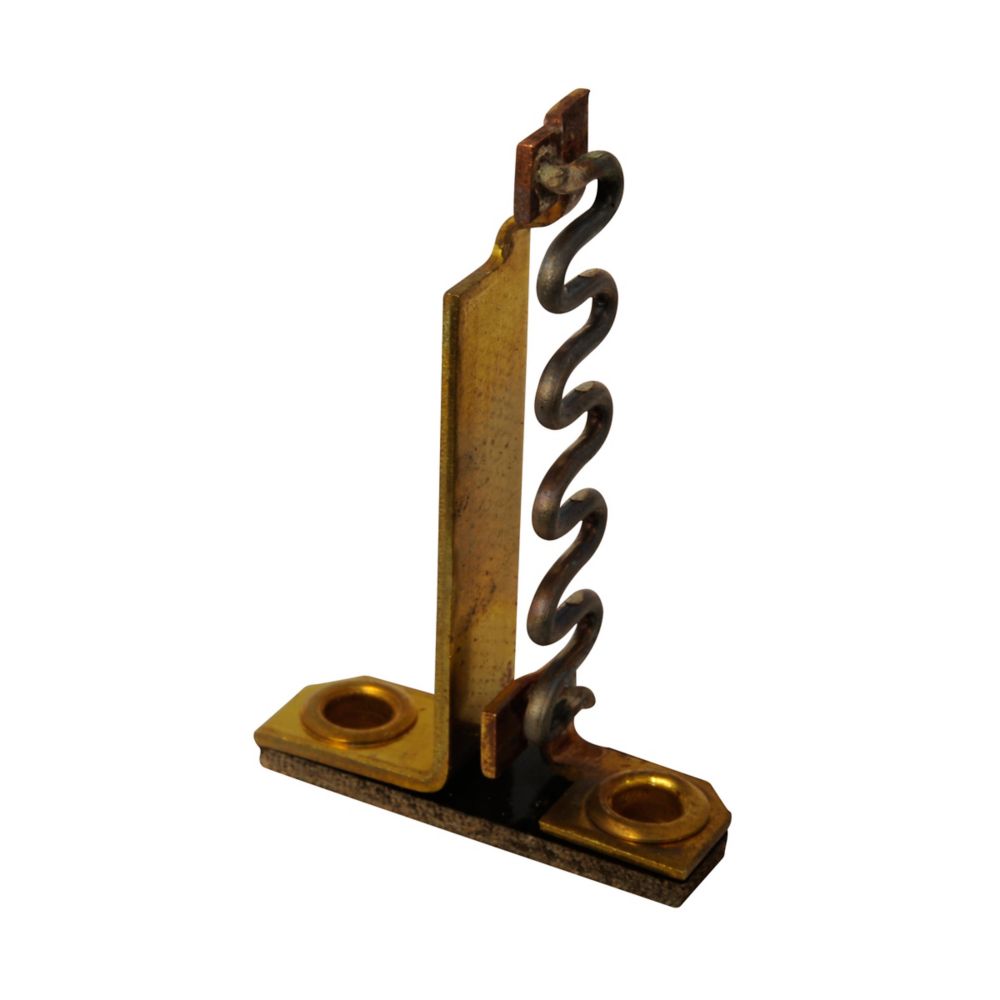

FH34 - Eaton Cutler Hammer - A200/B100 Heater
The Eaton FH34 A200/B100 heater suits NEMA Starter Sizes 0–2 and is rated for ambient full-load currents of approximately 4.88–5.30 A and 5.70–6.20 A, with non-compensated ranges of 4.56–5.00 A and 5.60–6.00 A. Equipped with Type A and B overload relays, it delivers both thermal and fast-trip protection for motor circuits. Compact NEMA design ensures reliable, space-saving integration.
GENERAL SPECIFICATIONS
| Product Name |
Eaton A200/B100 heater
|
| Catalog Number |
FH34
|
| UPC |
786678629896
|
| Product Length/Depth |
2.1 in
|
| Product Height |
0.8 in
|
| Product Width |
1.3 in
|
| Product Weight |
0.03 lb
|
| Certifications |
CSA Certified
UL Listed |
| Catalog Notes |
Select heater coils based on full load current(FLA) shown on motor nameplate. Heater coils are rated to protect 40 degree C rise and a service factor of 1.15, Single-Phase requires 2 heaters, Three-Phase Requires 3 heaters
|
| Global Catalog |
FH34
|
PRODUCT SPECIFICATIONS
| Special features |
Used with Starter Sizes 0,1, and 2
|
| Type |
A200/B100 Heater
|
| Used with |
Used with Starter Sizes 0,1, and 2
|
| Design |
NEMA
|
| Full load current range |
Ambient 4.88-5.30, 5.7-6.2 A, Non-Comp 4.56-5.0, 5.6-6.0 A
|
| Overload relay |
Type A and B
|
| Trip type |
Thermal and fast trip
|
