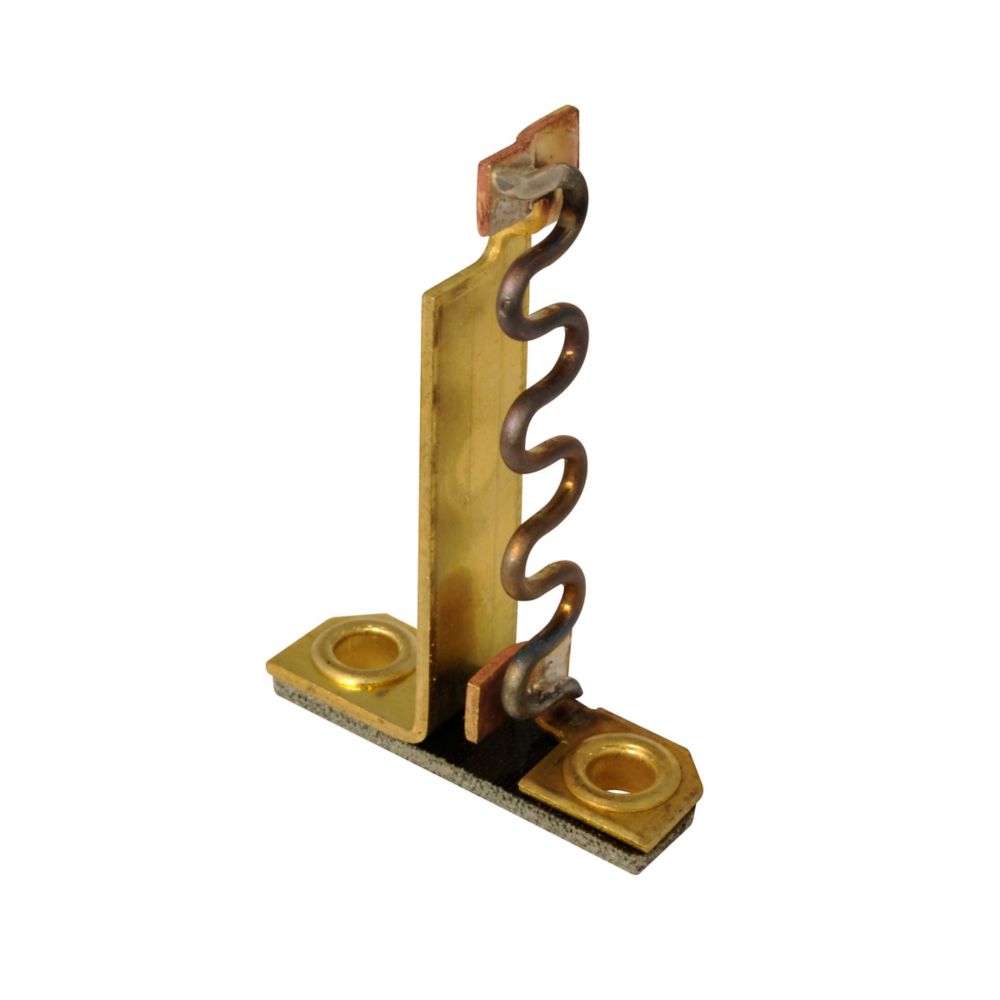

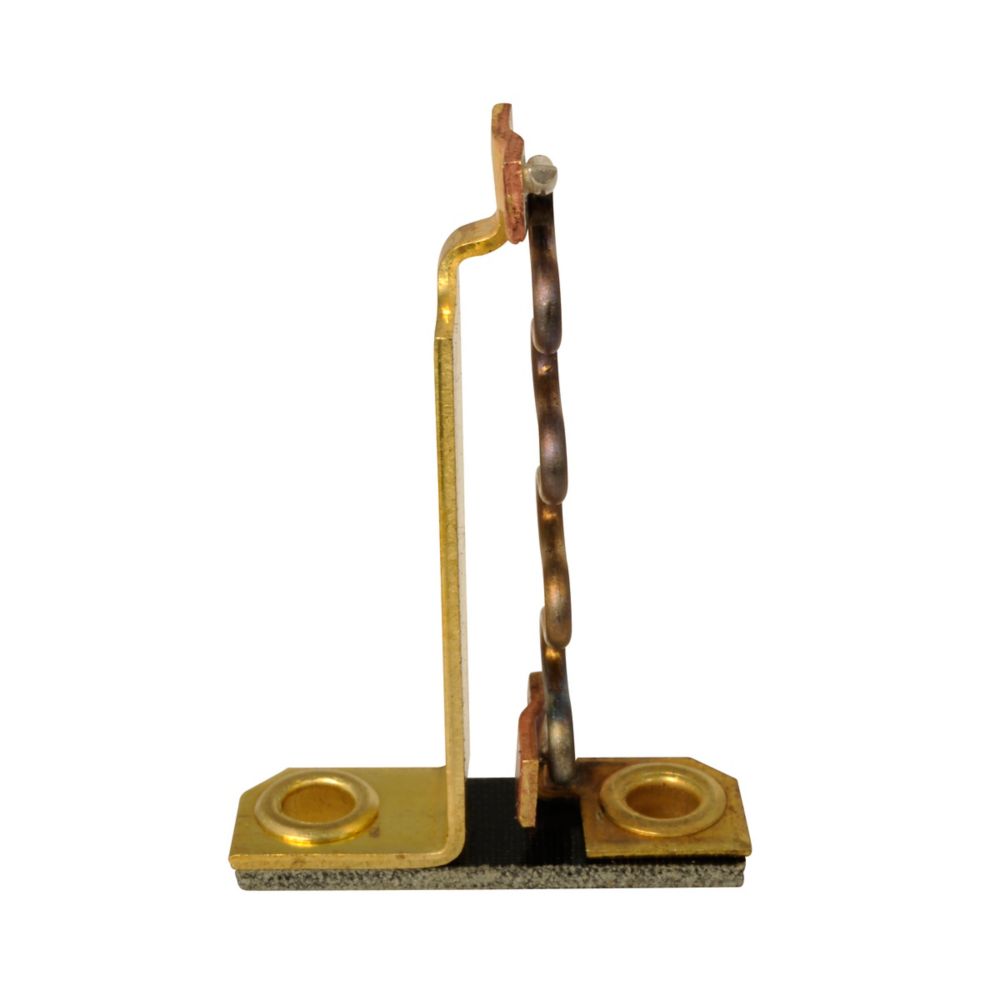

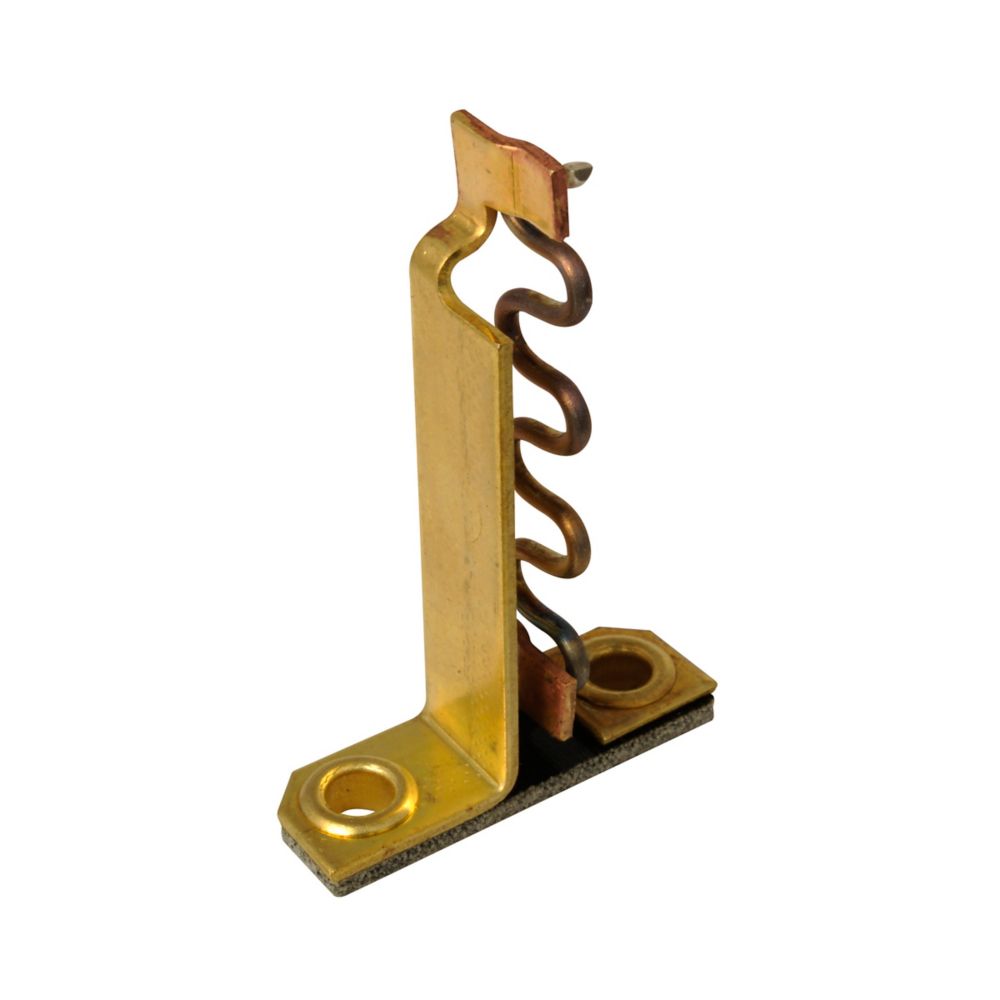

FH35 - Eaton Cutler Hammer - A200/B100 Heater
Designed for Starter Sizes 0, 1, and 2, the FH35 provides ambient full-load current coverage of 5.4–5.9 A and 6.3–6.8 A, with non-compensated ranges of 5.1–5.5 A and 6.1–6.6 A. It ensures robust motor protection through Type A and B relays with both thermal and fast-trip operation. As with its siblings, FH35 combines compact form with durable NEMA-compliant design.
GENERAL SPECIFICATIONS
| Product Name |
Eaton A200/B100 heater
|
| Catalog Number |
FH35
|
| UPC |
786678629926
|
| Product Length/Depth |
2.1 in
|
| Product Height |
0.8 in
|
| Product Width |
1.3 in
|
| Product Weight |
0.03 lb
|
| Certifications |
CSA Certified
UL Listed |
| Catalog Notes |
Select heater coils based on full load current(FLA) shown on motor nameplate. Heater coils are rated to protect 40 degree C rise and a service factor of 1.15, Single-Phase requires 2 heaters, Three-Phase Requires 3 heaters
|
| Global Catalog |
FH35
|
PRODUCT SPECIFICATIONS
| Special features |
Used with Starter Sizes 0,1, and 2
|
| Type |
A200/B100 Heater
|
| Used with |
Used with Starter Sizes 0,1, and 2
|
| Design |
NEMA
|
| Full load current range |
Ambient 5.4-5.9, 6.3-6.8 A, Non-Comp 5.1-5.5, 6.1-6.6 A
|
| Overload relay |
Type A and B
|
| Trip type |
Thermal and fast trip
|
PRODUCT DATASHEET
