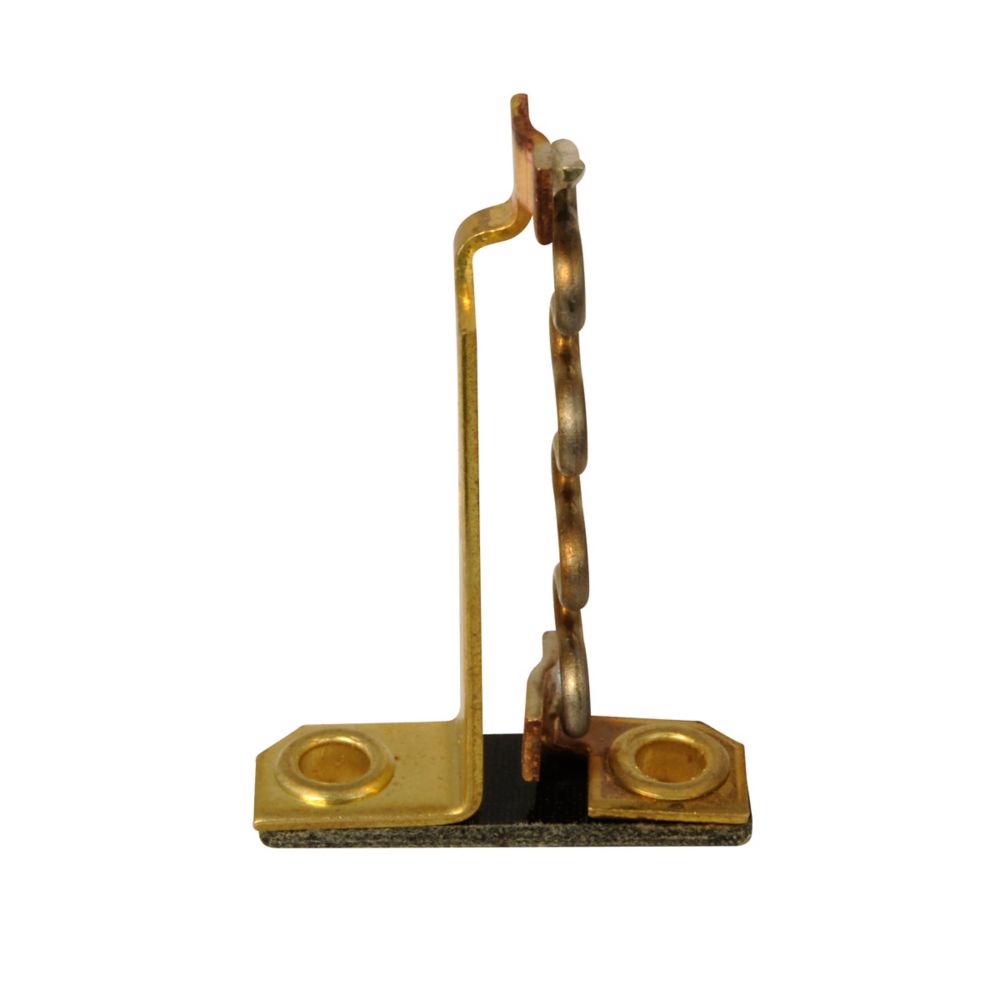

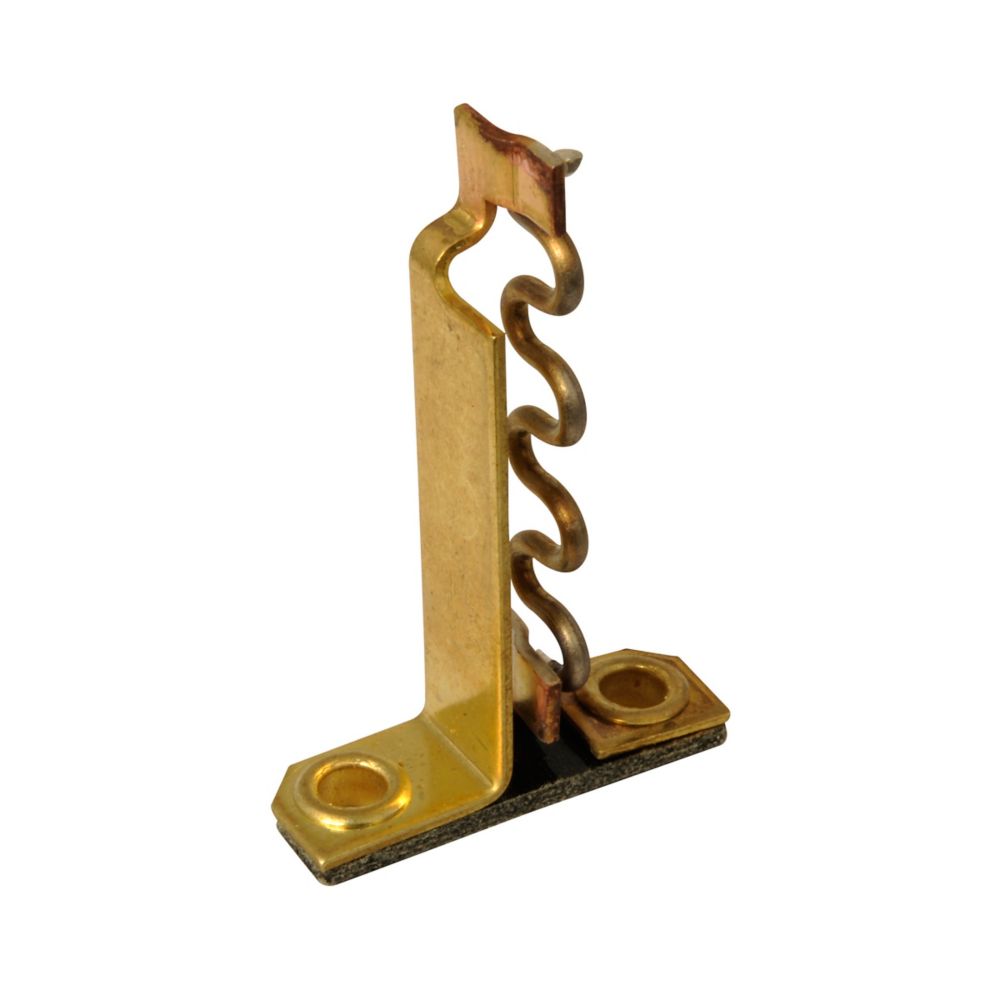

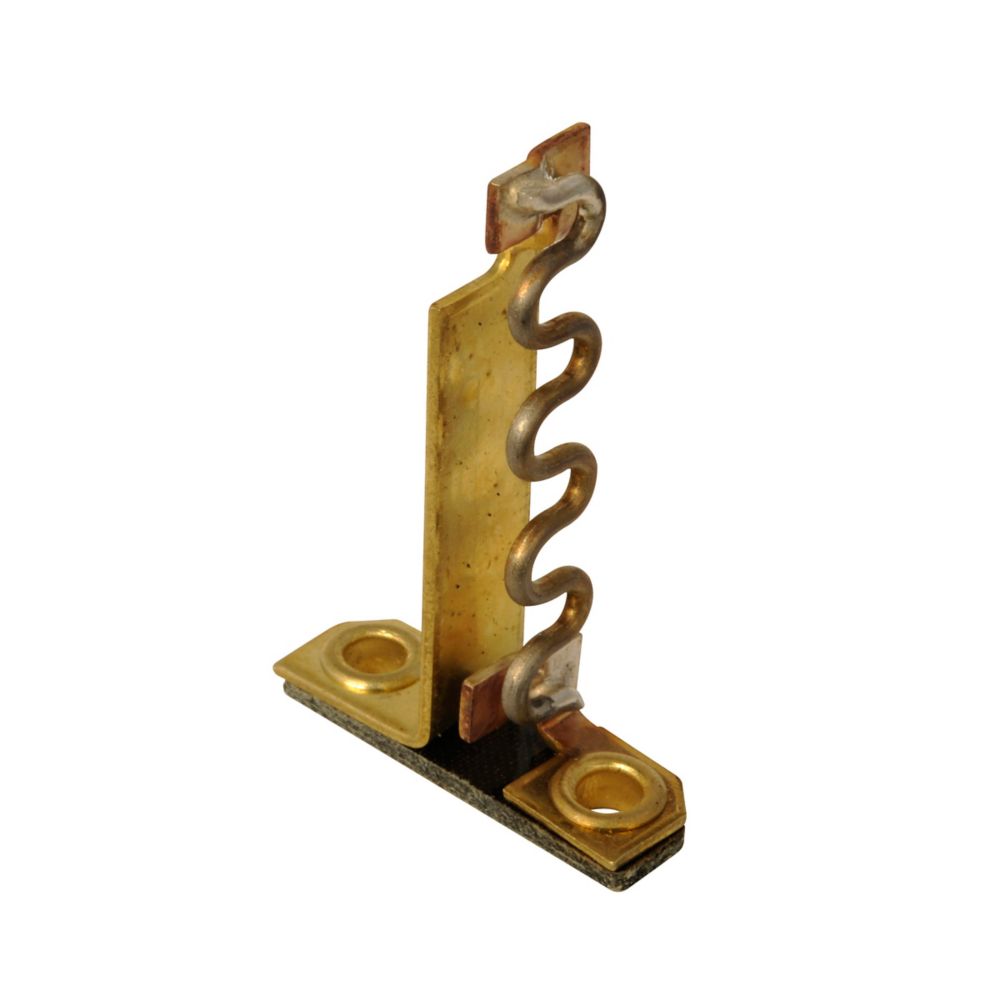

FH37 - Eaton Cutler Hammer - A200/B100 Heater
The Eaton FH37 A200/B100 heater is designed for NEMA Starter Sizes 0, 1, and 2 and supports ambient full-load current ranges of approximately 6.5–7.1 A and 7.6–8.2 A, with non-compensated ranges near 6.0–6.6 A and 7.4–8.0 A. Engineered for dependable motor overload protection, it operates with both Type A and B overload relays and features thermal plus fast-trip functions. Compact and reliable, this heater is UL-listed and CSA-certified, making it ideal for precise motor control applications.
GENERAL SPECIFICATIONS
| Product Name |
Eaton A200/B100 heater
|
| Catalog Number |
FH37
|
| UPC |
786678629988
|
| Product Length/Depth |
0.8 in
|
| Product Height |
2 in
|
| Product Width |
1.1 in
|
| Product Weight |
0.05 lb
|
| Certifications |
UL Listed
CSA Certified |
| Catalog Notes |
Select heater coils based on full load current(FLA) shown on motor nameplate. Heater coils are rated to protect 40 degree C rise and a service factor of 1.15, Single-Phase requires 2 heaters, Three-Phase Requires 3 heaters
|
| Global Catalog |
FH37
|
PRODUCT SPECIFICATIONS
| Special features |
Used with Starter Sizes 0,1, and 2
|
| Type |
A200/B100 Heater
|
| Used with |
Used with Starter Sizes 0,1, and 2
|
| Design |
NEMA
|
| Full load current range |
Ambient 6.5-7.1, 7.6-8.2 A, Non-Comp 6.0-6.6, 7.4-8.0 A
|
| Overload relay |
Type A and B
|
| Trip type |
Thermal and fast trip
|
PRODUCT DATASHEET
