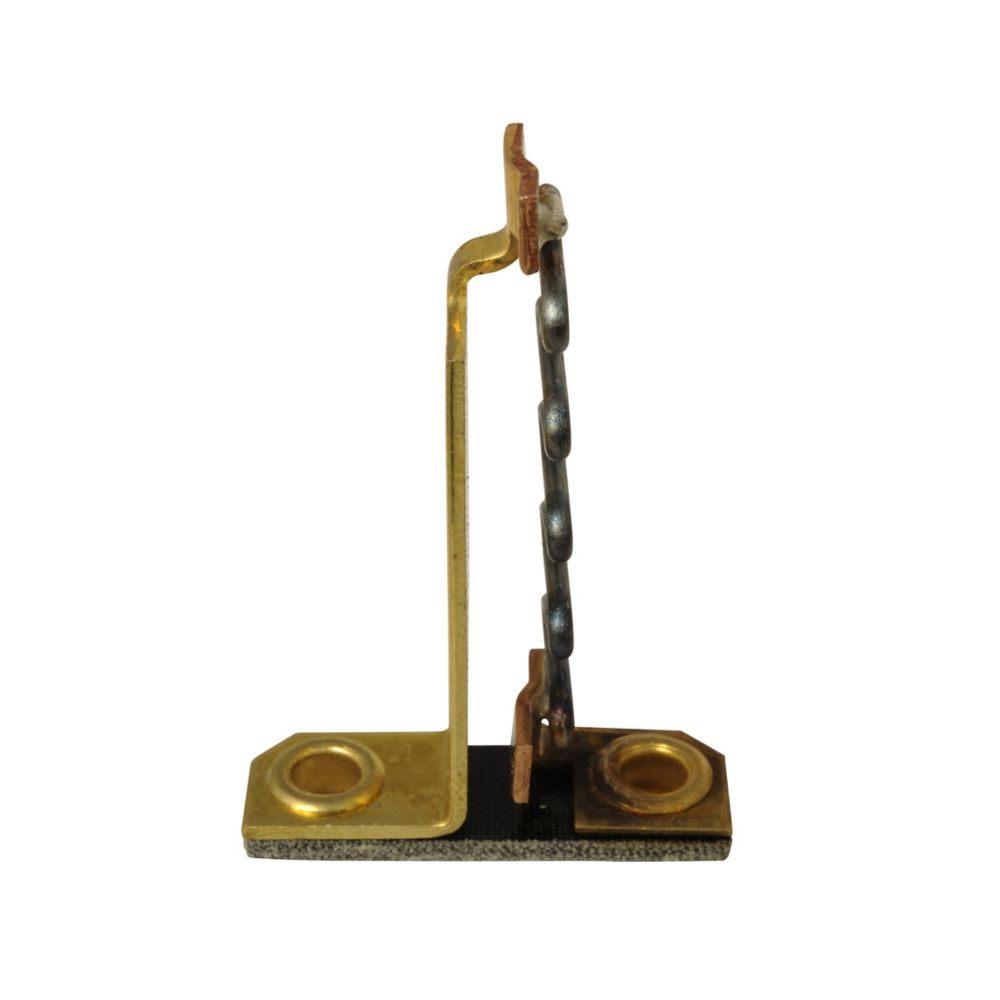

FH38 - Eaton Cutler Hammer - 8.7A A200/B100 Heater
The FH38 heater, part of the A200/B100 series for NEMA Starter Sizes 0–2, covers ambient full-load current ranges around 7.2–7.8 A and 8.3–9.0 A, and non-compensated ranges of approximately 6.7–7.2 A and 8.1–8.7 A. Like its predecessors, it provides motor protection via both Type A and B overload relays and supports both thermal and fast-trip operation. This model is compact, UL-listed, and CSA-certified—engineered for reliable performance in demanding industrial settings.
GENERAL SPECIFICATIONS
| Product Name |
Eaton A200/B100 heater
|
| Catalog Number |
FH38
|
| UPC |
786678670003
|
| Product Length/Depth |
2.1 in
|
| Product Height |
0.8 in
|
| Product Width |
1.3 in
|
| Product Weight |
0.03 lb
|
| Certifications |
CSA Certified
UL Listed |
| Catalog Notes |
Select heater coils based on full load current(FLA) shown on motor nameplate. Heater coils are rated to protect 40 degree C rise and a service factor of 1.15, Single-Phase requires 2 heaters, Three-Phase Requires 3 heaters
|
| Global Catalog |
FH38
|
PRODUCT SPECIFICATIONS
| Special features |
Used with Starter Sizes 0,1, and 2
|
| Type |
A200/B100 Heater
|
| Used with |
Used with Starter Sizes 0,1, and 2
|
| Design |
NEMA
|
| Full load current range |
Ambient 7.2-7.8, 8.3-9.0 A, Non-Comp 6.7-7.2, 8.1-8.7 A
|
| Overload relay |
Type A and B
|
| Trip type |
Thermal and fast trip
|
