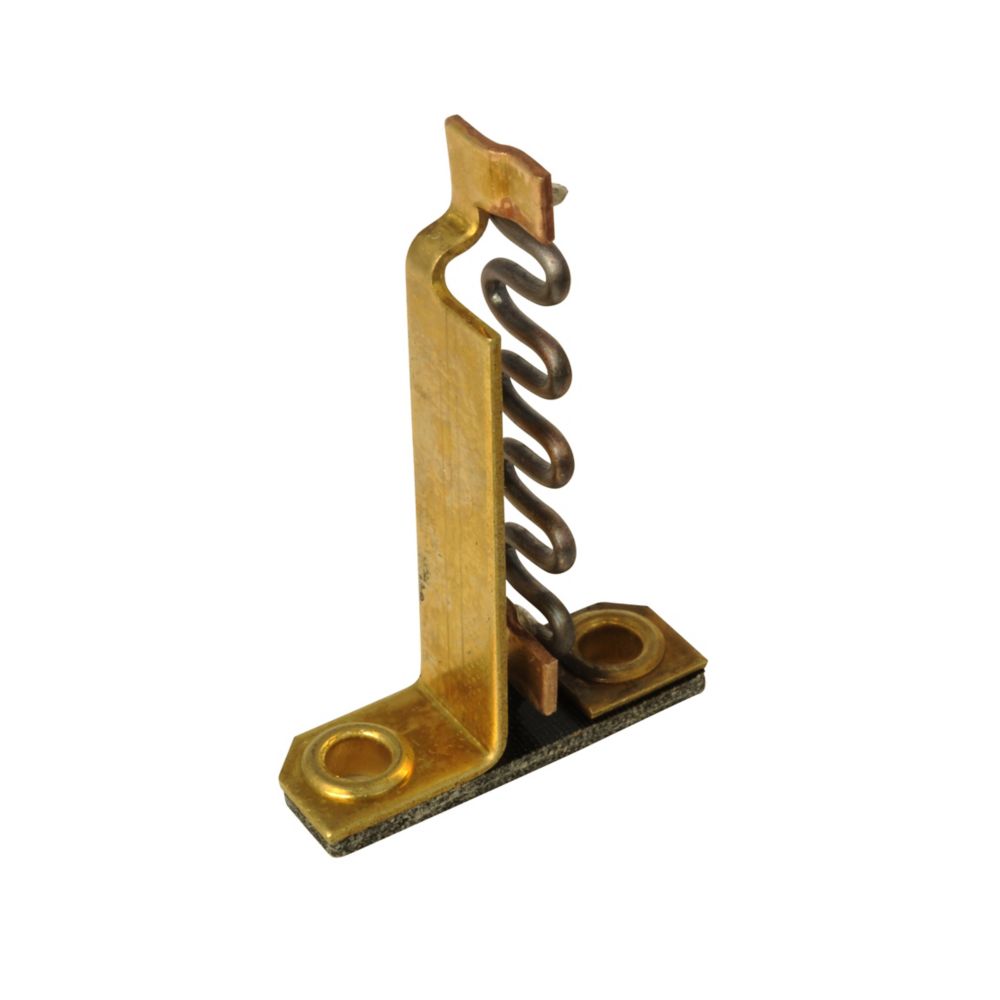

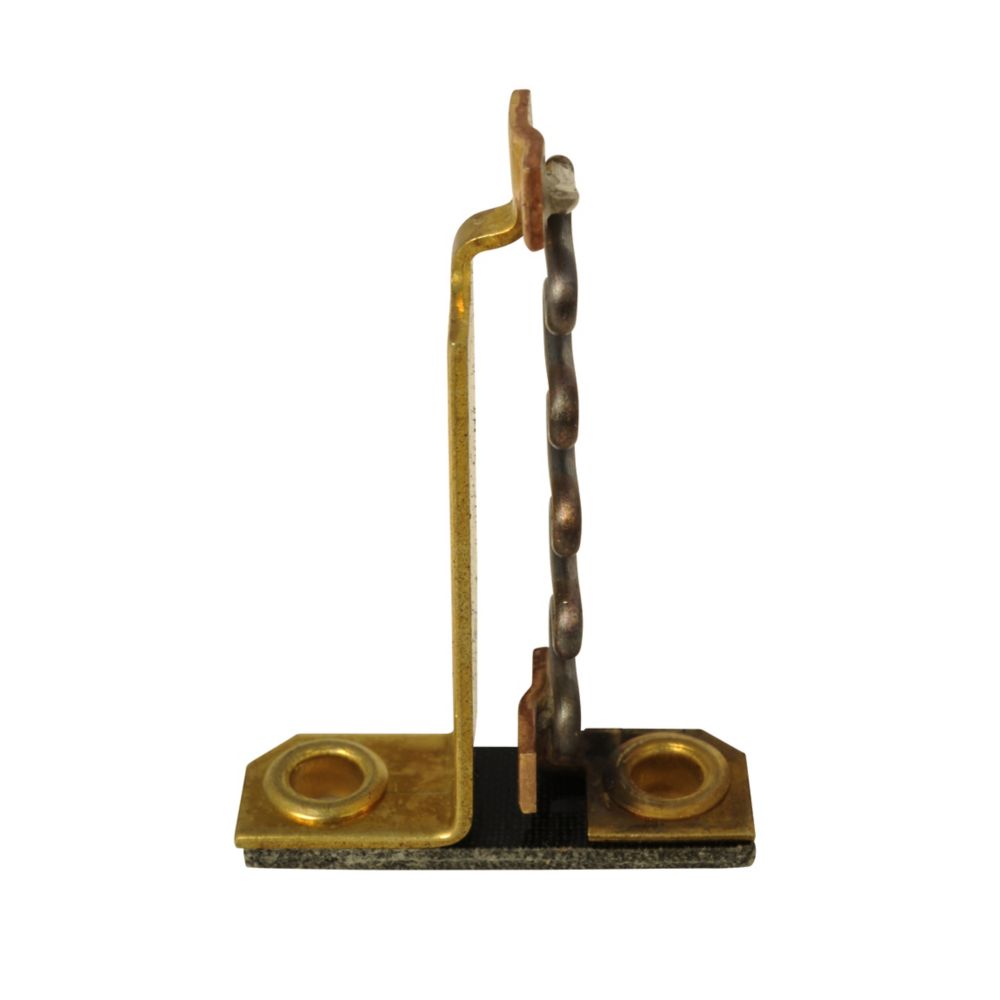

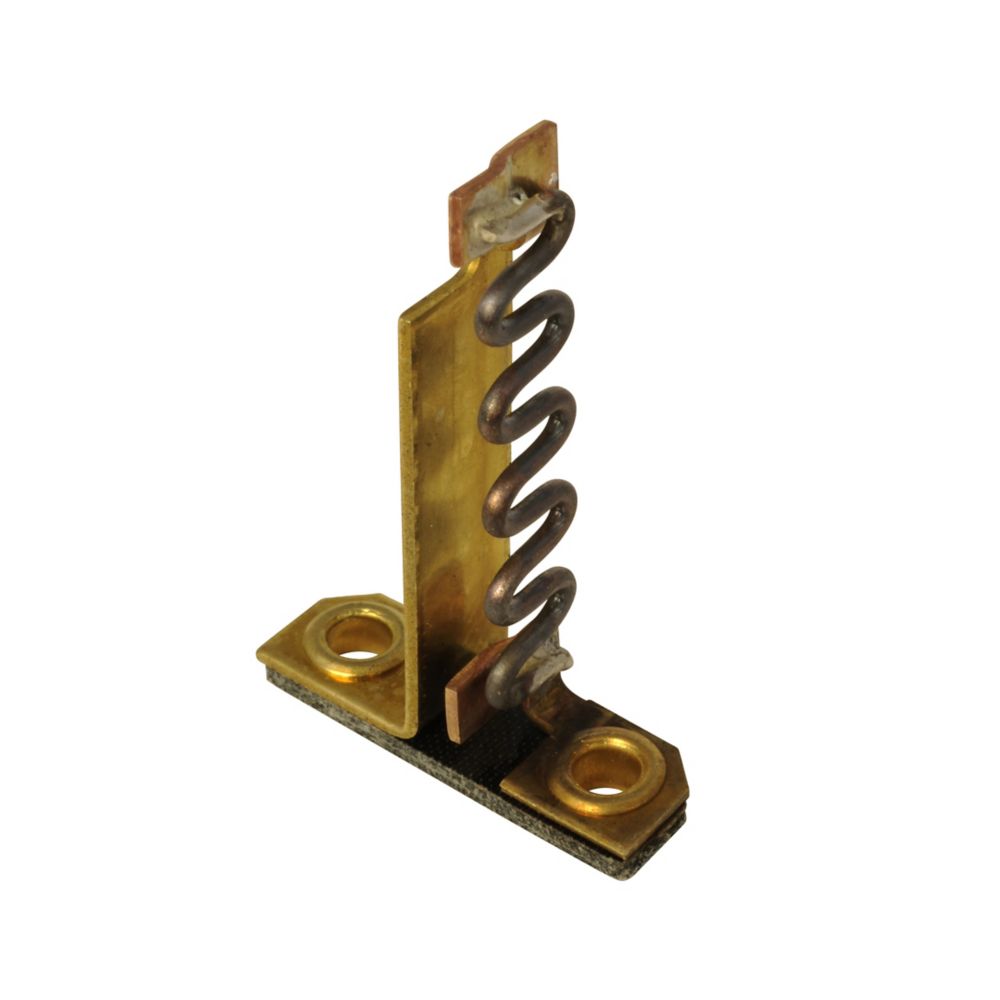

FH39 - Eaton Cutler Hammer - A200/B100 Heater
The Eaton FH39 model is compatible with NEMA Starter Sizes 0, 1, and 2 and delivers ambient full-load current coverage from about 7.9–8.5 A and 9.1–9.9 A, with non-compensated ranges near 7.3–7.9 A and 8.8–9.7 A. It conforms to the same rugged design, operating with Type A and B overload relays and offering both thermal and fast-trip protection for efficient motor safeguarding. Compact and dependable, FH39 ensures consistent control performance in tight-space applications.
GENERAL SPECIFICATIONS
| Product Name |
Eaton A200/B100 heater
|
| Catalog Number |
FH39
|
| UPC |
786678670034
|
| Product Length/Depth |
2.1 in
|
| Product Height |
0.8 in
|
| Product Width |
1.3 in
|
| Product Weight |
0.03 lb
|
| Certifications |
UL Listed
CSA Certified |
| Catalog Notes |
Select heater coils based on full load current(FLA) shown on motor nameplate. Heater coils are rated to protect 40 degree C rise and a service factor of 1.15, Single-Phase requires 2 heaters, Three-Phase Requires 3 heaters
|
| Global Catalog |
FH39
|
PRODUCT SPECIFICATIONS
| Special features |
Used with Starter Sizes 0,1, and 2
|
| Type |
A200/B100 Heater
|
| Used with |
Used with Starter Sizes 0,1, and 2
|
| Design |
NEMA
|
| Full load current range |
Ambient 7.9-8.5, 9.1-9.9 A, Non-Comp 7.3-7.9, 8.8-9.7 A
|
| Overload relay |
Type A and B
|
| Trip type |
Thermal and fast trip
|
