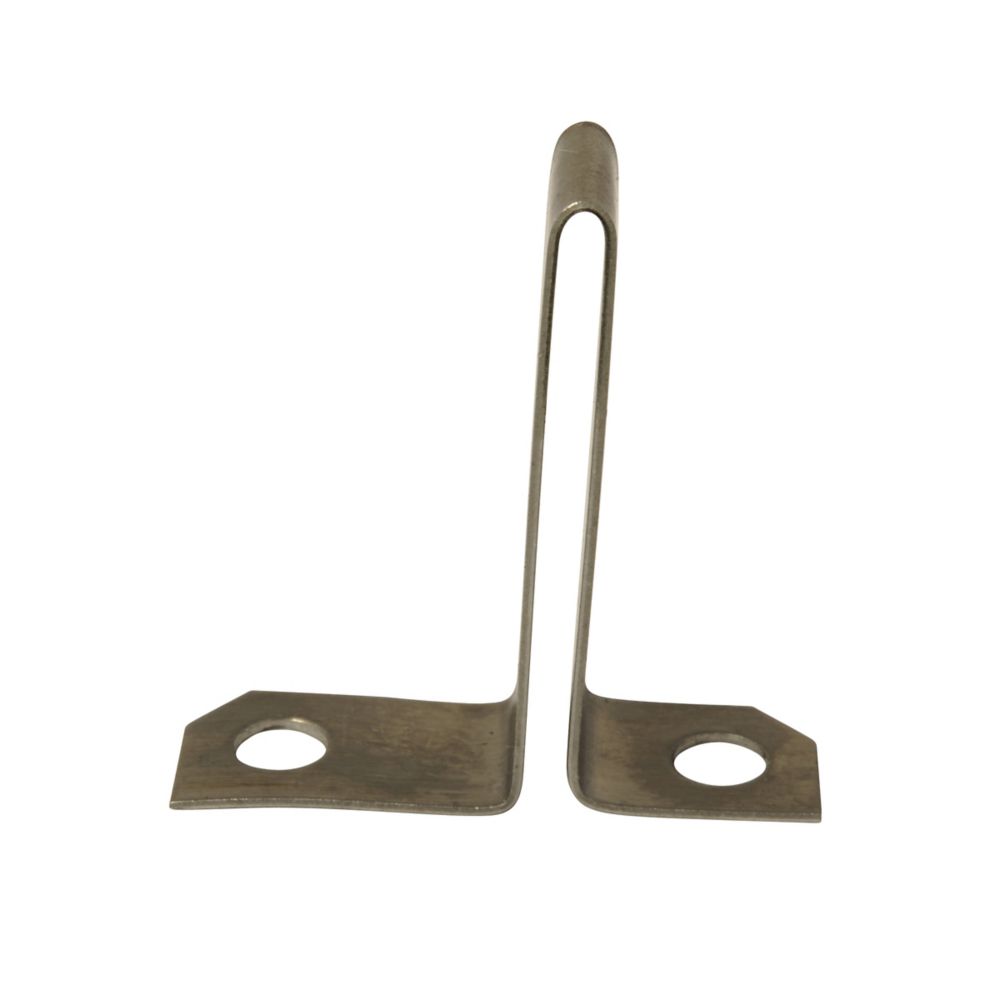

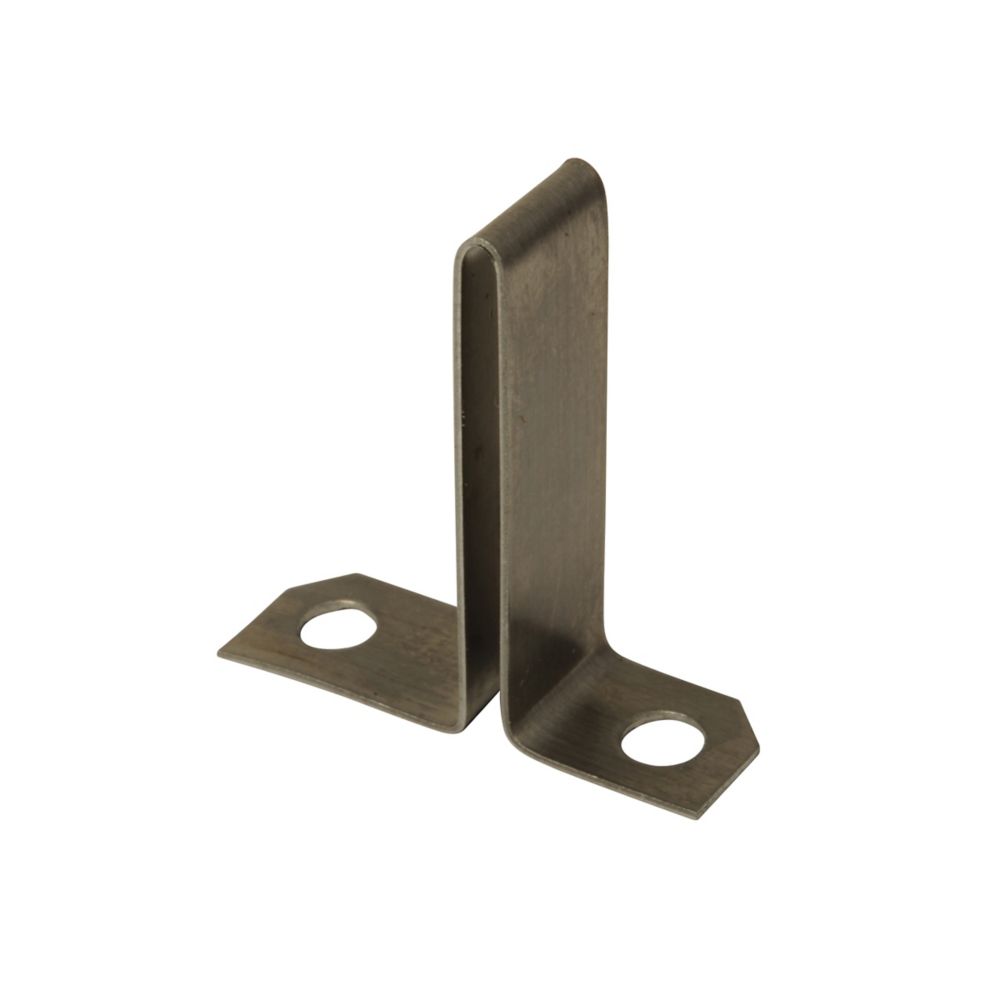

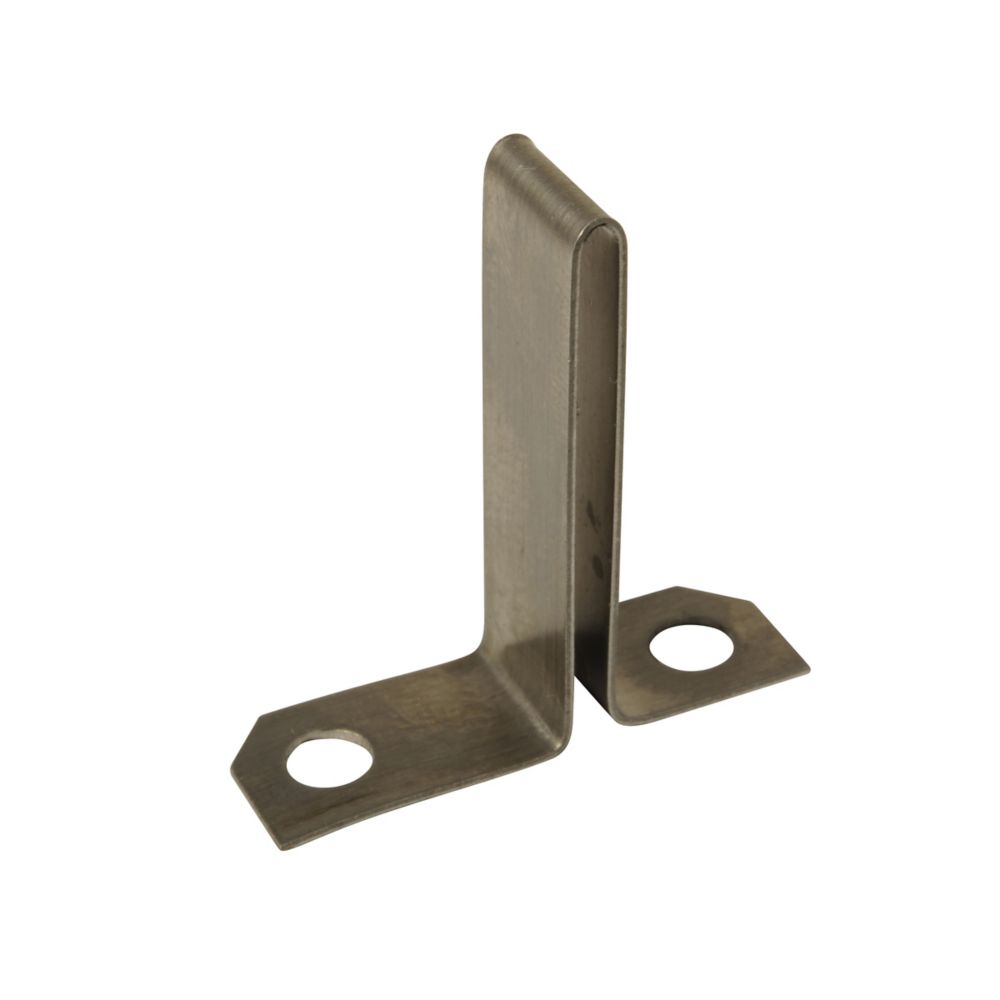

FH42 - Eaton Cutler Hammer - 12.7A A200/B100 Heater
The Eaton FH42 A200/B100 heater, designed for NEMA Starter Sizes 0, 1, and 2, supports ambient full-load current ranges of approximately 10.4–11.3 A and 12.0–13.1 A, with non-compensated ranges of about 9.6–10.5 A and 11.8–12.7 A
GENERAL SPECIFICATIONS
| Product Name |
Eaton A200/B100 heater
|
| Catalog Number |
FH42
|
| UPC |
786678670126
|
| Product Length/Depth |
2.1 in
|
| Product Height |
0.8 in
|
| Product Width |
1.4 in
|
| Product Weight |
0.04 lb
|
| Certifications |
UL Listed
CSA Certified |
| Catalog Notes |
Select heater coils based on full load current(FLA) shown on motor nameplate. Heater coils are rated to protect 40 degree C rise and a service factor of 1.15, Single-Phase requires 2 heaters, Three-Phase Requires 3 heaters.
|
| Global Catalog |
FH42
|
PRODUCT SPECIFICATIONS
| Special features |
Used with Starter Sizes 0,1, and 2
|
| Type |
A200/B100 Heater
|
| Used with |
Used with Starter Sizes 0,1, and 2
|
| Design |
NEMA
|
| Full load current range |
Ambient 10.4-11.3, 12.0-13.1 A, Non-Comp 9.6-10.5, 11.8-12.7 A
|
| Overload relay |
Type A and B
|
| Trip type |
Thermal and fast trip
|
PRODUCT DATASHEET
