Description

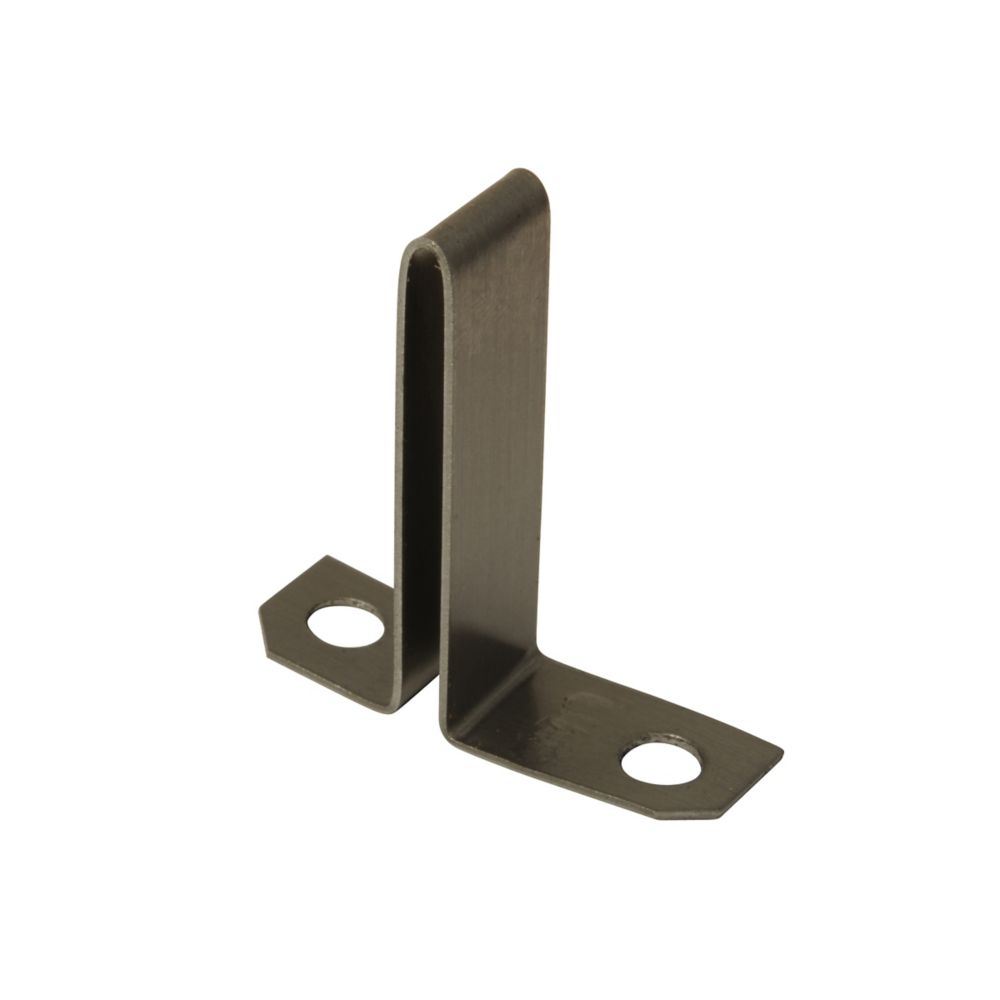

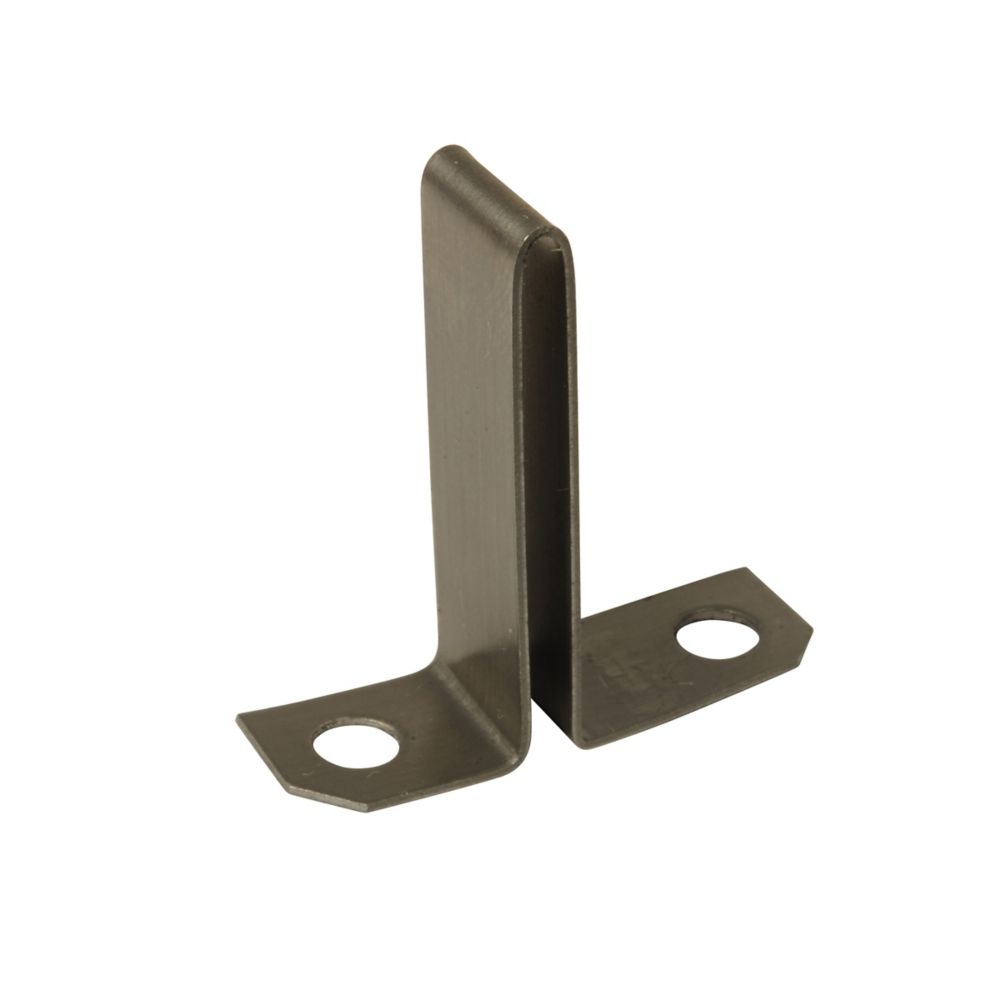

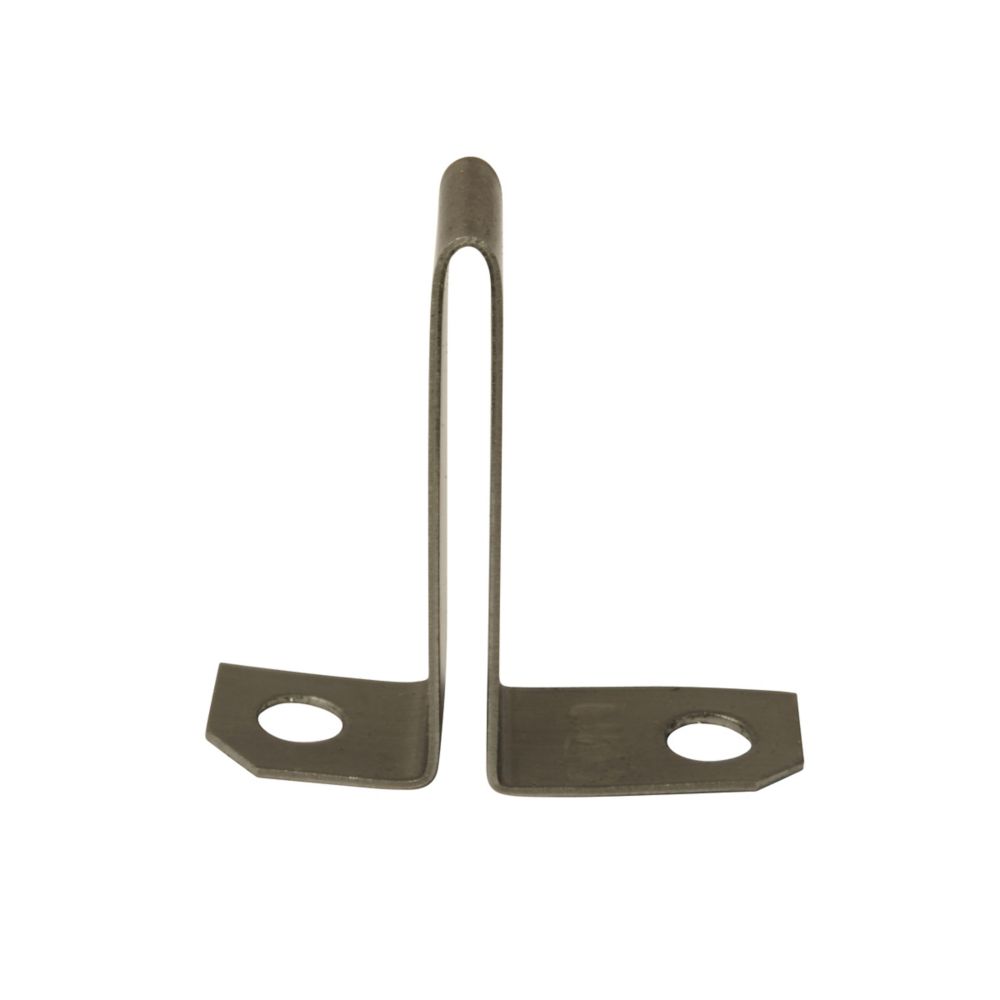

FH43 - Eaton Cutler Hammer - 14.0A A200/B100 Heater
The FH43 model is also compatible with A200/B100 starters (Sizes 0–2), offering ambient full-load current ranges of approximately 11.4–12.4 A and 13.2–14.3 A, with non-compensated ranges of around 10.6–11.5 A and 12.8–14.0 A
GENERAL SPECIFICATIONS
| Product Name |
Eaton A200/B100 heater
|
| Catalog Number |
FH43
|
| UPC |
786678670157
|
| Product Length/Depth |
2.1 in
|
| Product Height |
0.8 in
|
| Product Width |
1.3 in
|
| Product Weight |
0.03 lb
|
| Certifications |
UL Listed
CSA Certified |
| Catalog Notes |
Select heater coils based on full load current(FLA) shown on motor nameplate. Heater coils are rated to protect 40 degree C rise and a service factor of 1.15, Single-Phase requires 2 heaters, Three-Phase Requires 3 heaters
|
| Global Catalog |
FH43
|
PRODUCT SPECIFICATIONS
| Special features |
Used with Starter Sizes 0,1, and 2
|
| Type |
A200/B100 Heater
|
| Used with |
Used with Starter Sizes 0,1, and 2
|
| Design |
NEMA
|
| Full load current range |
Ambient 11.4-12.4, 13.2-14.3 A, Non-Comp 10.6-11.5, 12.8-14.0 A
|
| Overload relay |
Type A and B
|
| Trip type |
Thermal and fast trip
|
