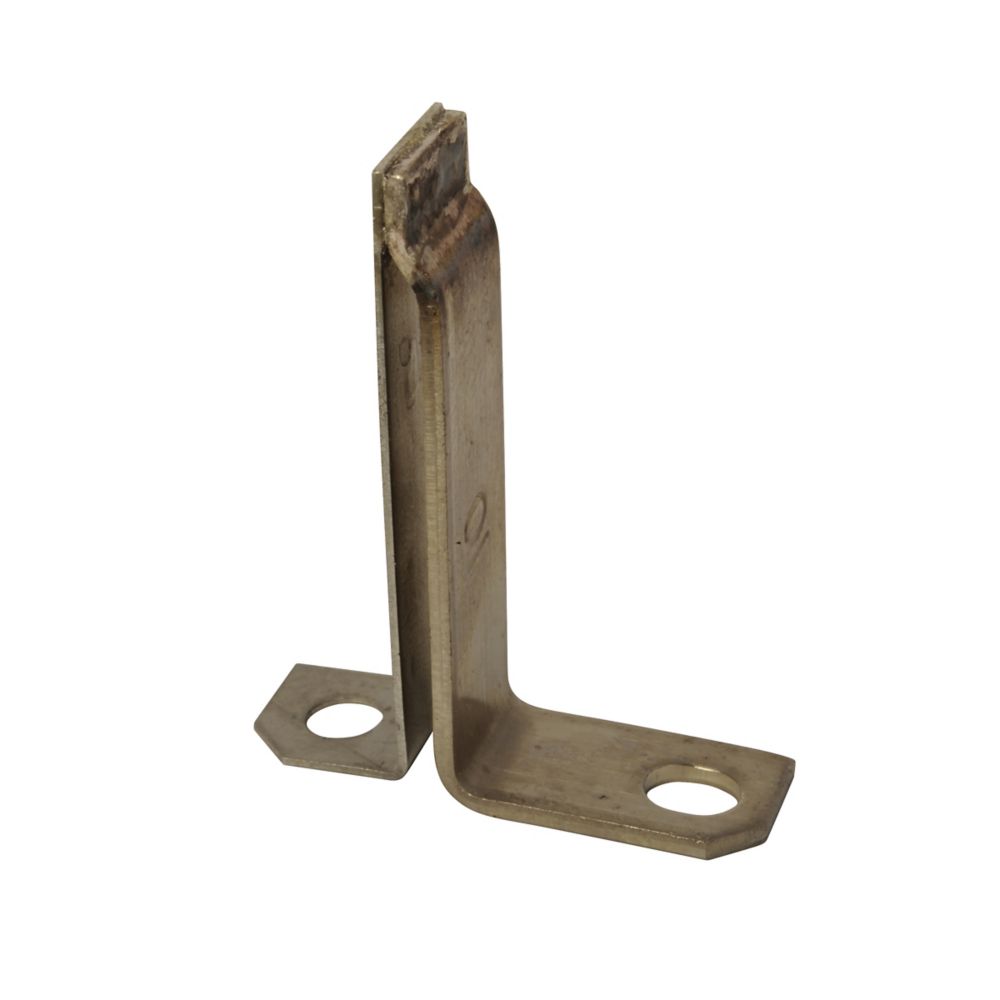

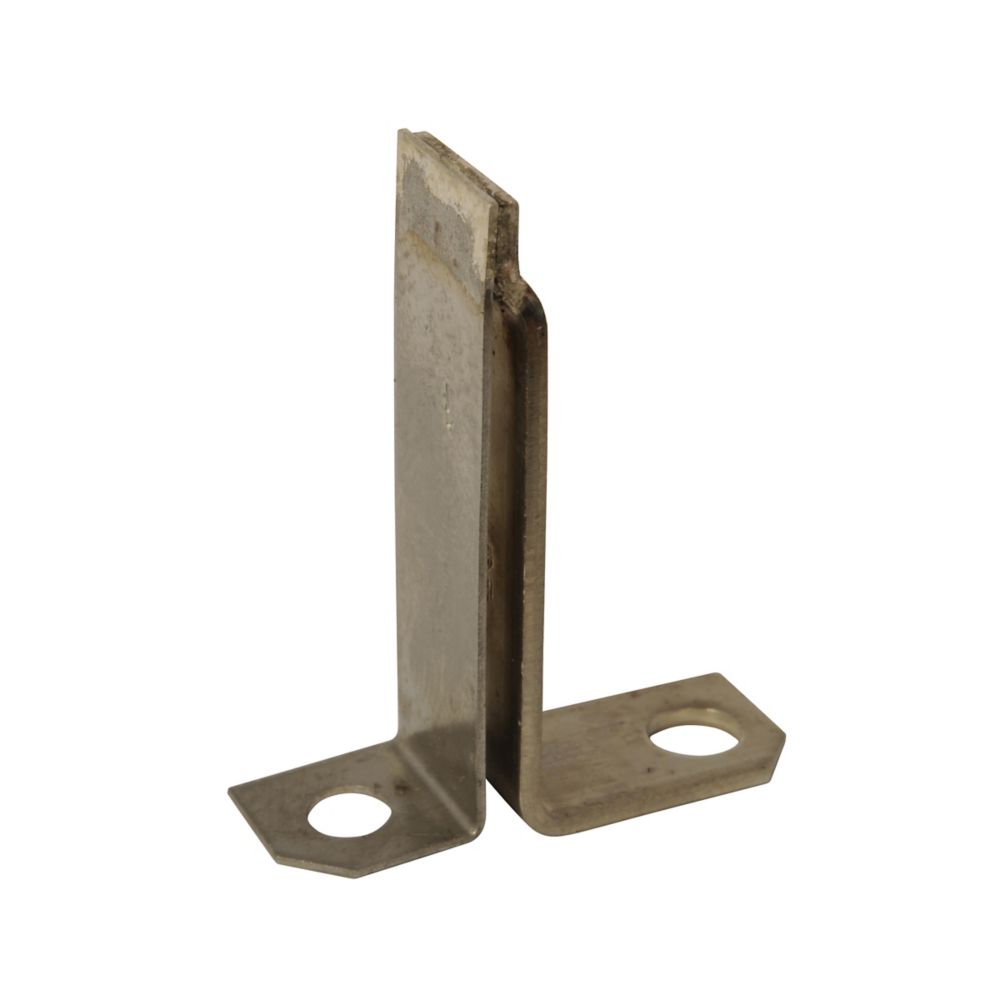

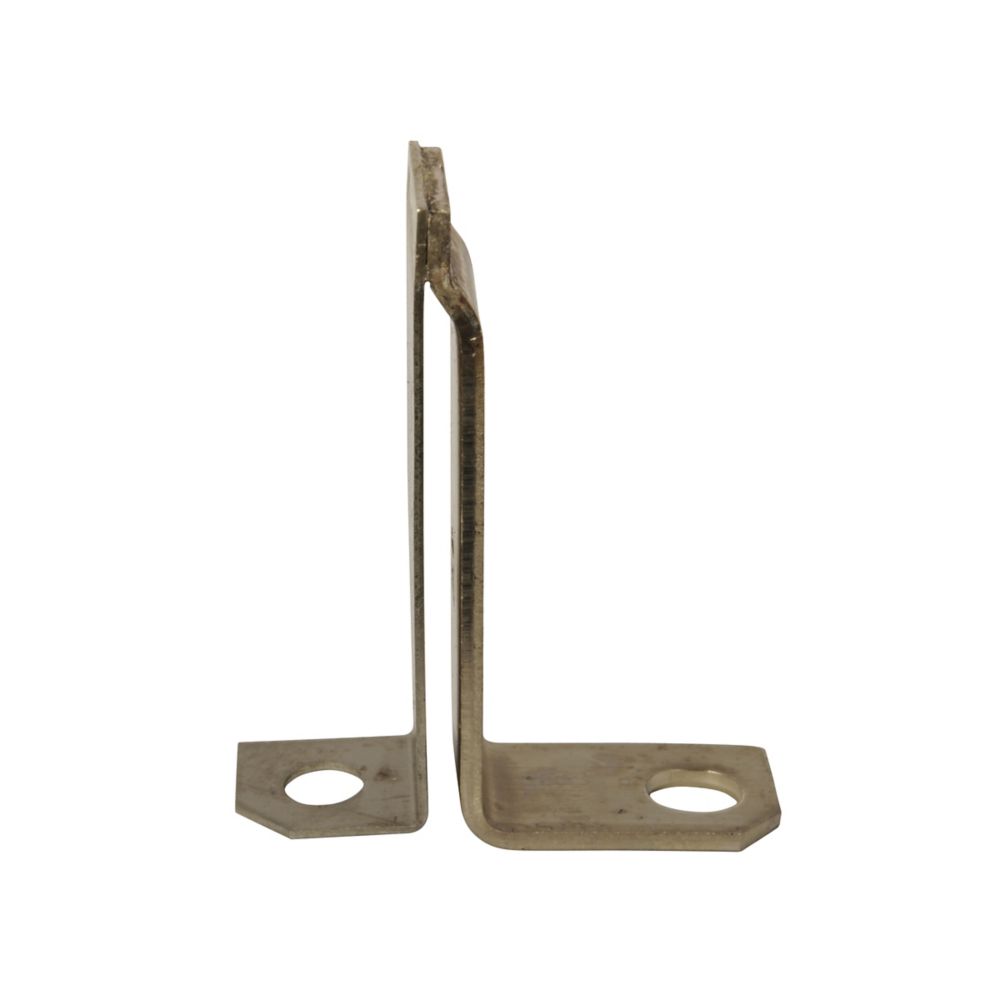

FH46 - Eaton Cutler Hammer - A200/B100 Heater
The Eaton FH46 A200/B100 heater is designed for NEMA Starter Sizes 0, 1, and 2, offering ambient full-load current coverage in the 17.3–18.9 A range and non-compensated ranges of 13.9–15.1 A and 16.7–18.3 A. It delivers reliable motor overload protection with both Type A and B relays, featuring both thermal and fast-trip functionality. Compact (2.1 in × 1.3 in × 0.8 in), UL Listed, and CSA Certified, it’s built for durable and precise integration into industrial control systems.
GENERAL SPECIFICATIONS
| Product Name |
Eaton A200/B100 heater
|
| Catalog Number |
FH46
|
| UPC |
786678670249
|
| Product Length/Depth |
2.1 in
|
| Product Height |
0.8 in
|
| Product Width |
1.3 in
|
| Product Weight |
0.03 lb
|
| Certifications |
UL Listed
CSA Certified |
| Catalog Notes |
Select heater coils based on full load current(FLA) shown on motor nameplate. Heater coils are rated to protect 40 degree C rise and a service factor of 1.15, Single-Phase requires 2 heaters, Three-Phase Requires 3 heaters
|
| Global Catalog |
FH46
|
PRODUCT SPECIFICATIONS
| Special features |
Used with Starter Sizes 0,1, and 2
|
| Type |
A200/B100 Heater
|
| Used with |
Used with Starter Sizes 0,1, and 2
|
| Design |
NEMA
|
| Full load current range |
Ambient 17.3-18.9, 17.3-18.9 A, Non-Comp 13.9 -15.1, 16.7-18.3 A
|
| Overload relay |
Type A and B
|
| Trip type |
Thermal and fast trip
|
