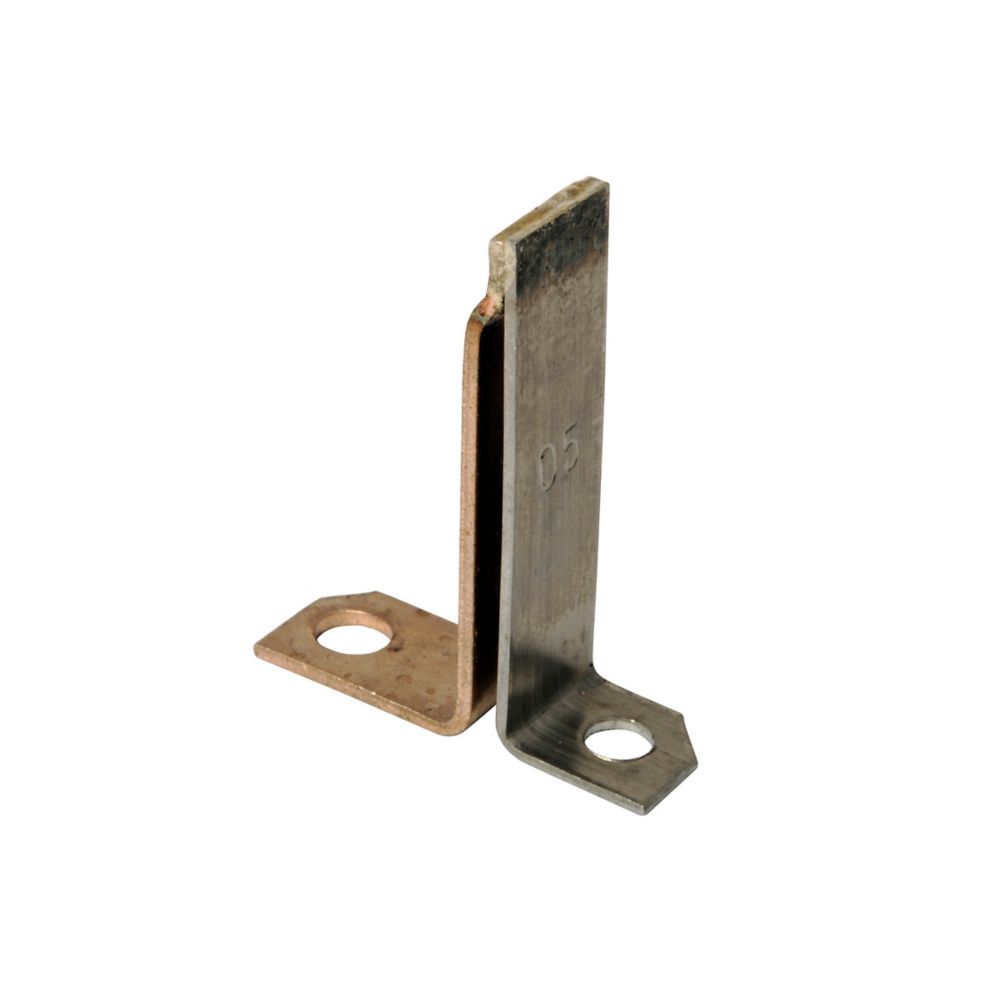

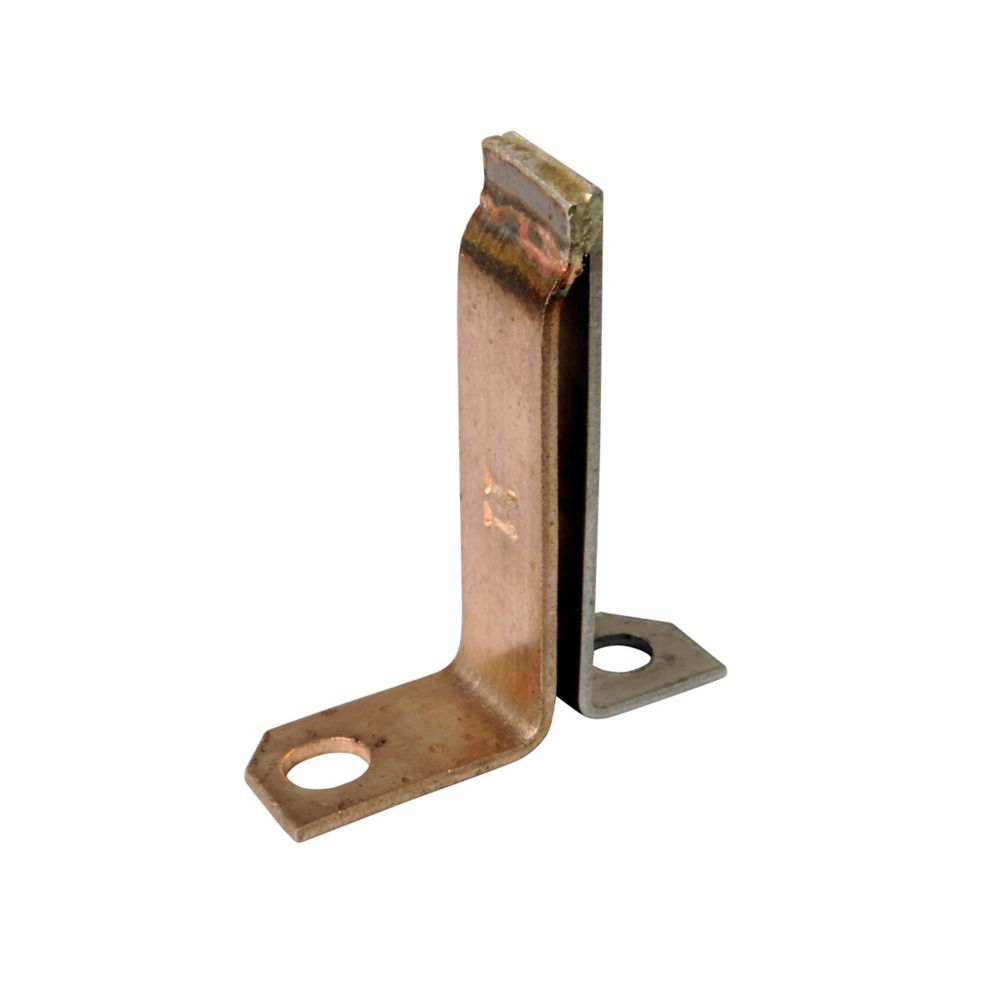

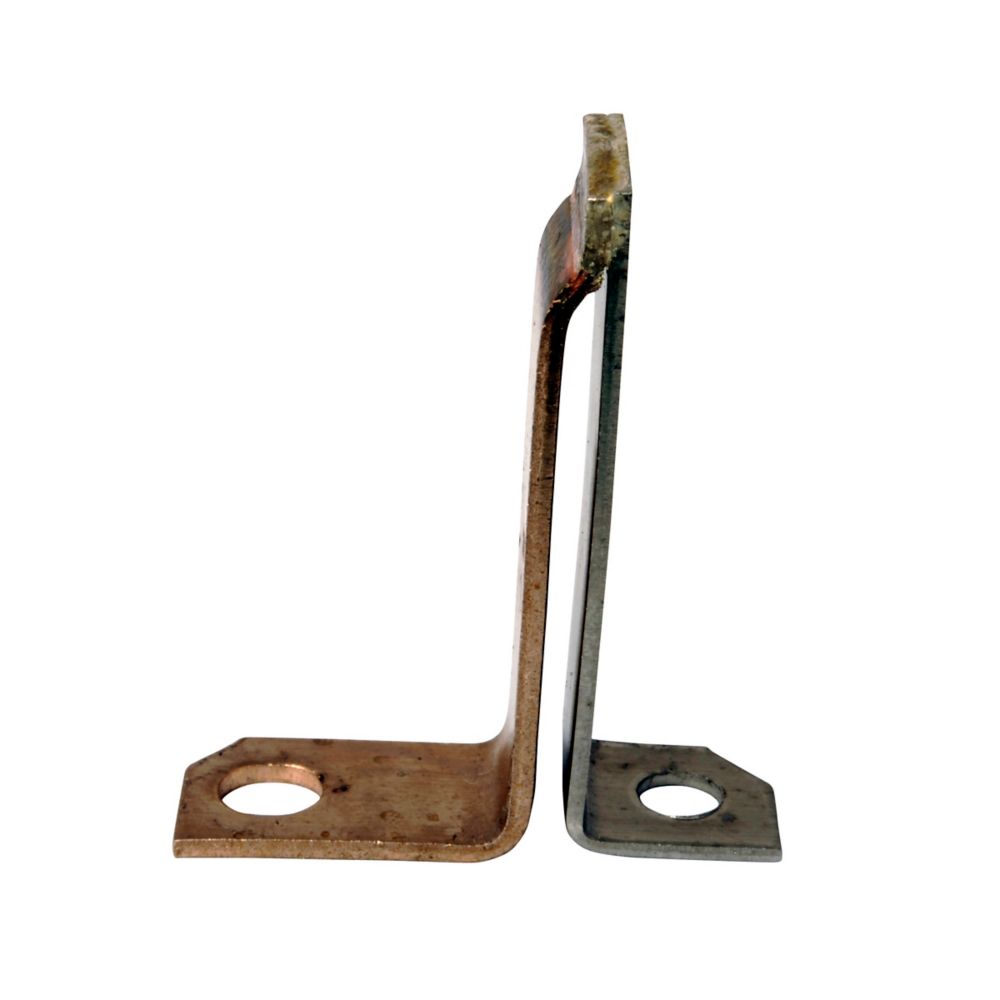

FH50 - Eaton Cutler Hammer - 26.2A A200/B100 Heater
The Eaton FH50 A200/B100 heater is designed for NEMA Starter Sizes 1 and 2, delivering ambient full-load current coverage of approximately 20.3–22.2 A and 24.0–26.2 A, and corresponding non-compensated ranges. It ensures dependable motor protection through both thermal and fast-trip mechanisms using Type A and B overload relays. Compact (about 2.1 in × 1.3 in × 0.8 in), UL-listed and CSA-certified, it's built for reliable integration in industrial starter systems.
GENERAL SPECIFICATIONS
| Product Name |
Eaton A200/B100 heater
|
| Catalog Number |
FH50
|
| UPC |
786678670362
|
| Product Length/Depth |
2.1 in
|
| Product Height |
0.8 in
|
| Product Width |
1.3 in
|
| Product Weight |
0.03 lb
|
| Certifications |
UL Listed
CSA Certified |
| Catalog Notes |
Select heater coils based on full load current(FLA) shown on motor nameplate. Heater coils are rated to protect 40 degree C rise and a service factor of 1.15, Single-Phase requires 2 heaters, Three-Phase Requires 3 heaters
|
| Global Catalog |
FH50
|
PRODUCT SPECIFICATIONS
| Special features |
Used with Starter Sizes 1, and 2
|
| Type |
A200/B100 Heater
|
| Used with |
Used with Starter Sizes 1, and 2
|
| Design |
NEMA
|
| Full load current range |
Ambient 0.25-0.27, 0.29-0.31 A, Non-Comp 200.3-220.2, 240.0-260.2 A
|
| Overload relay |
Type A and B
|
| Trip type |
Thermal and fast trip
|
PRODUCT DATASHEET
