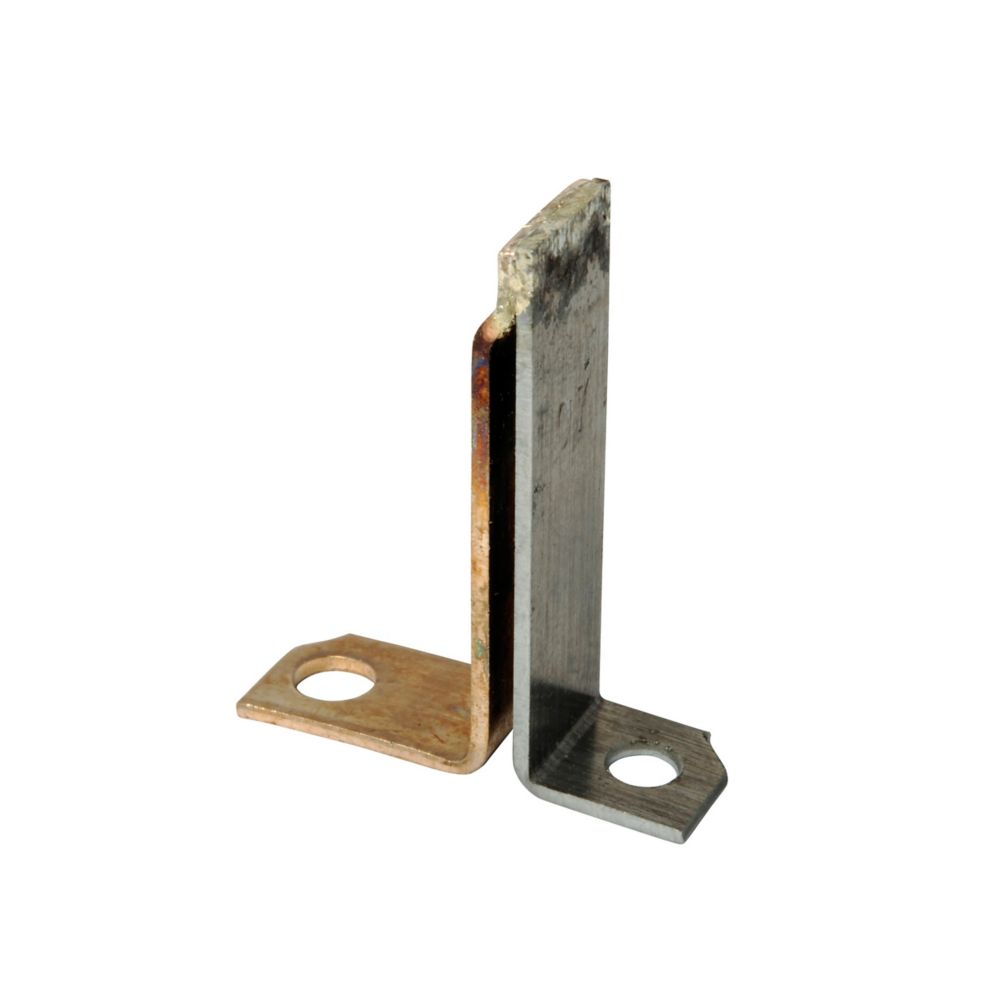

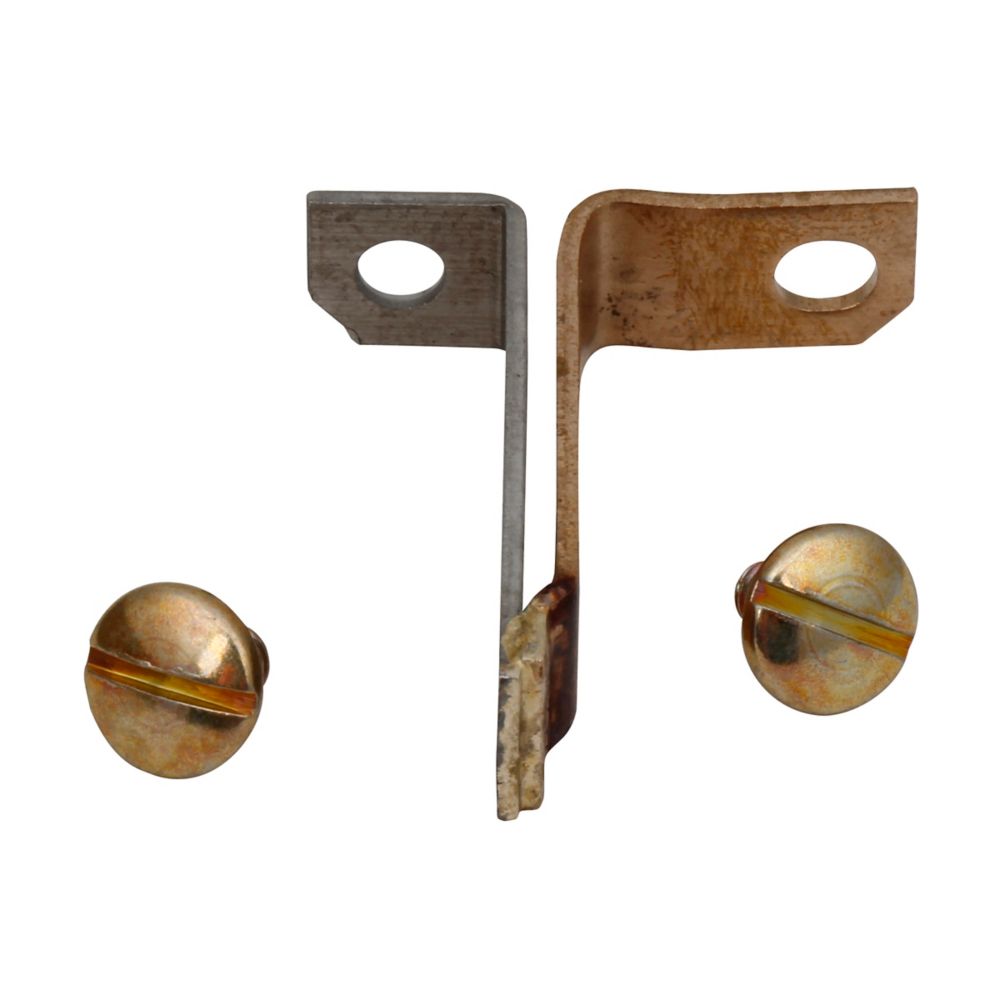

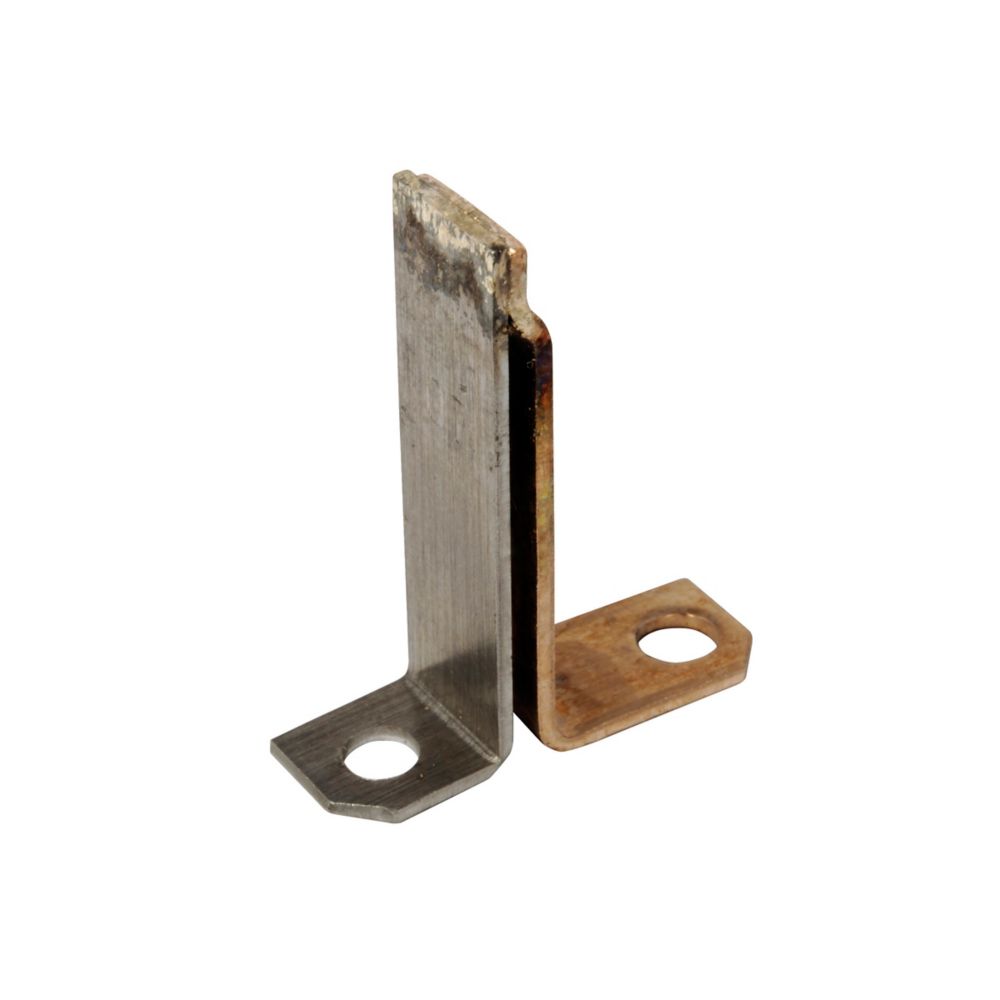

FH51 - Eaton Cutler Hammer - 28.8A A200/B100 Heater
The Eaton FH51 A200/B100 heater fits NEMA Starter Sizes 1 and 2, handling ambient full-load currents between 24.0–26.2 A and 27.7–30.3 A, with non-compensated ratings of 22.3–24.3 A and 26.3–28.8 A. It ensures dependable protection via Type A and B overload relays, supporting both thermal and fast-trip responses. Compact and certified (UL/CSA), the FH51 offers trusted performance in motor starter environments.
GENERAL SPECIFICATIONS
| Product Name |
Eaton A200/B100 heater
|
| Catalog Number |
FH51
|
| UPC |
786678670393
|
| Product Length/Depth |
2.1 in
|
| Product Height |
0.8 in
|
| Product Width |
1.3 in
|
| Product Weight |
0.03 lb
|
| Certifications |
UL Listed
CSA Certified |
| Catalog Notes |
Select heater coils based on full load current(FLA) shown on motor nameplate. Heater coils are rated to protect 40 degree C rise and a service factor of 1.15, Single-Phase requires 2 heaters, Three-Phase Requires 3 heaters
|
| Global Catalog |
FH51
|
PRODUCT SPECIFICATIONS
| Special features |
Used with Starter Sizes 1, and 2
|
| Type |
A200/B100 Heater
|
| Used with |
Used with Starter Sizes 1, and 2
|
| Design |
NEMA
|
| Full load current range |
Ambient 24.0-26.2, 27.7-30.3 A, Non-Comp 22.3-24.3, 26.3-28.8 A
|
| Overload relay |
Type A and B
|
| Trip type |
Thermal and fast trip
|
