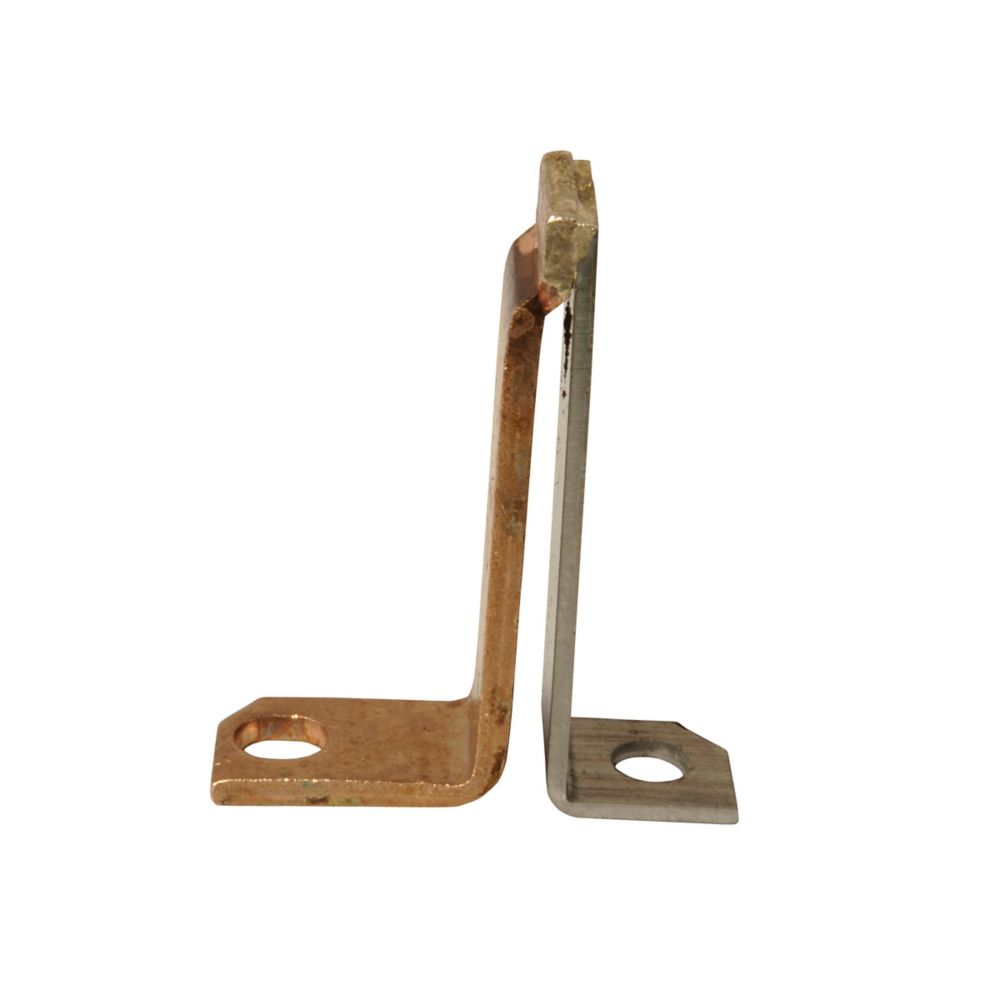

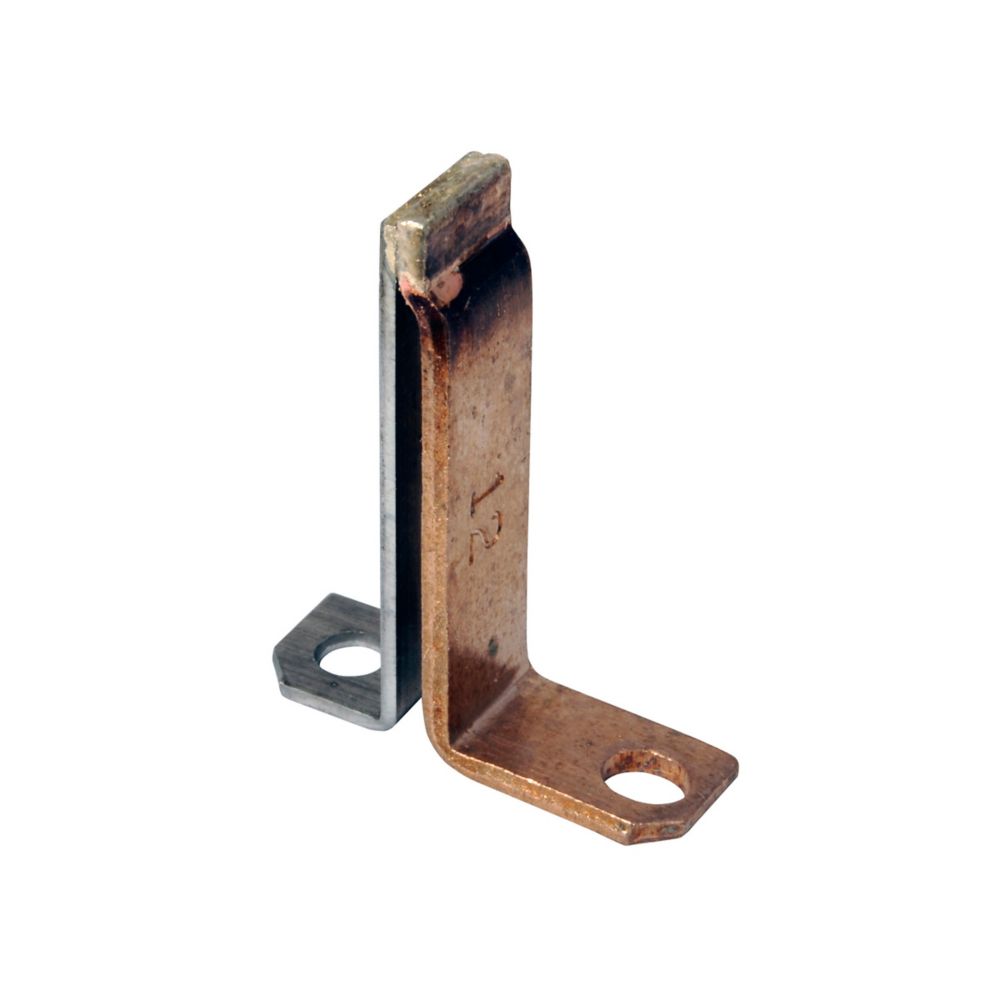

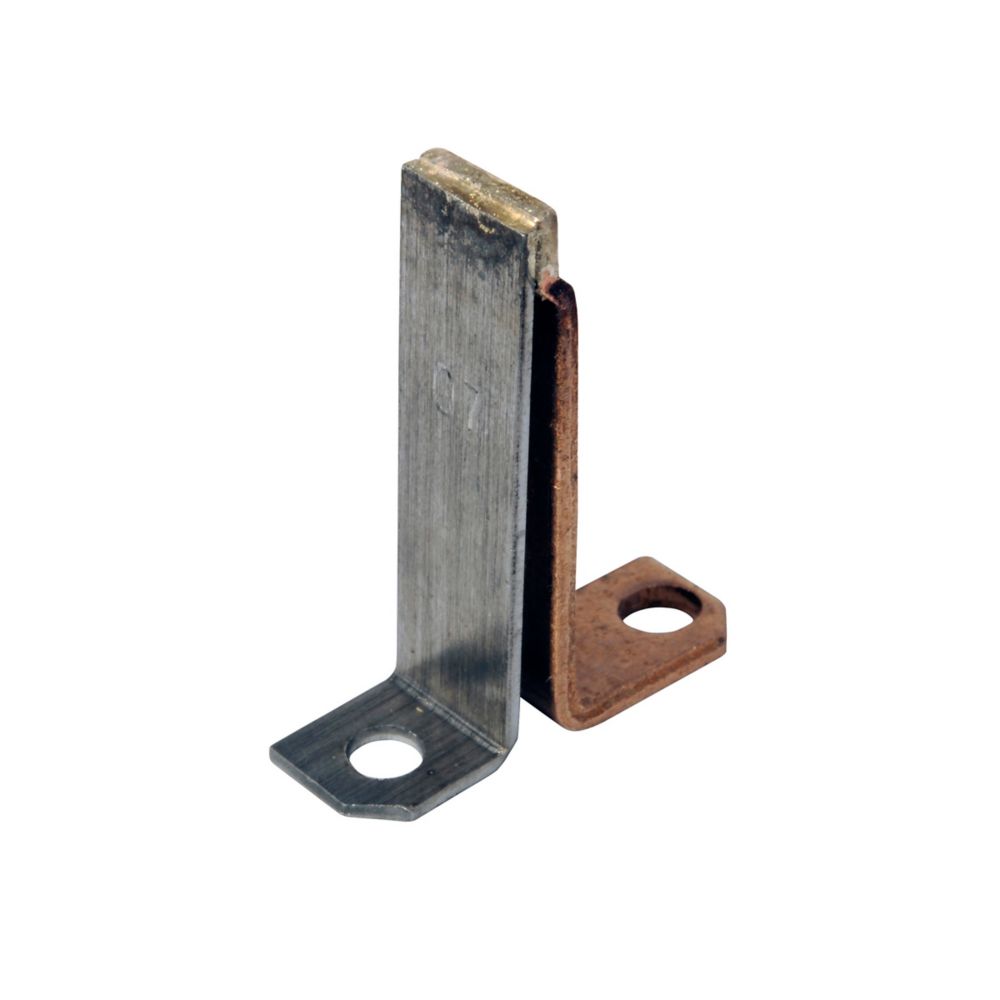

FH52 - Eaton Cutler Hammer - 31.4A A200/B100 Heater
The Eaton FH52 is built for NEMA Starter Sizes 1 and 2, offering ambient full-load current ranges of 26.3–28.7 A and 30.4–33.3 A, with non-compensated ranges of 24.4–26.6 A and 28.9–31.4 A. It operates with Type A and B overload relays and provides both thermal and fast-trip protection. Robust and compact, it adheres to NEMA design for reliable motor protection.
GENERAL SPECIFICATIONS
| Product Name |
Eaton A200/B100 heater
|
| Catalog Number |
FH52
|
| UPC |
786678670423
|
| Product Length/Depth |
0.21 in
|
| Product Height |
0.8 in
|
| Product Width |
1.3 in
|
| Product Weight |
0.03 lb
|
| Certifications |
UL Listed
CSA Certified |
| Catalog Notes |
Select heater coils based on full load current(FLA) shown on motor nameplate. Heater coils are rated to protect 40 degree C rise and a service factor of 1.15, Single-Phase requires 2 heaters, Three-Phase Requires 3 heaters.
|
| Global Catalog |
FH52
|
PRODUCT SPECIFICATIONS
| Special features |
Used with Starter Sizes 1, and 2
|
| Type |
A200/B100 Heater
|
| Used with |
Used with Starter Sizes 1, and 2
|
| Design |
NEMA
|
| Full load current range |
Ambient 26.3-28.7, 30.4-33.3 A, Non-Comp 24.4-26.6, 28.9-31.4 A
|
| Overload relay |
Type A and B
|
| Trip type |
Thermal and fast trip
|
