Description

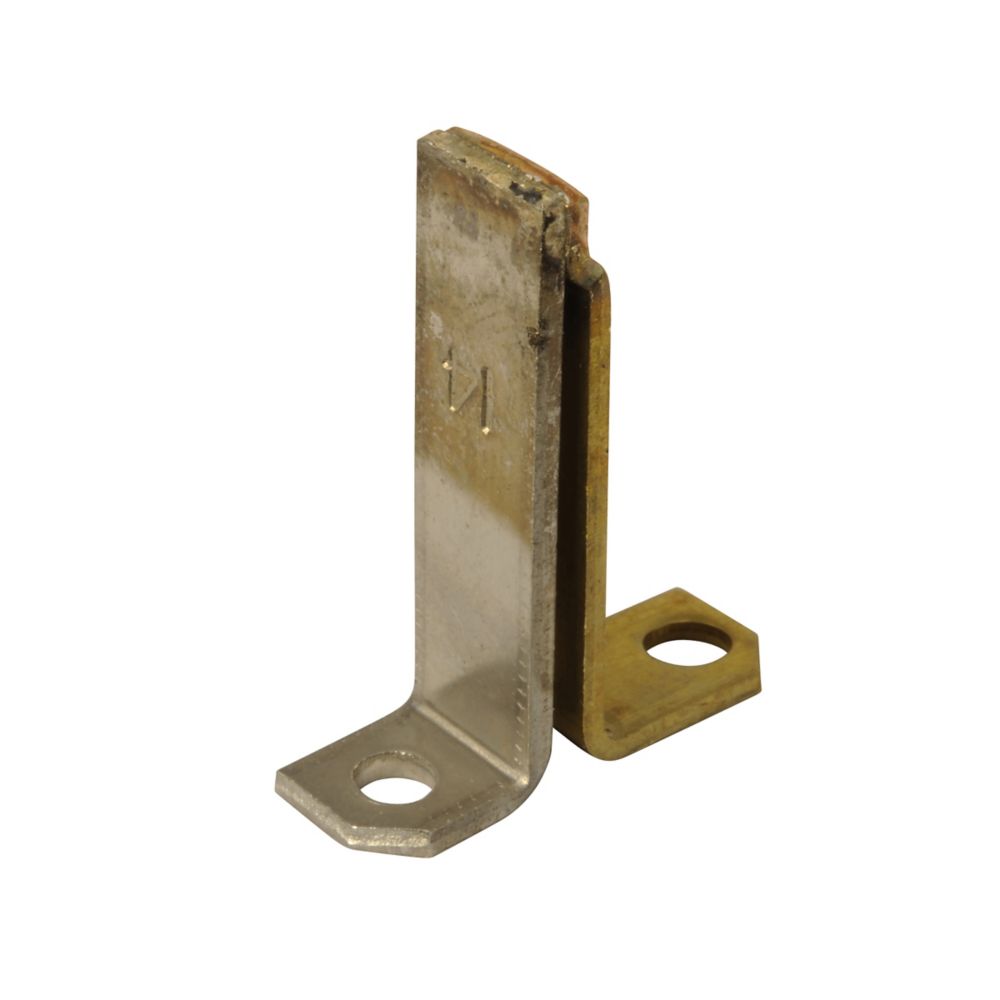

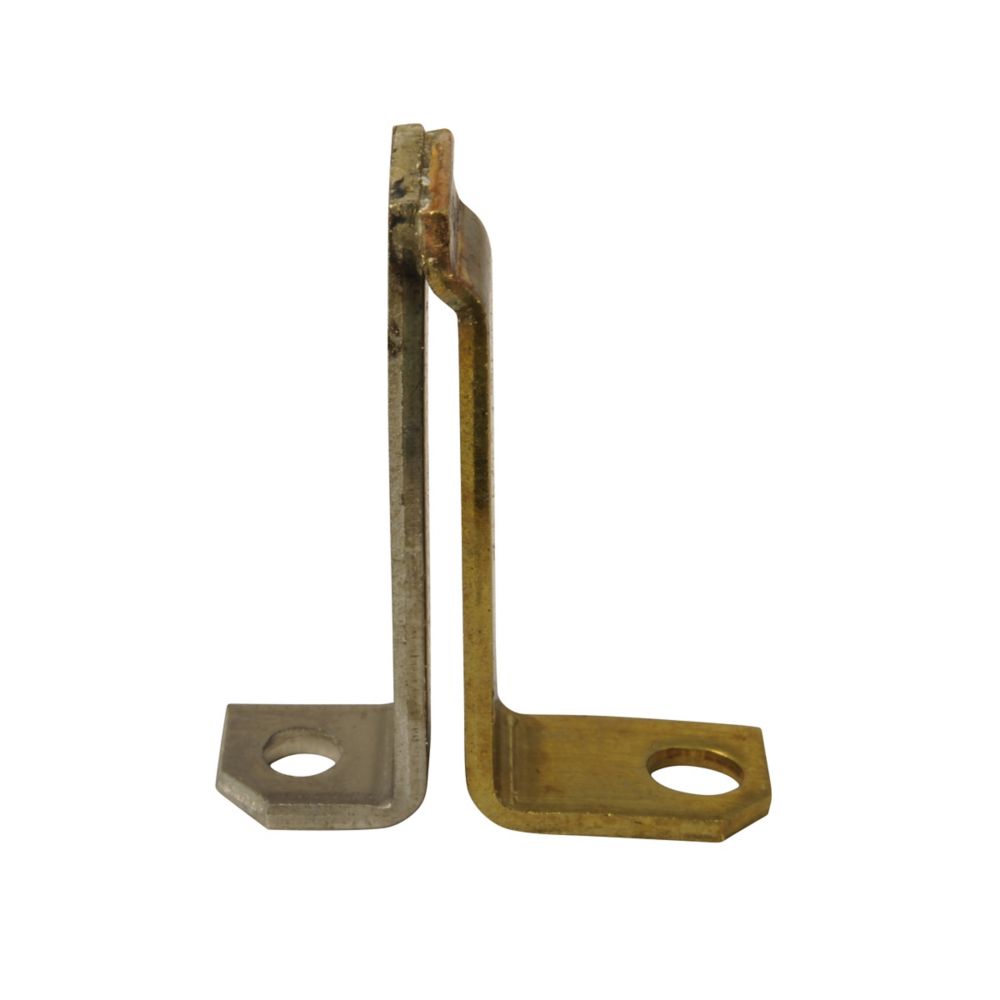

FH56 - Eaton Cutler Hammer - 45A A200/B100 Heater
Eaton A200/B100 heater, Used with Starter Size 2, A200/B100 Heater, NEMA, Ambient 38.0-415A, Non-Comp 35.3-38.5, 42.0-45.0A, Used with Starter Size 2, Type A and B, Thermal and Fast Trip.
GENERAL SPECIFICATIONS
| Product Name |
Eaton A200/B100 heater
|
| Catalog Number |
FH56
|
| UPC |
786678670546
|
| Product Length/Depth |
2.1 in
|
| Product Height |
0.8 in
|
| Product Width |
1.3 in
|
| Product Weight |
0.03 lb
|
| Certifications |
UL Listed
CSA Certified |
| Catalog Notes |
Select heater coils based on full load current(FLA) shown on motor nameplate. Heater coils are rated to protect 40 degree C rise and a service factor of 1.15, Single-Phase requires 2 heaters, Three-Phase Requires 3 heaters
|
| Global Catalog |
FH56
|
| Product Type |
Heater
|
PRODUCT SPECIFICATIONS
| Special features |
Used with Starter Size 2
|
| Type |
A200/B100 Heater
|
| Used with |
Used with Starter Size 2
|
| Design |
NEMA
|
| Full load current range |
Ambient 38.0-415 A, Non-Comp 35.3-38.5, 42.0-45.0 A
|
| Overload relay |
Type A and B
|
| Trip type |
Thermal and fast trip
|
