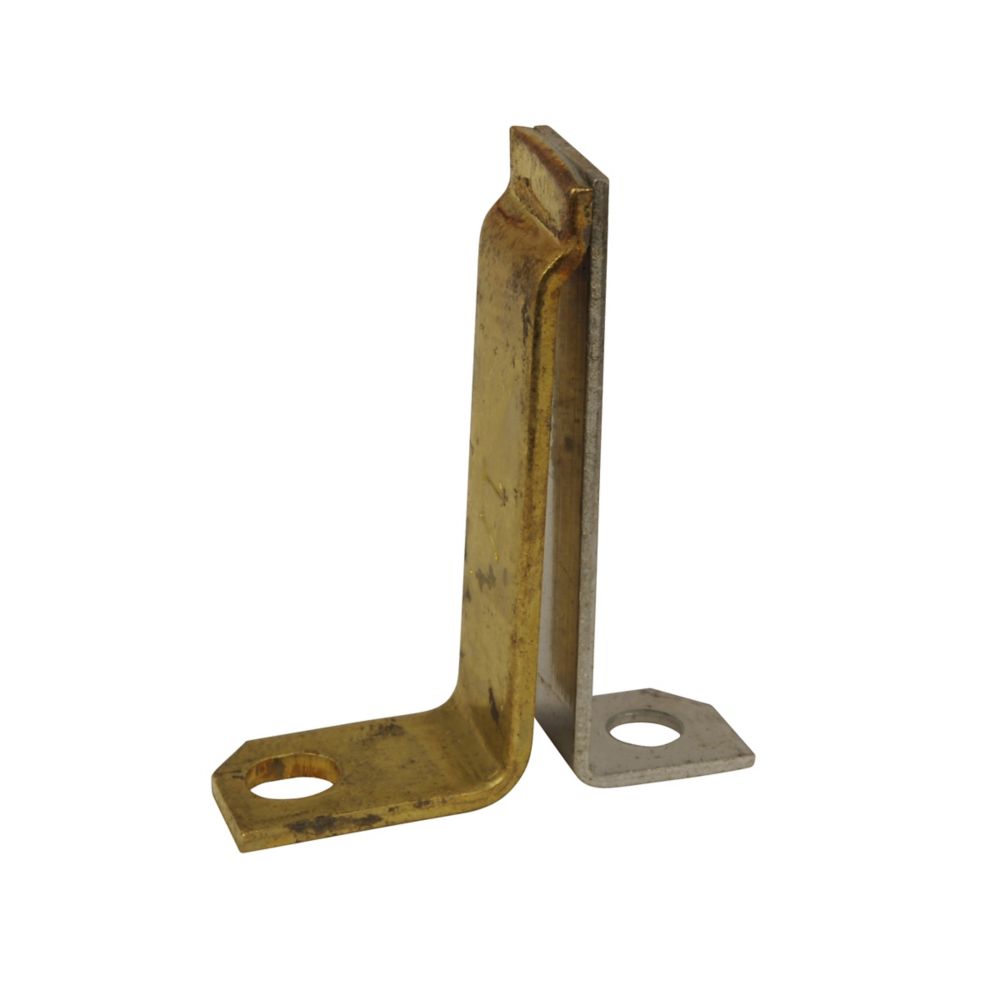

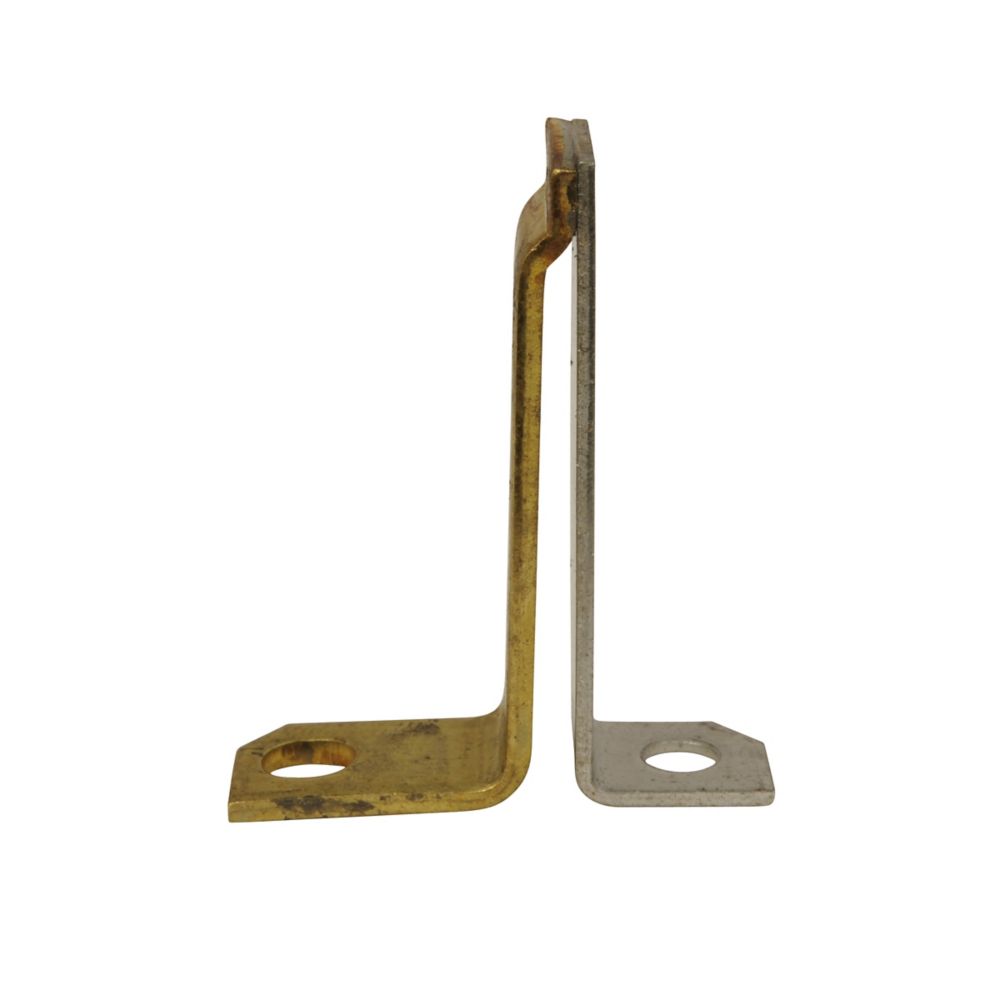

FH57 - Eaton Cutler Hammer - 45A A200/B100 Heater
The Eaton FH57 for NEMA Starter Size 2 supports ambient full-load currents between 41.6–45 A, with non-compensated ratings of 38.6 - 42.3 A. It offers Type A and B overload relay protection and both thermal and fast-trip functionality. Engineered for robust motor protection in demanding industrial control environments.
GENERAL SPECIFICATIONS
| Product Name |
Eaton A200/B100 heater
|
| Catalog Number |
FH57
|
| UPC |
786678670577
|
| Product Length/Depth |
2.1 in
|
| Product Height |
0.8 in
|
| Product Width |
1.3 in
|
| Product Weight |
0.03 lb
|
| Certifications |
UL Listed
CSA Certified |
| Catalog Notes |
Select heater coils based on full load current(FLA) shown on motor nameplate. Heater coils are rated to protect 40 degree C rise and a service factor of 1.15, Single-Phase requires 2 heaters, Three-Phase Requires 3 heaters
|
| Global Catalog |
FH57
|
PRODUCT SPECIFICATIONS
| Special features |
Used with Starter Size 2
|
| Type |
A200/B100 Heater
|
| Used with |
Used with Starter Size 2
|
| Design |
NEMA
|
| Full load current range |
Ambient 41.6-45 A, Non-Comp 38.6-42.3 A
|
| Overload relay |
Type A and B
|
| Trip type |
Thermal and fast trip
|
