Description

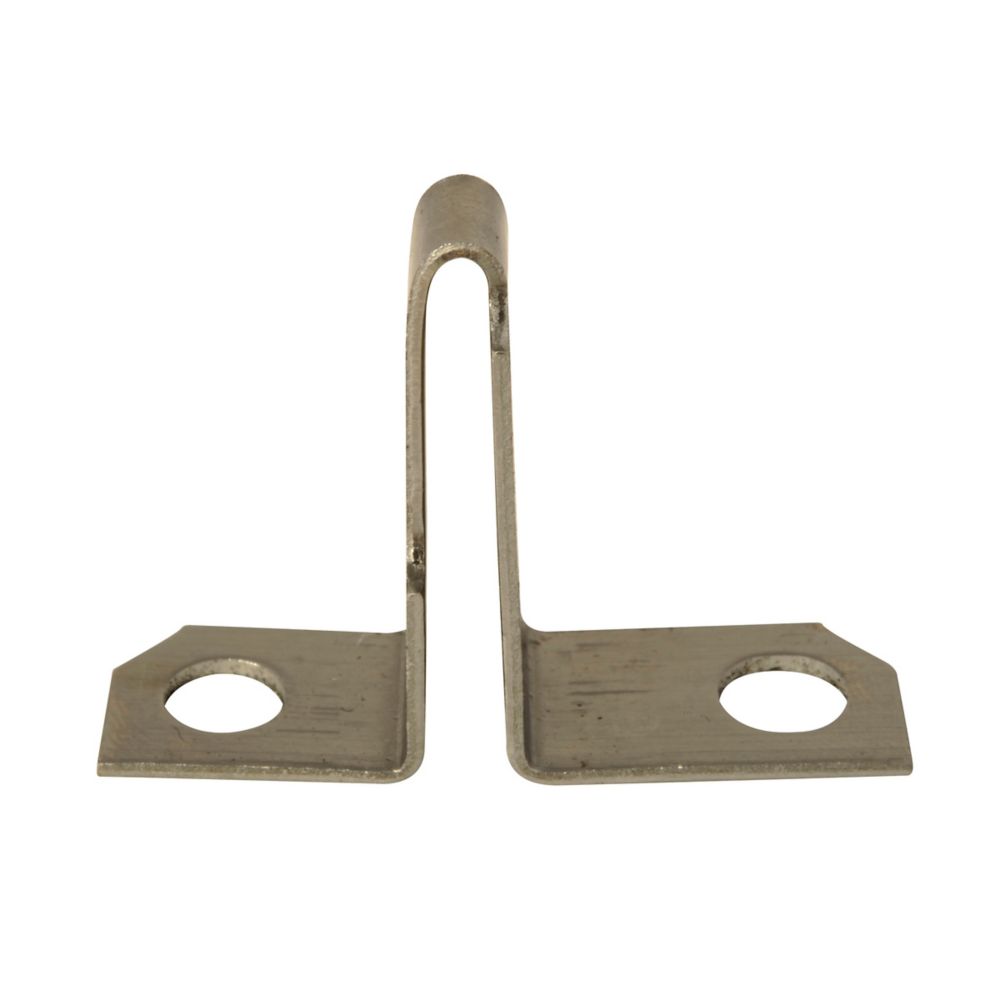

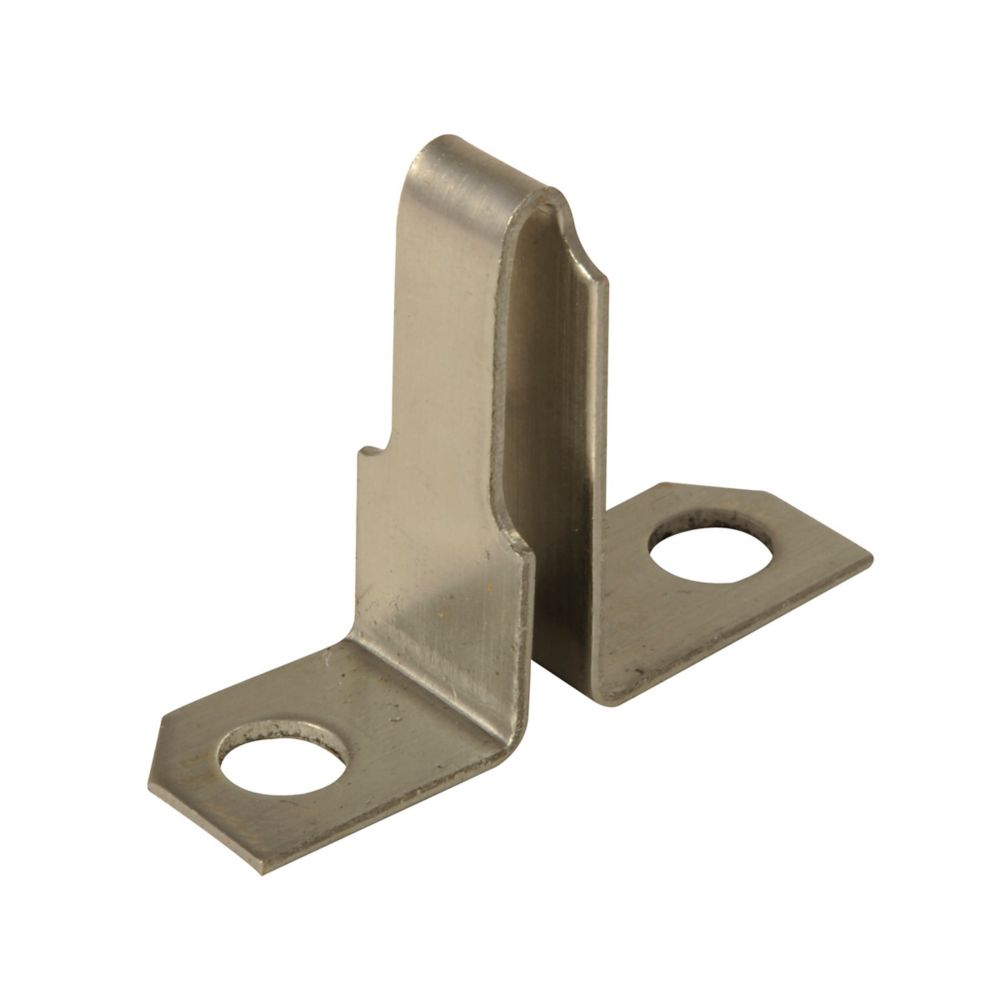

FH79 - Eaton Cutler Hammer - 41.5A A200/B100 heater
The Eaton FH79 A200/B100 heater, for NEMA Starter Sizes 3 and 4 (3-Phase only), delivers ambient full-load current support between 37.6–41.5 A and non-compensated values of 34.6–38.2 A. It operates with Type A and B overload relays, providing both thermal and fast-trip protection mechanisms. Slim and UL/CSA-certified, FH79 is ideal for compact yet robust industrial control systems.
GENERAL SPECIFICATIONS
| Product Name |
Eaton A200/B100 heater
|
| Catalog Number |
FH79
|
| UPC |
786678670812
|
| Product Length/Depth |
2.1 in
|
| Product Height |
0.8 in
|
| Product Width |
1.3 in
|
| Product Weight |
0.04 lb
|
| Certifications |
UL Listed
CSA Certified |
| Catalog Notes |
Select heater coils based on full load current(FLA) shown on motor nameplate. Heater coils are rated to protect 40 degree C rise and a service factor of 1.15, Single-Phase requires 2 heaters, Three-Phase Requires 3 heaters
|
| Global Catalog |
FH79
|
PRODUCT SPECIFICATIONS
| Special features |
Used with A200 Starter Sizes 3 & 4, 3-Phase Only
|
| Type |
A200 Heater
|
| Used with |
Used with A200 Starter Sizes 3 & 4, 3-Phase Only
|
| Design |
NEMA
|
| Full load current range |
Ambient 37.6-41.5 A, Non-Comp 34.6-38.2 A
|
| Overload relay |
Type A and B
|
| Trip type |
Thermal and fast trip
|
