Description

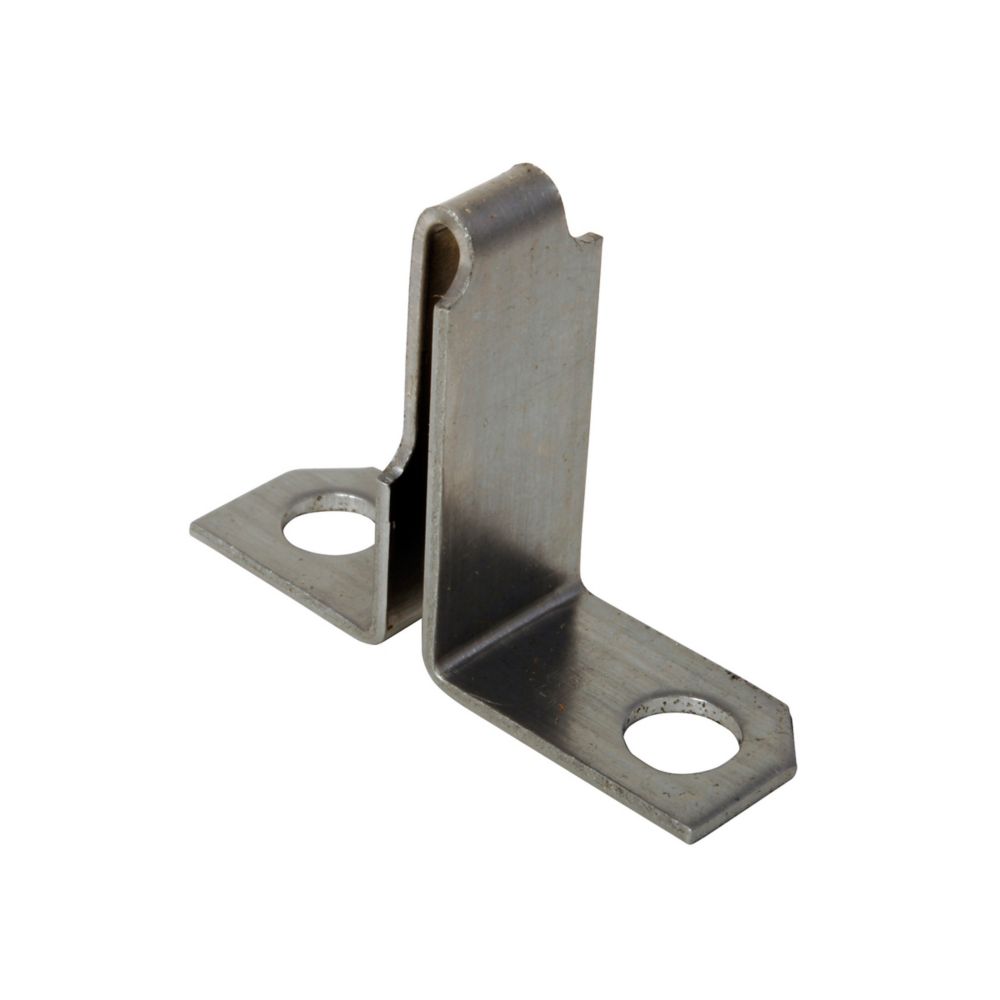

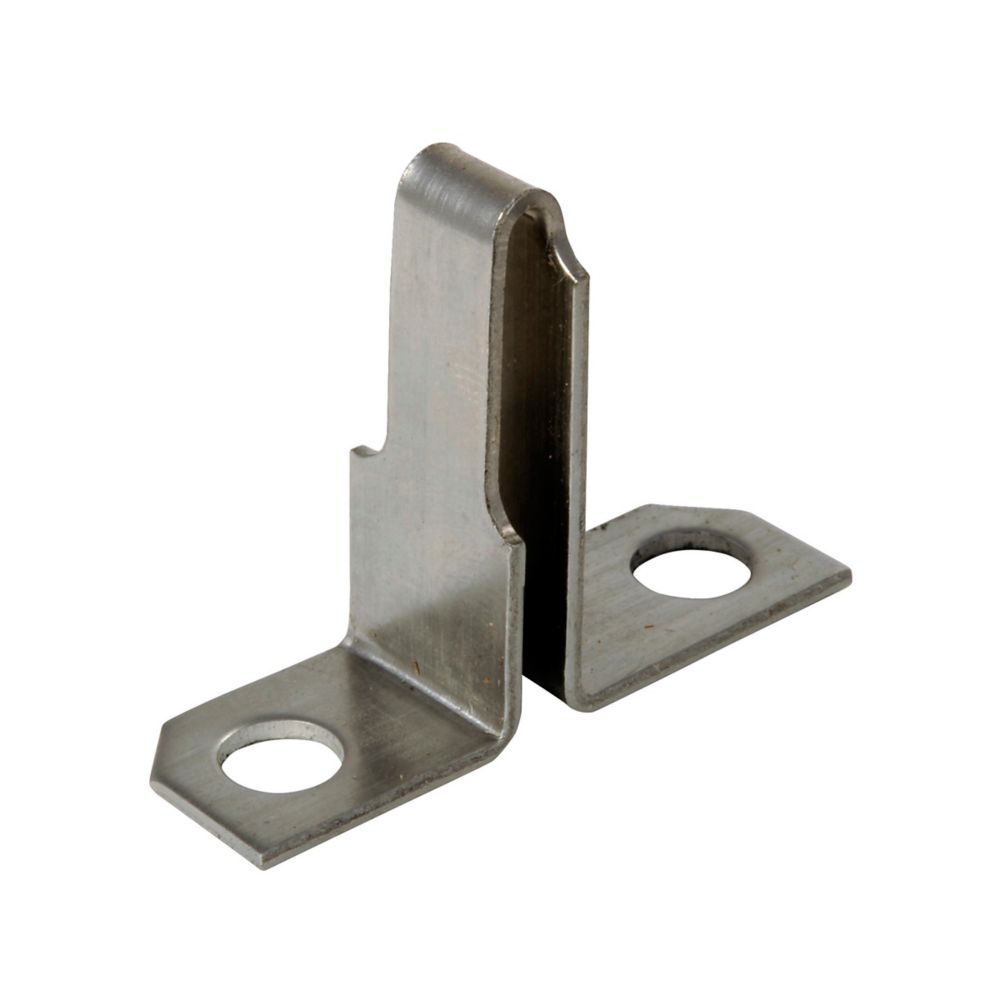

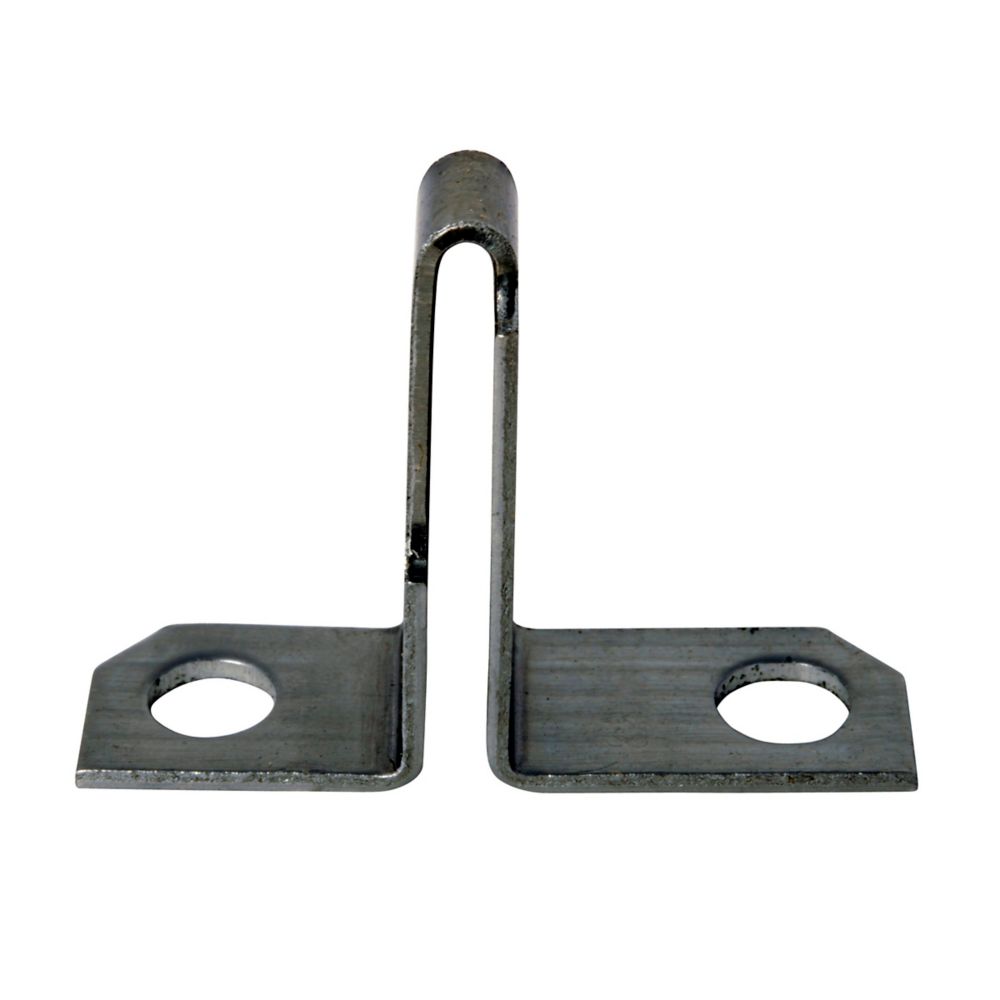

FH80 - Eaton Cutler Hammer - 56.3A A200/B100 heater
The Eaton FH80 heater, used with NEMA Starter Sizes 3 and 4 (3-Phase only), covers ambient full-load current ranges from approximately 41.6–56.3 A, with non-compensated spans of 38.3–42.6 A. It features Type A and B overload relays with thermal and fast-trip functionality for dependable motor protection. Compact and UL/CSA-certified, FH80 supports precise overload management in mid-to-high current environments.
GENERAL SPECIFICATIONS
| Product Name |
Eaton A200/B100 heater
|
| Catalog Number |
FH80
|
| UPC |
786678670843
|
| Product Length/Depth |
1.9 in
|
| Product Height |
0.8 in
|
| Product Width |
1.4 in
|
| Product Weight |
0.04 lb
|
| Certifications |
CSA Certified
UL Listed |
| Catalog Notes |
Select heater coils based on full load current(FLA) shown on motor nameplate. Heater coils are rated to protect 40 degree C rise and a service factor of 1.15, Single-Phase requires 2 heaters, Three-Phase Requires 3 heaters
|
| Global Catalog |
FH80
|
PRODUCT SPECIFICATIONS
| Special features |
Used with A200 Starter Sizes 3 & 4, 3-Phase Only
|
| Type |
A200 Heater
|
| Used with |
Used with A200 Starter Sizes 3 & 4, 3-Phase Only
|
| Design |
NEMA
|
| Full load current range |
Ambient 41.6-56.3 A, Non-Comp 38.3-42.6 A
|
| Overload relay |
Type A and B
|
| Trip type |
Thermal and fast trip
|
PRODUCT DATASHEET
