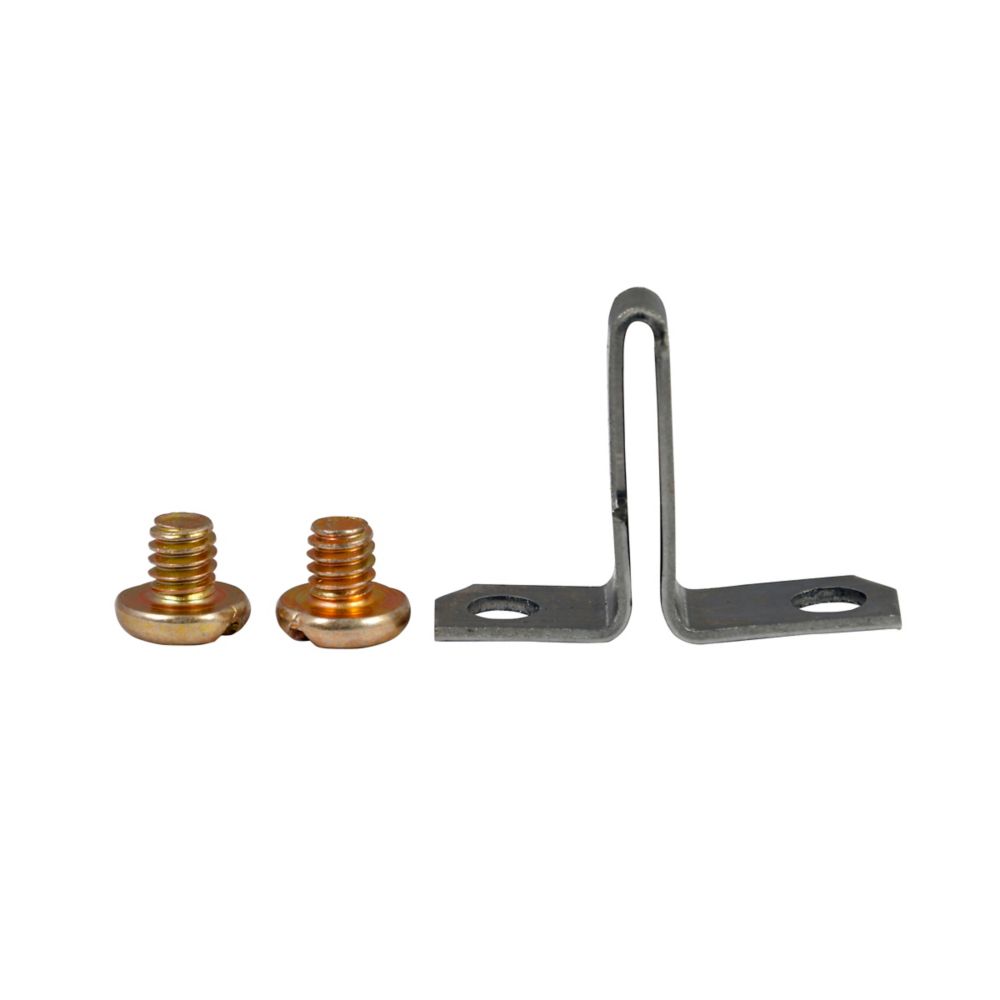

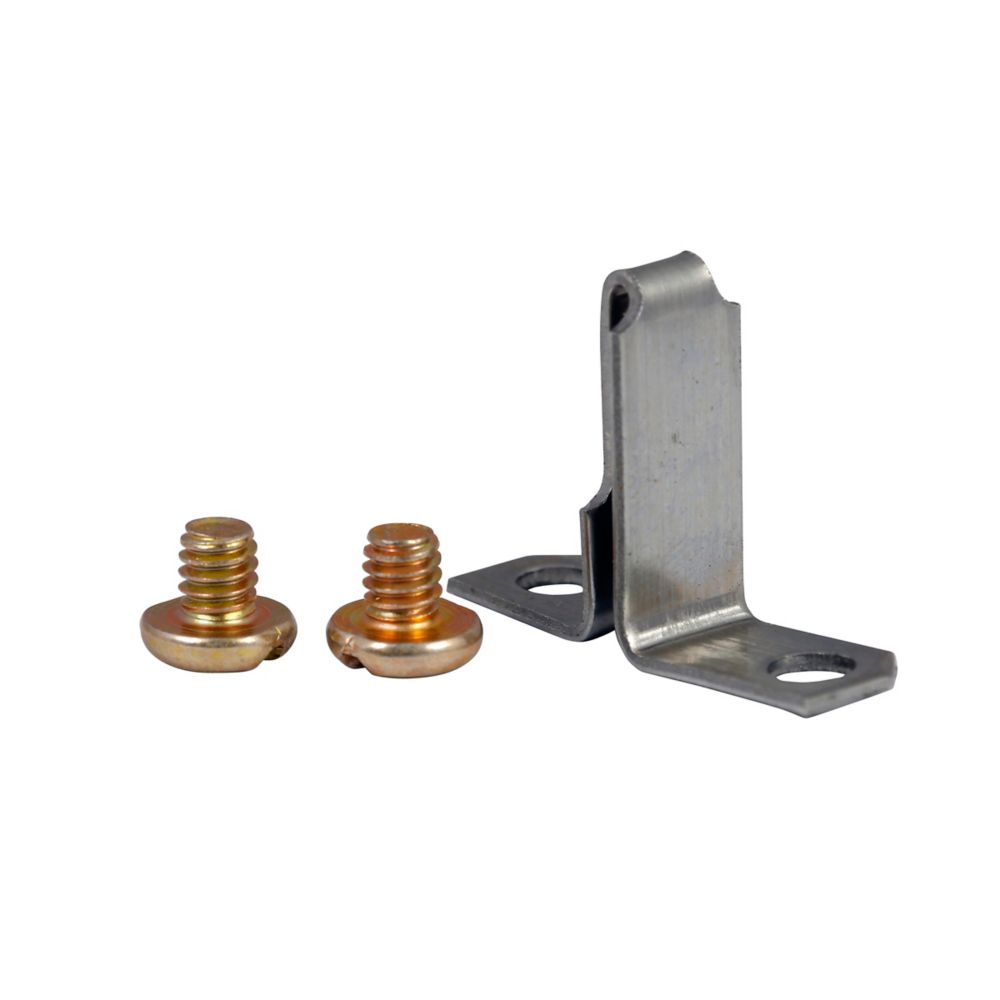

FH82 - Eaton Cutler Hammer - 55A A200/B100 heater
The Eaton FH82 heater is intended for NEMA Starter Sizes 3 and 4 (3-Phase only), offering ambient full-load current support of 51–55 A, with non-compensated coverage between 47–51 A. It incorporates Type A and B overload relays, delivering both thermal and fast-trip protection. Compact, UL-listed, and CSA-certified, FH82 is ideal for controlling higher-current motor circuits in compact starter applications.
GENERAL SPECIFICATIONS
| Product Name |
Eaton A200/B100 heater
|
| Catalog Number |
FH82
|
| UPC |
786678670904
|
| Product Length/Depth |
2.1 in
|
| Product Height |
0.8 in
|
| Product Width |
1.3 in
|
| Product Weight |
0.05 lb
|
| Certifications |
UL Listed
CSA Certified |
| Catalog Notes |
Select heater coils based on full load current(FLA) shown on motor nameplate. Heater coils are rated to protect 40 degree C rise and a service factor of 1.15, Single-Phase requires 2 heaters, Three-Phase Requires 3 heaters
|
| Global Catalog |
FH82
|
PRODUCT SPECIFICATIONS
| Special features |
Used with A200 Starter Sizes 3 & 4, 3-Phase Only
|
| Type |
A200 Heater
|
| Used with |
Used with A200 Starter Sizes 3 & 4, 3-Phase Only
|
| Design |
NEMA
|
| Full load current range |
Ambient 51-55 A, Non-Comp 47- 51 A
|
| Overload relay |
Type A and B
|
| Trip type |
Thermal and fast trip
|
