Description

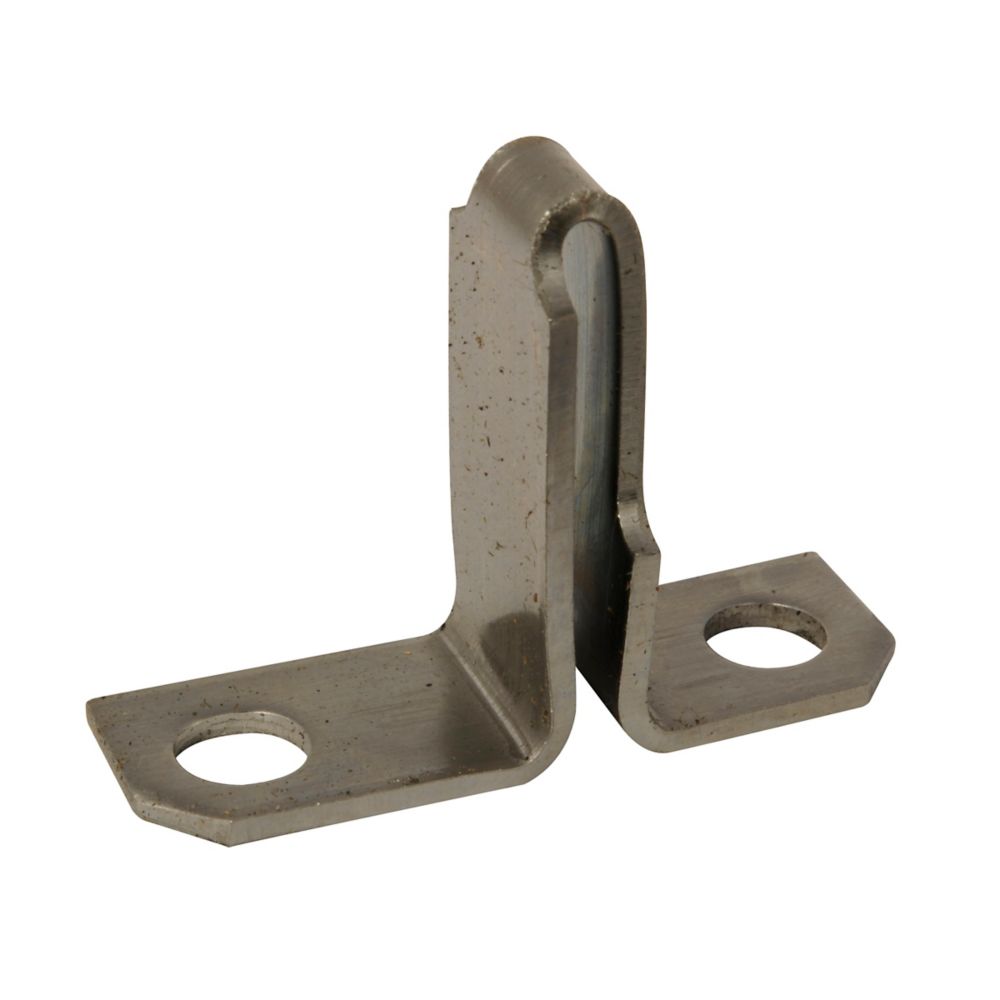

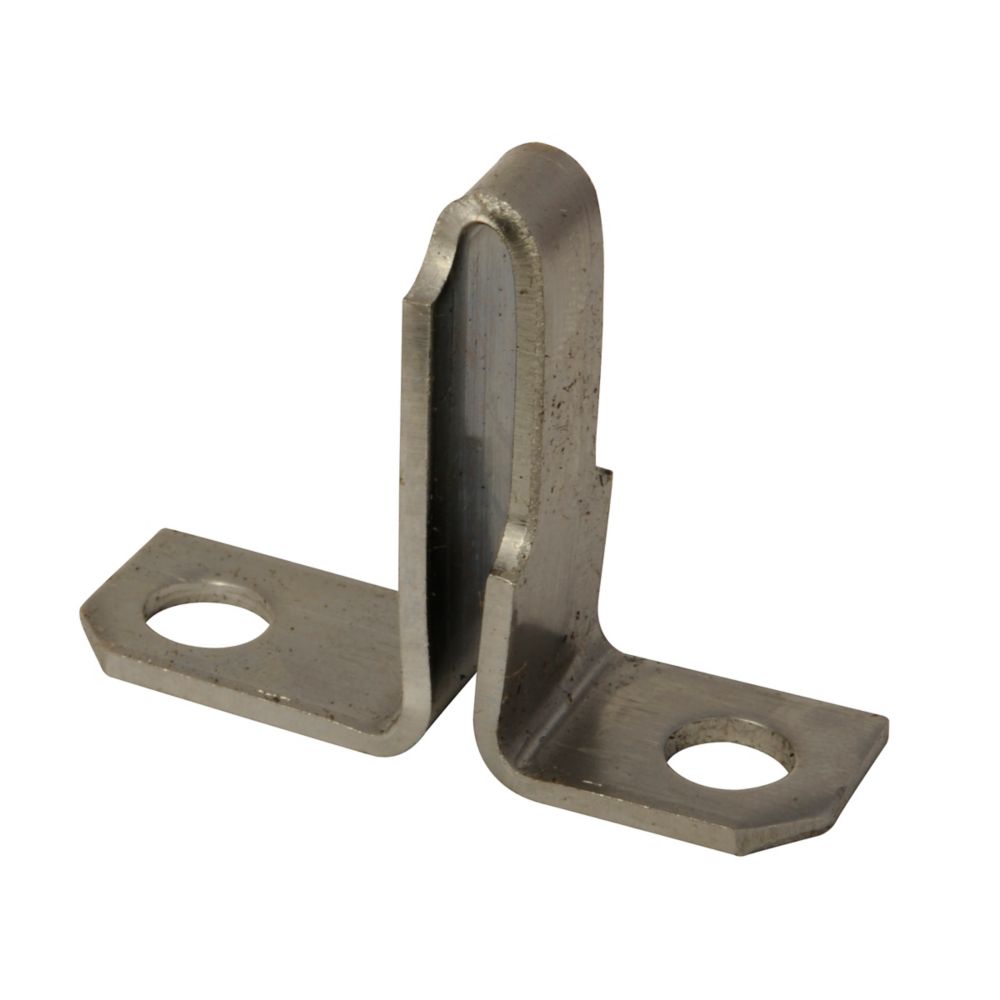

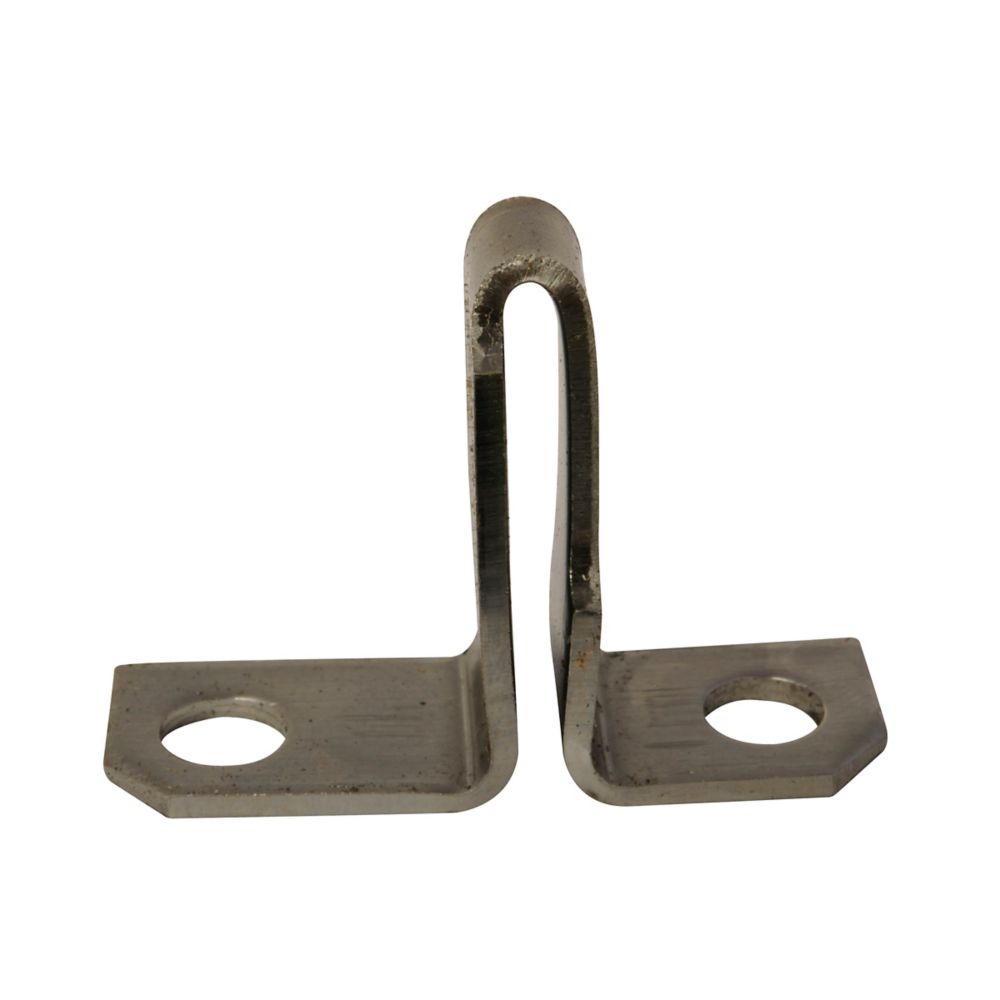

FH83 - Eaton Cutler Hammer - 56A A200/B100 heater
The Eaton FH83 A200/B100 heater is designed for NEMA Starter Sizes 3 and 4 (three-phase only), delivering ambient full-load current coverage from approximately 56–61 A with non-compensated ranges of 52–56 A. It offers dependable motor overload protection using Type A and B relays with both thermal and fast-trip functionality, all in a compact UL-listed and CSA-certified NEMA design.
GENERAL SPECIFICATIONS
| Product Name |
Eaton A200/B100 heater
|
| Catalog Number |
FH83
|
| UPC |
786678670935
|
| Product Length/Depth |
2.3 in
|
| Product Height |
1.3 in
|
| Product Width |
1.8 in
|
| Product Weight |
0.06 lb
|
| Certifications |
UL Listed
CSA Certified |
| Catalog Notes |
Select heater coils based on full load current(FLA) shown on motor nameplate. Heater coils are rated to protect 40 degree C rise and a service factor of 1.15, Single-Phase requires 2 heaters, Three-Phase Requires 3 heaters
|
| Global Catalog |
FH83
|
PRODUCT SPECIFICATIONS
| Special features |
Used with A200 Starter Sizes 3 & 4, 3-Phase Only
|
| Type |
A200 Heater
|
| Used with |
Used with A200 Starter Sizes 3 & 4, 3-Phase Only
|
| Design |
NEMA
|
| Full load current range |
Ambient 56-61 A, Non-Comp 52-56 A
|
| Overload relay |
Type A and B
|
| Trip type |
Thermal and fast trip
|
